ASCD Steering Switch

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.
    COMBINATION SWITCH (SPIRAL CABLE) RESISTANCE

    Switch Condition Resistance [Ω]
    MAIN switch Pressed Approx. 0
    Released Approx. 4, 000
    CANCEL switch Pressed Approx. 250
    Released Approx. 4, 000
    RESUME/ACCELERATE switch Pressed Approx. 1, 480
    Released Approx. 4, 000
    SET/COAST switch Pressed Approx. 660
    Released Approx. 4, 000

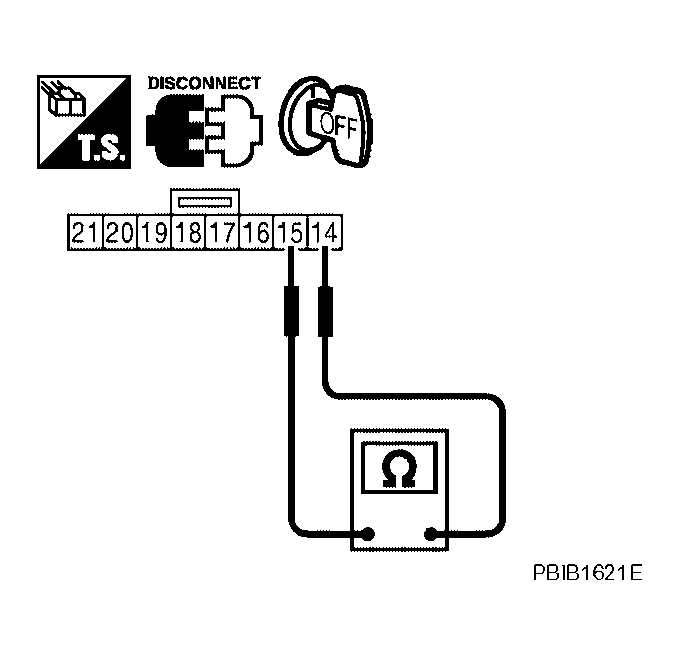

    Fig 1: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15
    G04197023Courtesy of NISSAN MOTOR CO., U.S.A.
