7. Check Function Of Injectors

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

WITH CONSULT-II

Start engine.
Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
Make sure that each circuit produces a momentary engine speed drop.

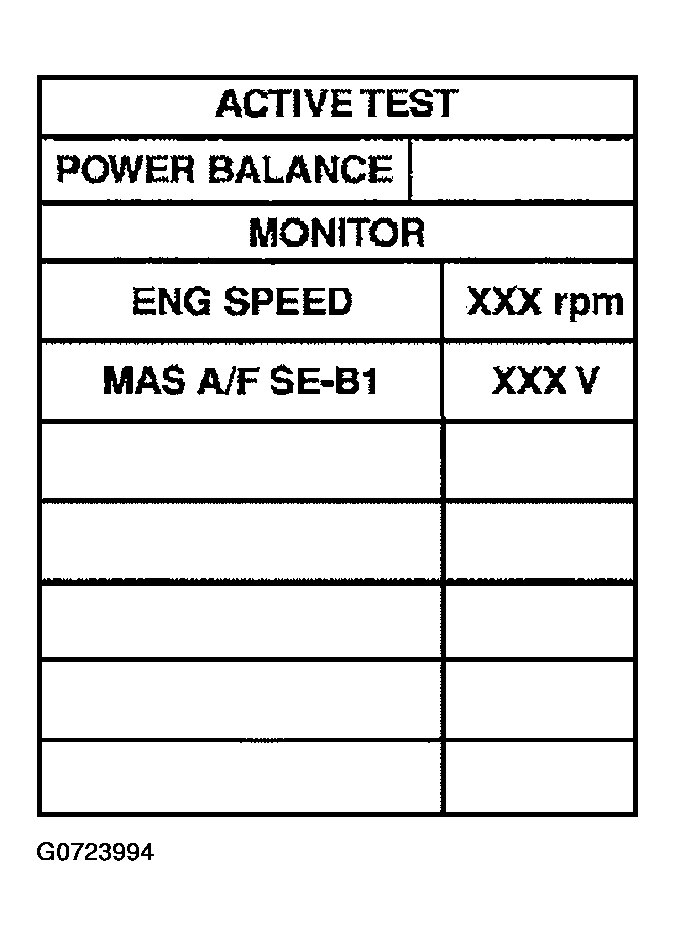

Fig 1: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Start engine.
Listen to each injector operating sound.
1. Clicking noise should be heard.

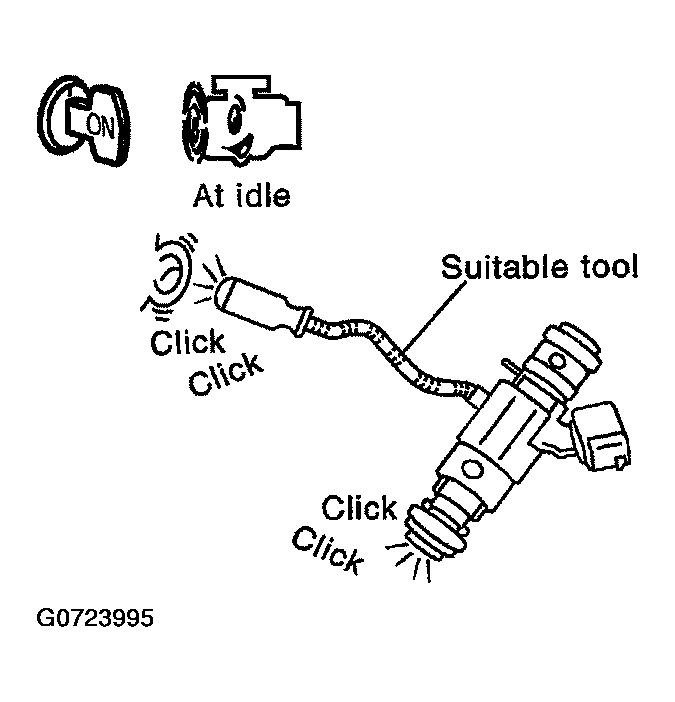

Fig 2: Check Function Of Injectors (Without CONSULT-II)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 8.

NG: Perform trouble diagnosis for "INJECTOR CIRCUIT ".
