With Consult-II

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON.
  4. Select "DATA MONITOR" mode with CONSULT-II.

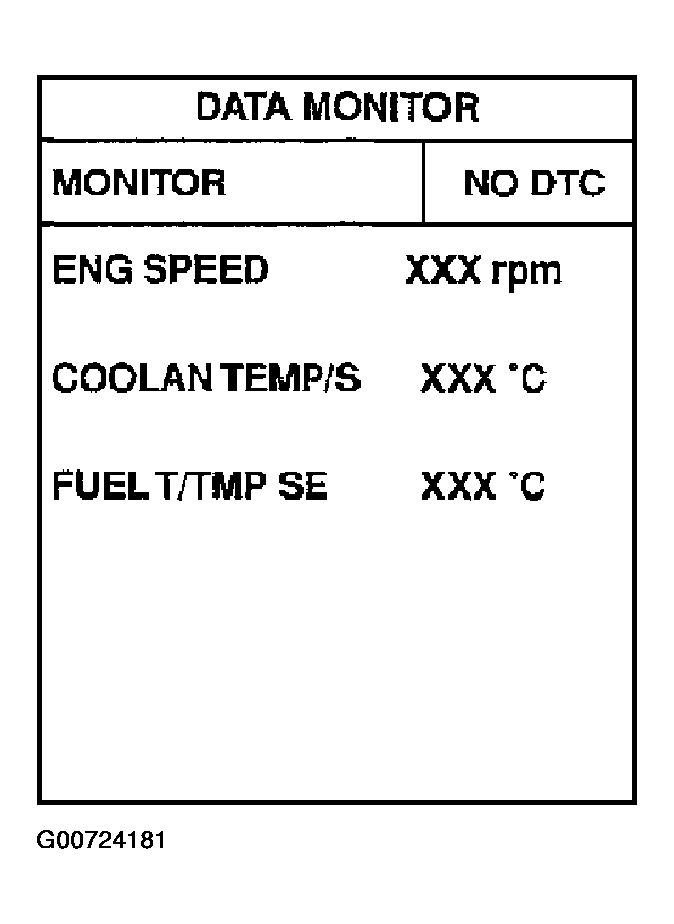

    Fig 1: CONSULT-II Display Screen
    G00724181Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Make sure that "FUEL T/TEMP SE" is more than 0°C (32°F).
  6. Start engine and wait at least 20 seconds.
  7. If 1st trip DTC is detected, go to "Diagnostic Procedure ".
