5. Check Throttle Control Motor Relay Power Supply Circuit-I

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Reconnect all harness connectors disconnected.
Check voltage between ECM terminal 104 and ground with CONSULT-II or tester.
1. Voltage: Battery voltage

OK or NG

OK: GO TO 9 .

NG: GO TO 6.

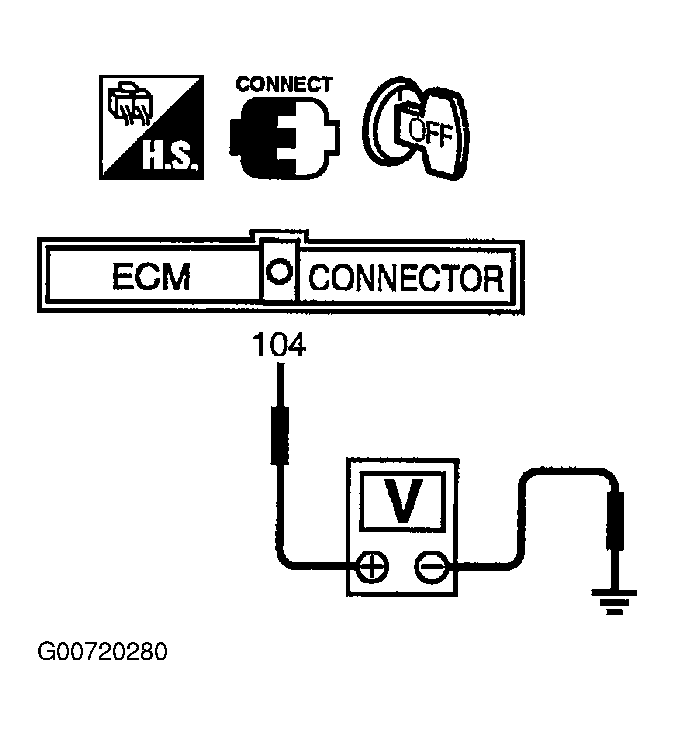

Fig 1: Checking Throttle Control Motor Relay Power Supply Circuit-I

Courtesy of NISSAN MOTOR CO., U.S.A.
