5. Check Throttle Control Motor Relay Input Signal Circuit-I

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between ECM terminal 3 and ground under the following conditions with CONSULT-II or tester.

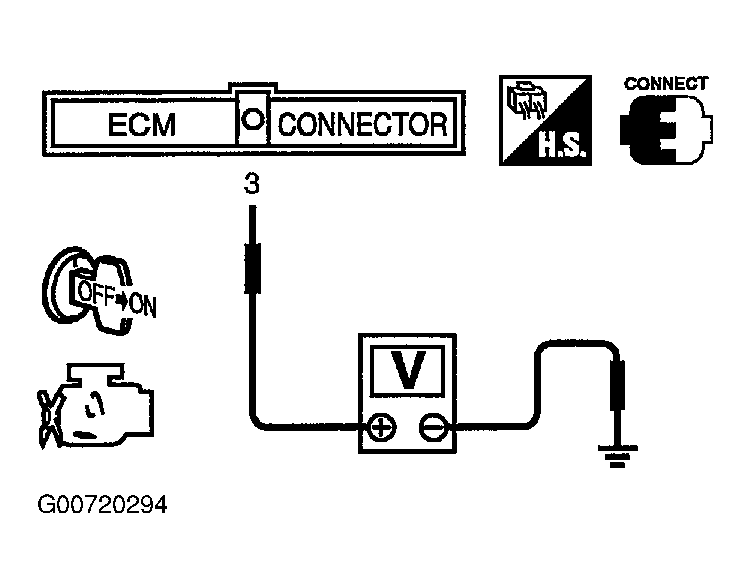

Fig 1: Checking Throttle Control Motor Relay Input Signal Circuit-I

Courtesy of NISSAN MOTOR CO., U.S.A.

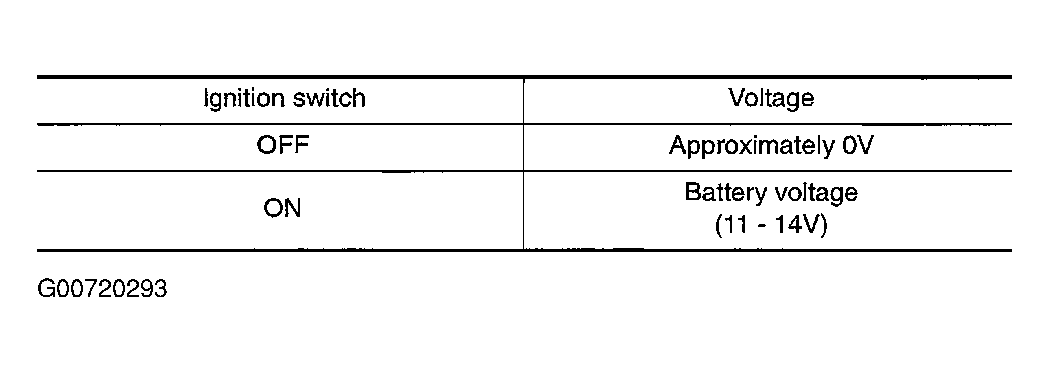

Fig 2: Throttle Control Motor Relay Input Signal Circuit-I Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 8 .

NG: GO TO 6.
