2. Check Overall Function-II

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

WITH CONSULT-II

Check "BRAKE SW2" indication in "DATA MONITOR" mode.

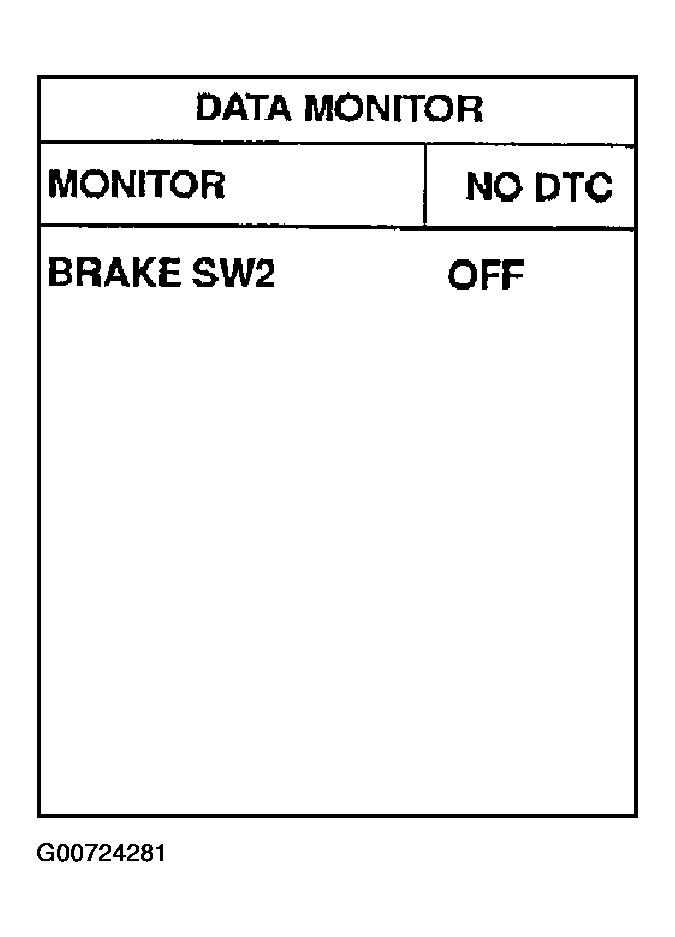

Fig 1: CONSULT-II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

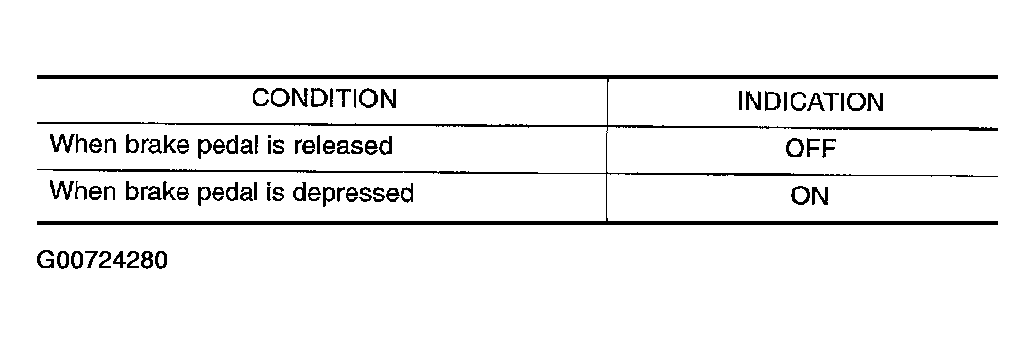

Fig 2: Checking "BRAKE SW2"

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between ECM terminal 101 and ground under the following conditions.

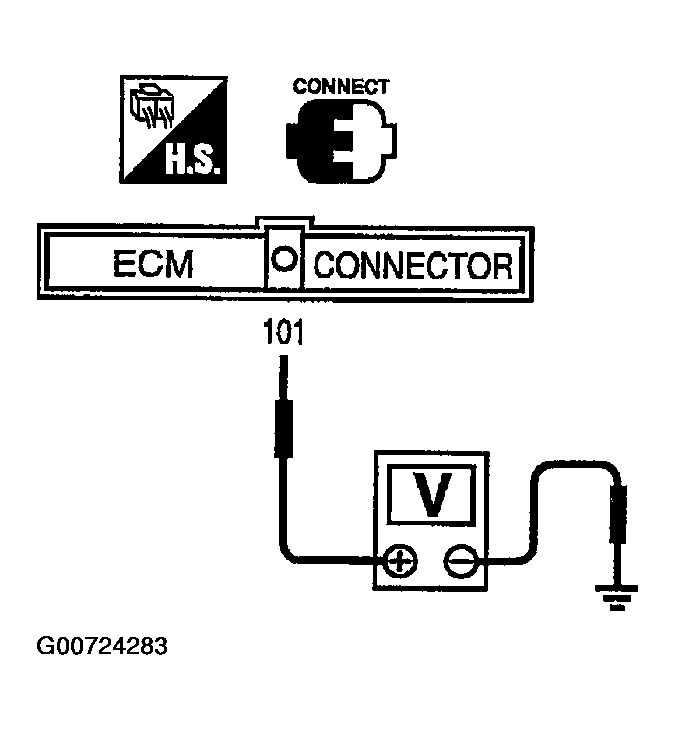

Fig 3: Checking "BRAKE SW2" Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

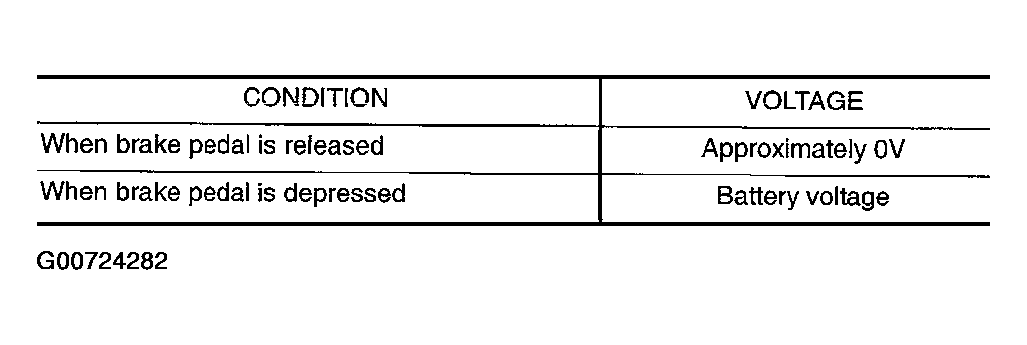

Fig 4: Checking "BRAKE SW2" Voltage Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 13.

NG: GO TO 8.
