Diagnostic Trouble Code (DTC) Confirmation Procedure
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
- Turn ignition switch ON.

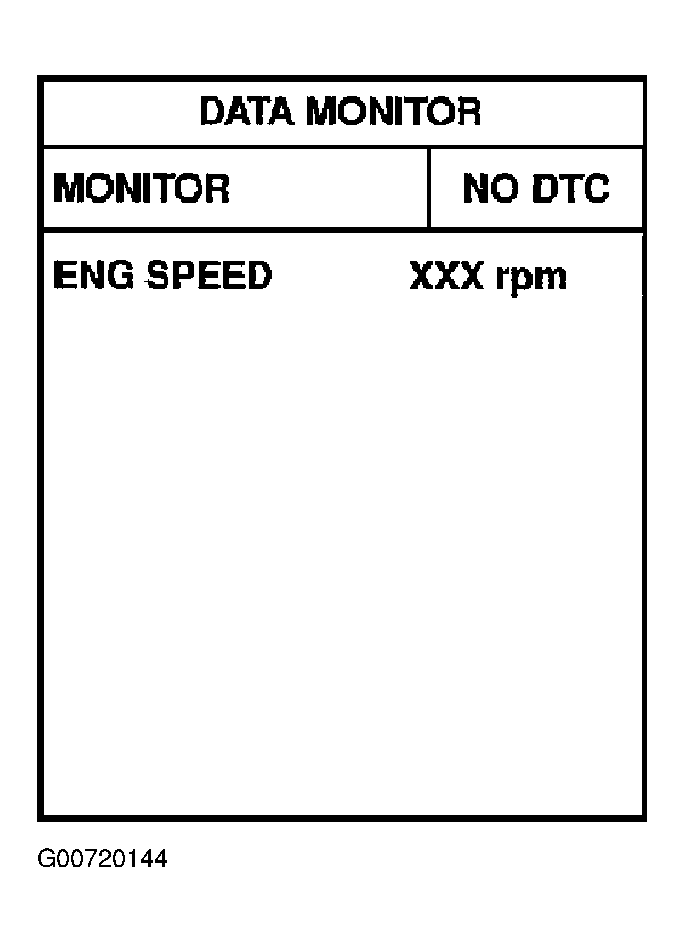

- Select "DATA MONITOR" mode with CONSULT-II. See Figure.
- Start engine and let it idle for 1 second.
- If DTC is detected, go to "Diagnostic Procedure ".
WITH GST
Follow the procedure "WITH CONSULT-II" above.
