2. Check Load Signal Circuit Overall Function-II

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check "LOAD SIGNAL" indication under the following conditions.

Fig 1: CONSULT-II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

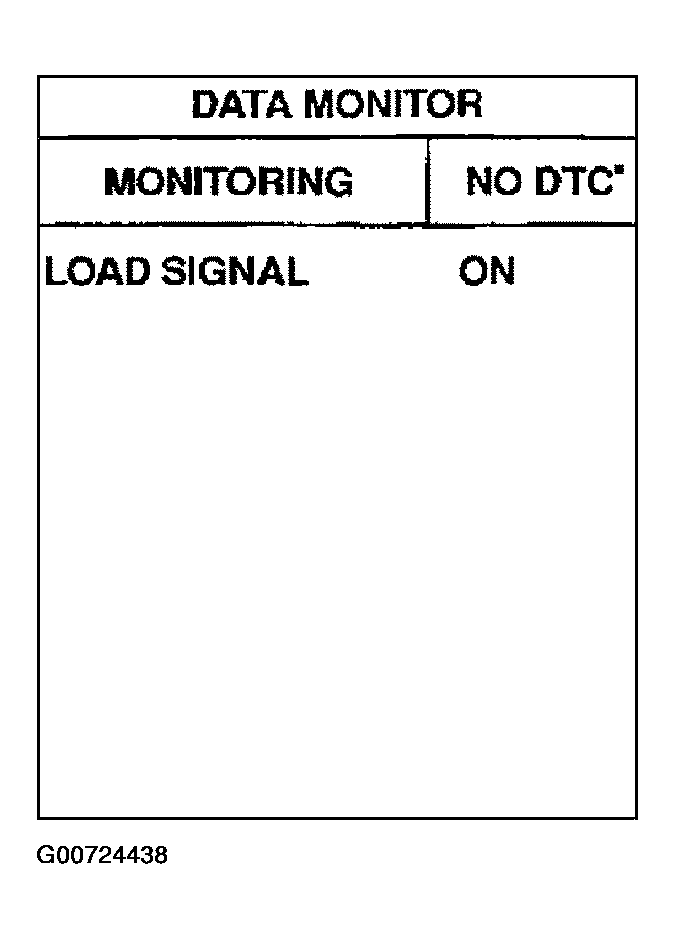

Fig 2: "DATA MONITOR" Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: INSPECTION END

NG: GO TO 4.
