Summary Chart

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1.

For details about patterns B and C under "Fuel Injection System" and "Misfire", see EXPLANATION FOR DRIVING PATTERNS FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >", "FUEL INJECTION SYSTEM" .

For details about patterns A and B under "Other", see EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR "MISFIRE < EXHAUST QUALITY DETERIORATION >", "FUEL INJECTION SYSTEM" .

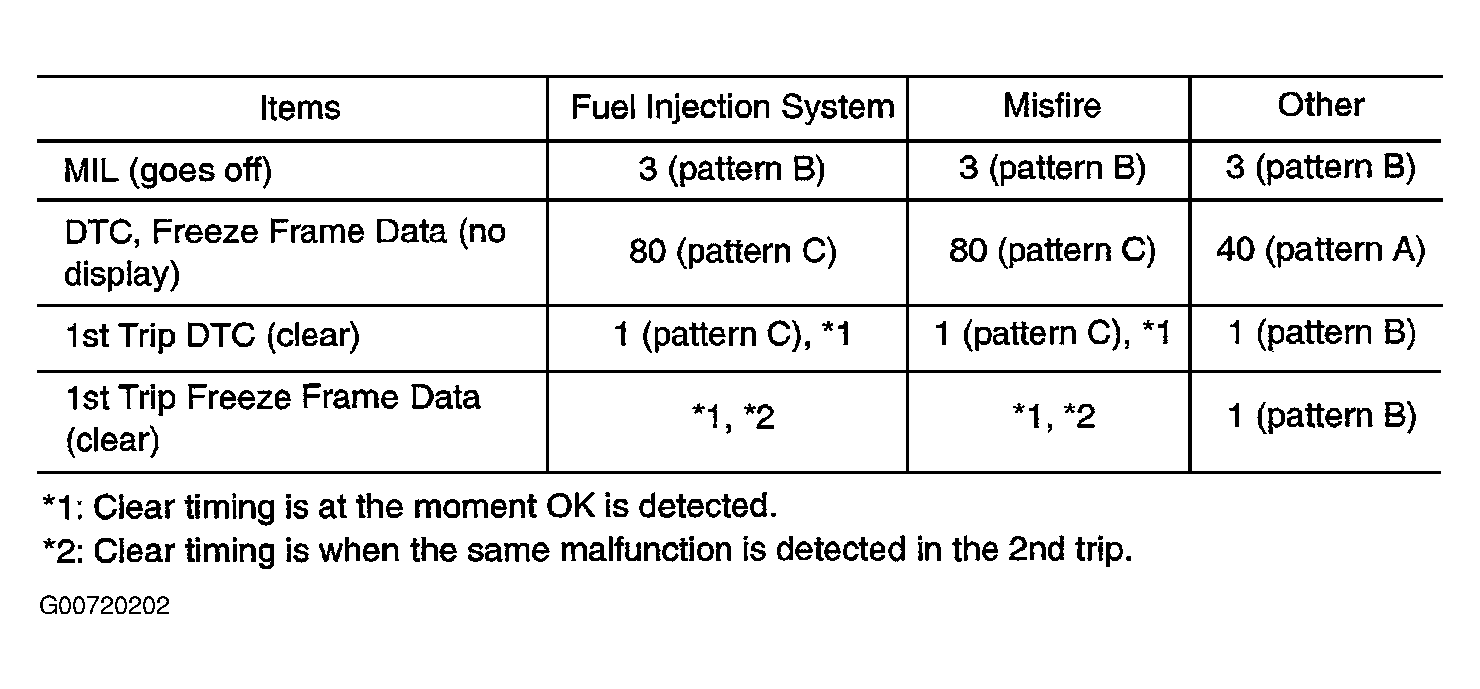

Fig 1: Summary Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
