With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check the operation with "MIRROR MOTOR LH" in the ACTIVE TEST.

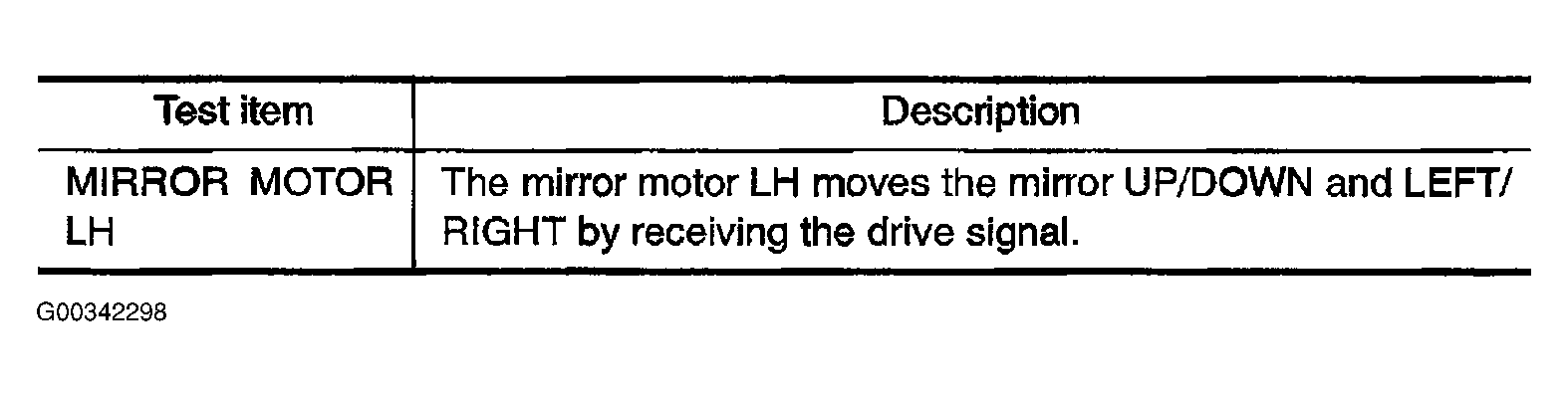

Fig 1: Active Test Chart
G00342298Courtesy of NISSAN MOTOR CO., U.S.A.

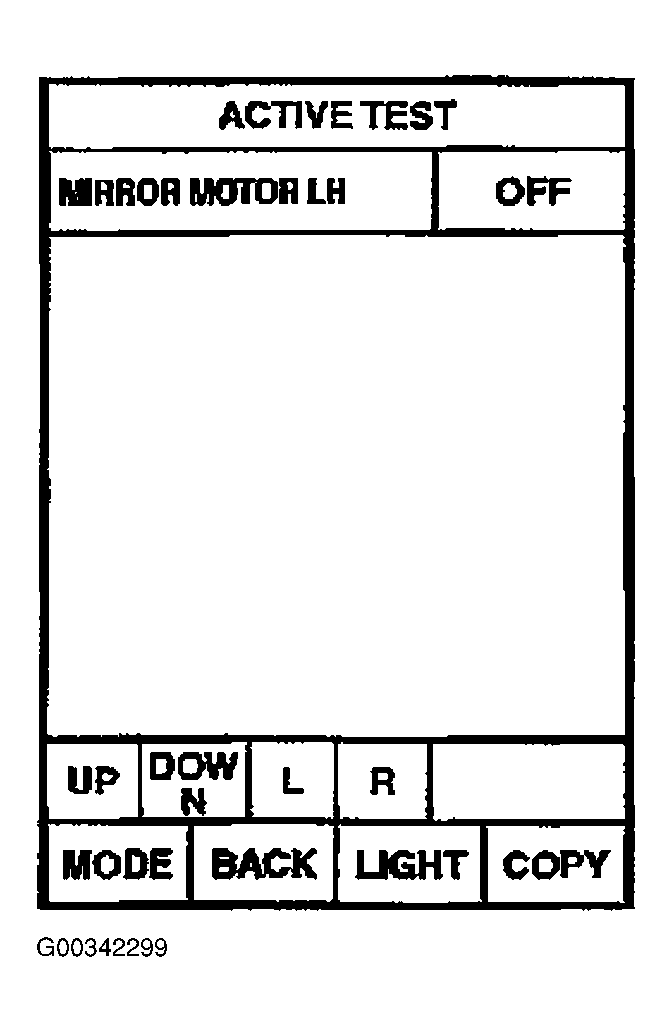

Fig 2: CONSULT-II Display
G00342299Courtesy of NISSAN MOTOR CO., U.S.A.
