Assembly Of Differential Case Assembly

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Install pinion mate shaft lock pin with a punch.
Make sure lock pin is flush with case.

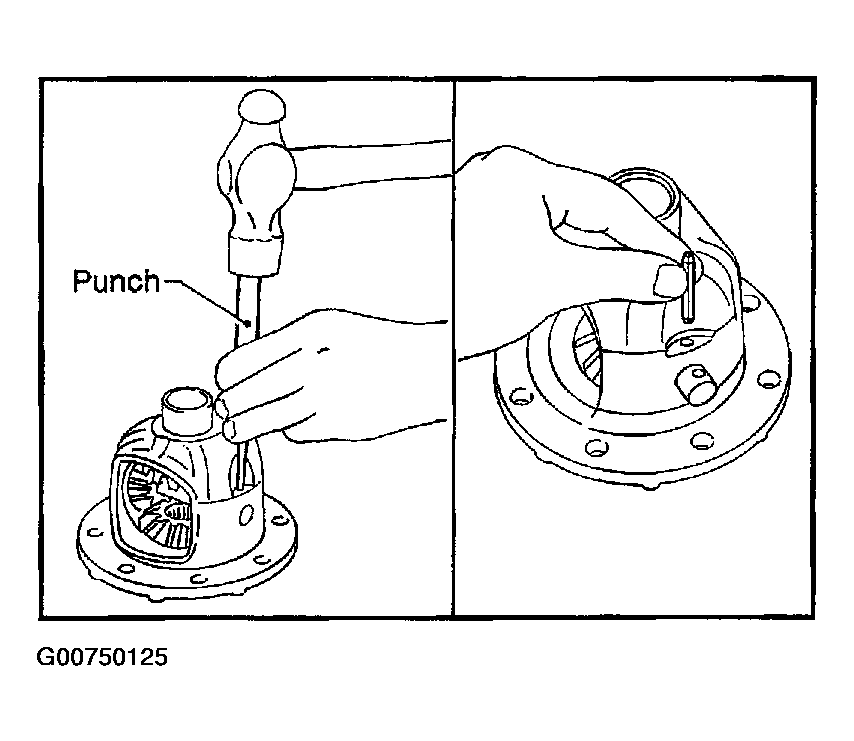

Fig 1: Installing Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Place differential case on drive gear.
Apply genuine medium strength locking sealant or equivalent to drive gear bolts, and install them.
- Tighten bolts in a criss-cross fashion.
- After tightening the bolt to the specified torque, turn the bolt 31 to 36 more degrees.

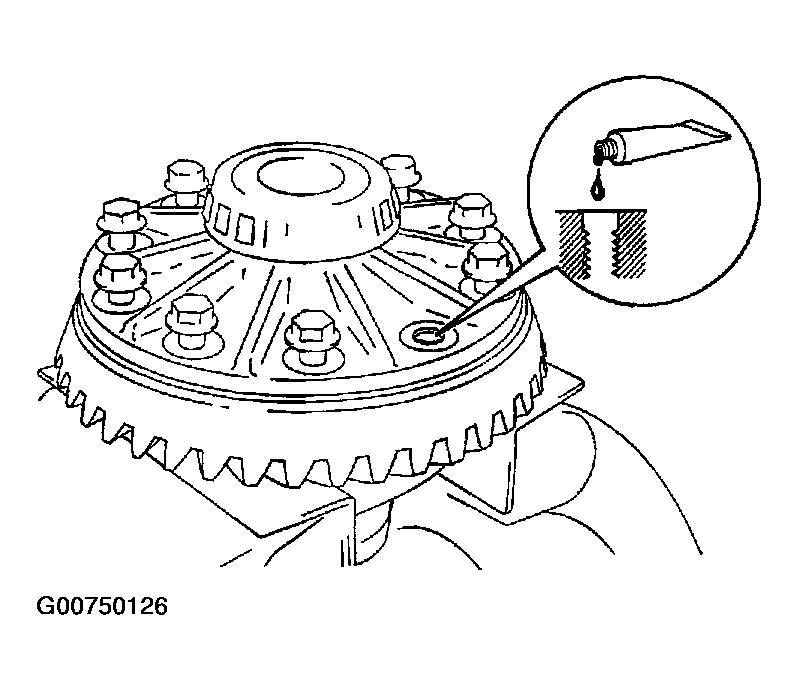

Fig 2: Applying Locking Compound To Ring Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Press-fit side bearing inner race on differential case with Tool.
1. Tool number : A KV38100300 (J25523)
2. : B ST33061000 (J18107-2)

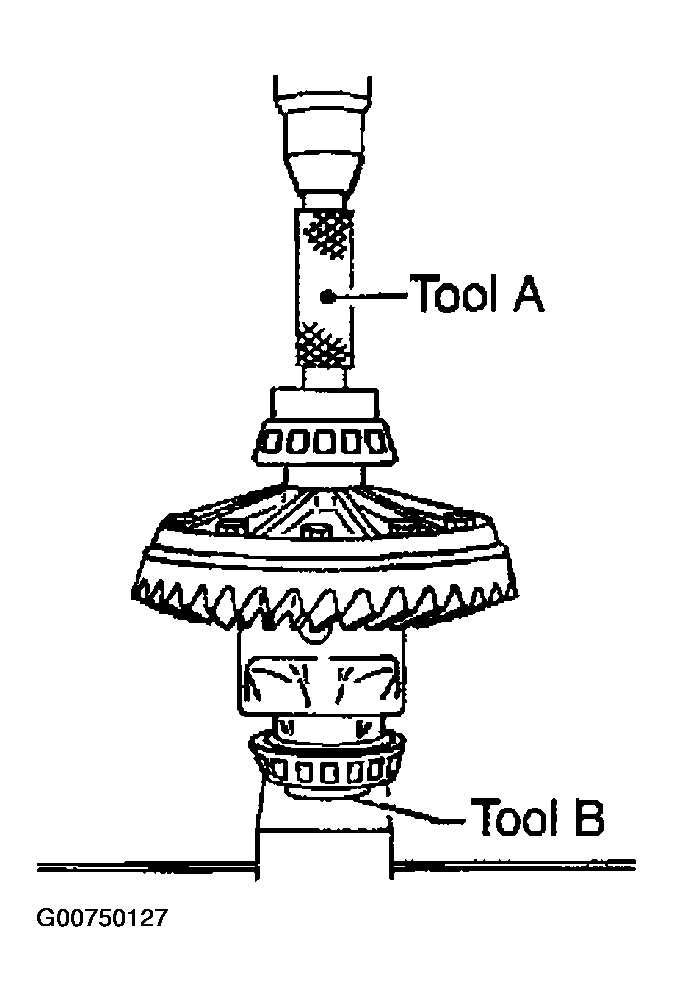

Fig 3: Installing Side Bearing Inner Race
Courtesy of NISSAN MOTOR CO., U.S.A.
