Removal Of Differential Case Assembly

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

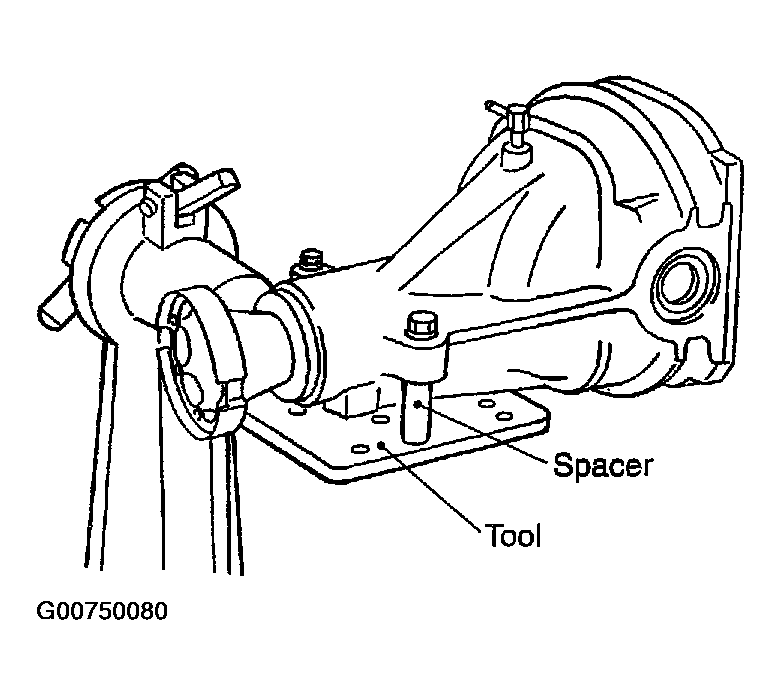

Using two 45 mm (1.77 in) spacers, mount carrier on Tool.
1. Tool number : KV38100800 (J25604-01)
Fig 1: Mounting Differential Case Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

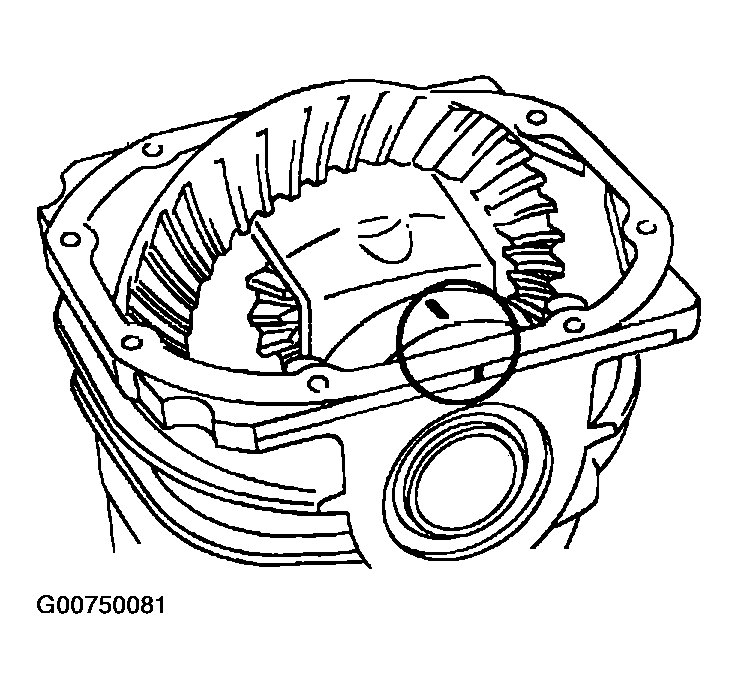

For proper reinstallation, paint matching marks on one side of the bearing cap.
Bearing caps are line-board during manufacture. Replace them in their proper positions.

Fig 2: Placement of Matching marks
Courtesy of NISSAN MOTOR CO., U.S.A.

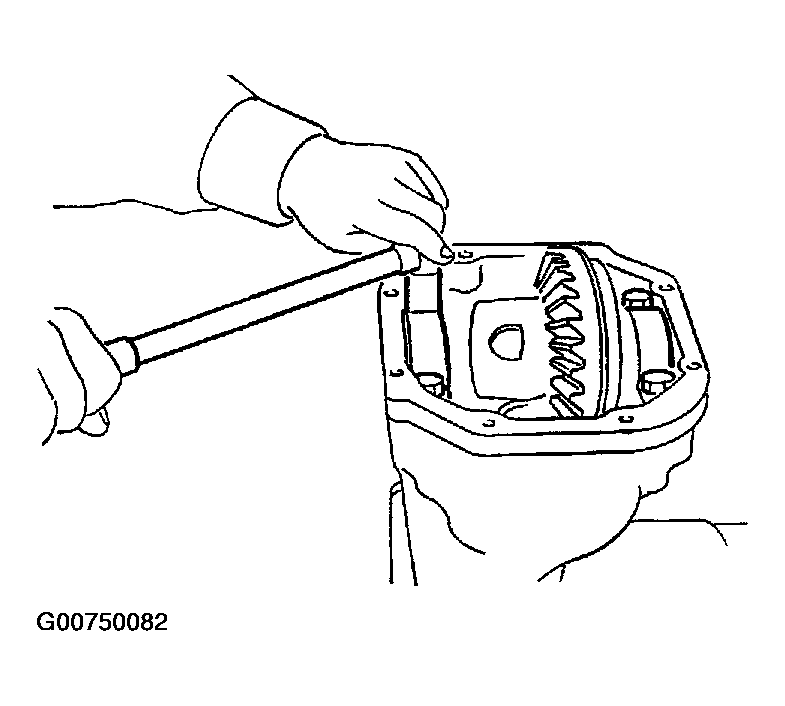

Remove bearing caps.

Fig 3: Removing bearing caps
Courtesy of NISSAN MOTOR CO., U.S.A.

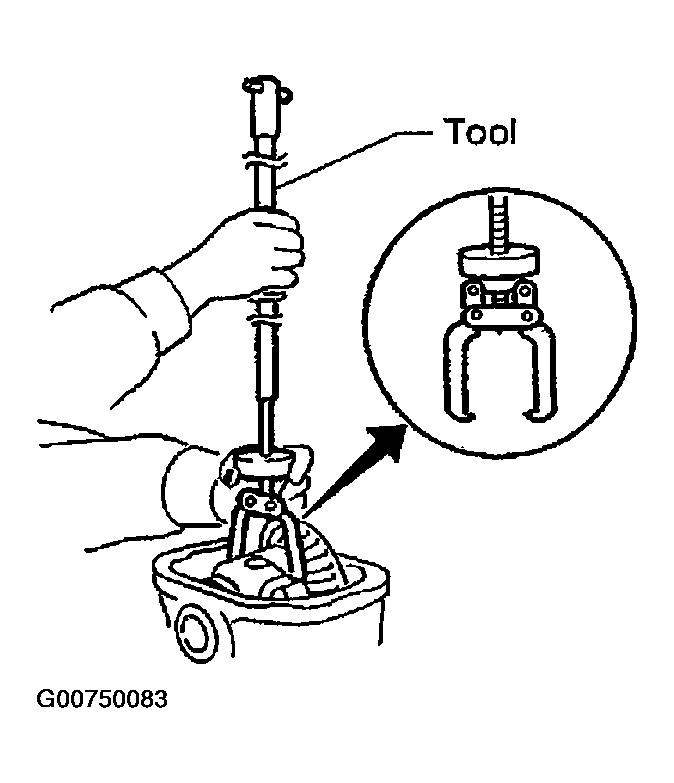

Lift differential case assembly out with Tool.
1. Tool number : HT72400000 ( - )
Fig 4: Lifting Out Differential
Courtesy of NISSAN MOTOR CO., U.S.A.
- Keep the side bearing outer races together with inner race. Do not mix them up.
  Also, keep adjusting washers together with bearings.
