CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

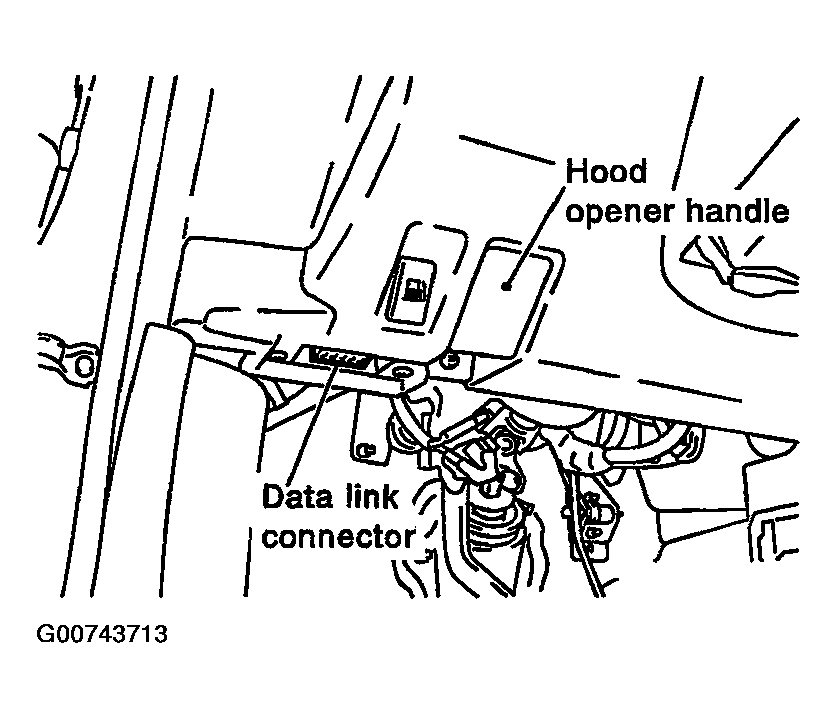

    Fig 1: CONSULT-II Basic Operation Procedure
    G00743713Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".
  5. Touch "IVMS" on the "SELECT SYSTEM" screen.

    If "IVMS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT

  6. Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
  7. Touch "OK". If the selection is wrong, touch "CANCEL".
  8. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
