Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
  2. Touch item to be tested, and check operation.
  3. Touch "START".
  4. Touch "STOP" while testing to stop the operation.

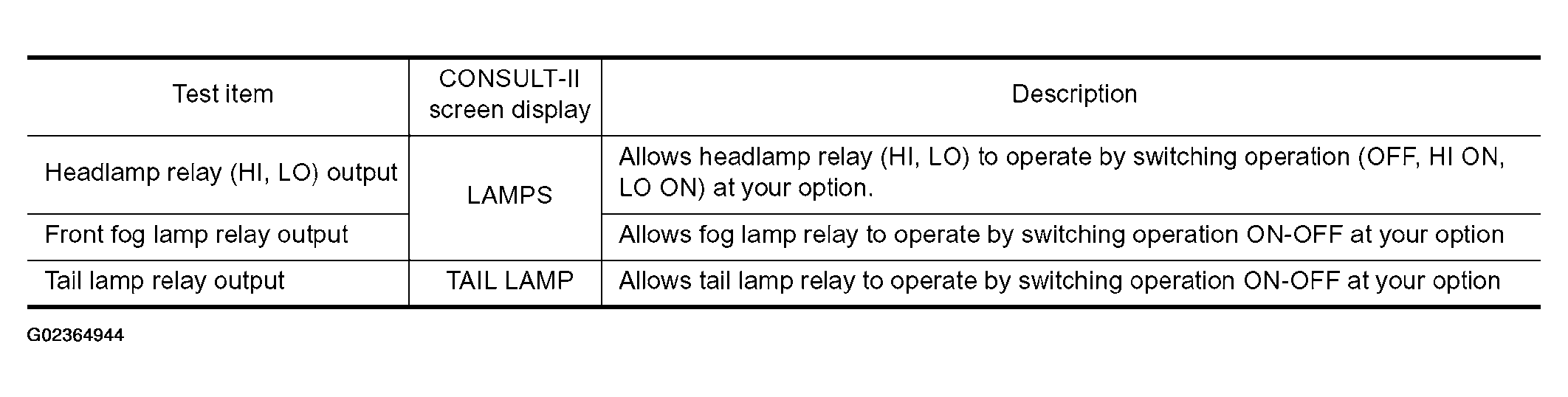

    Fig 1: Item Testing Table
    G02364944Courtesy of NISSAN MOTOR CO., U.S.A.
