Engine Control Component Parts/Control Systems Application
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

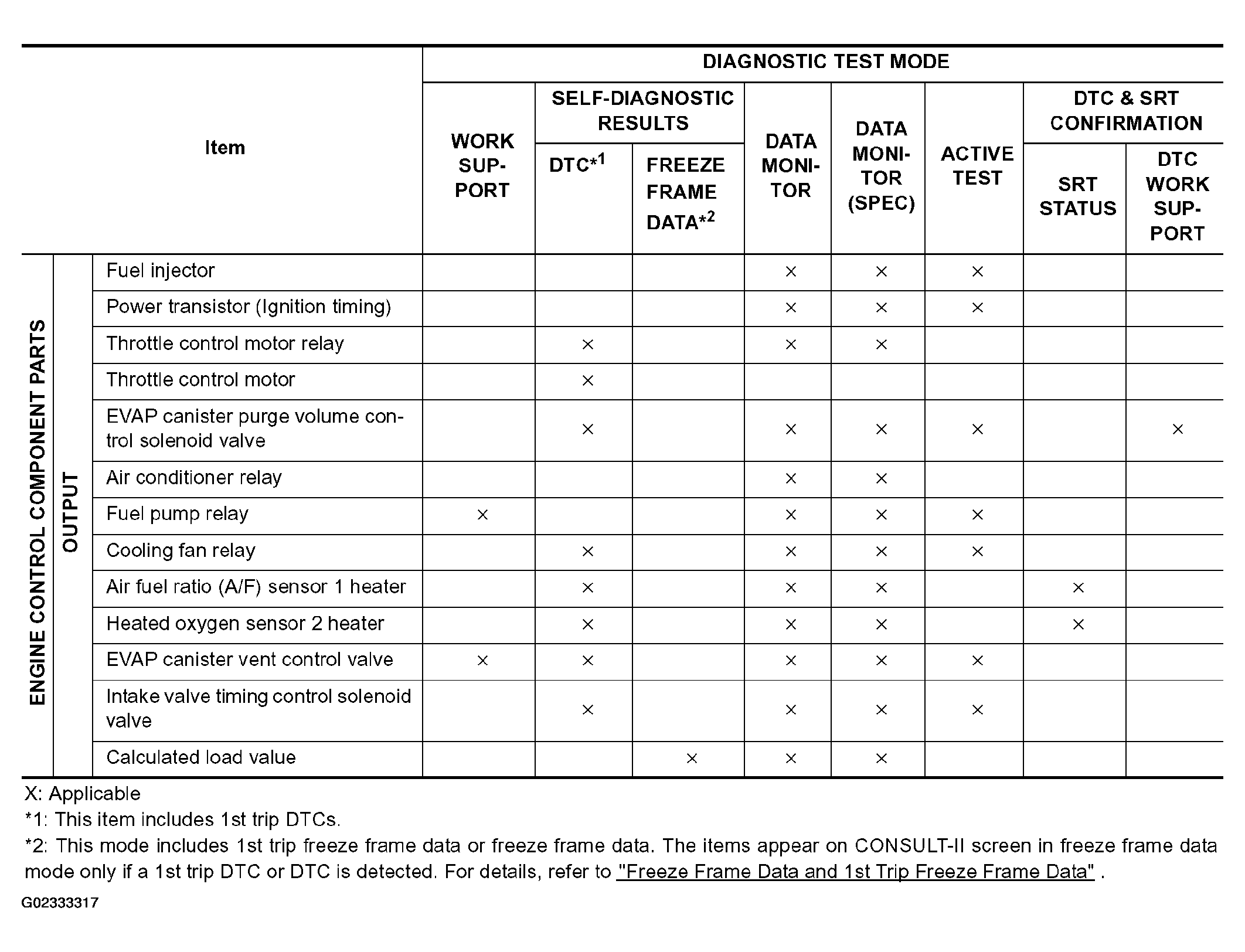

Fig 1: Engine Control Component Parts/Control Systems Application Chart - (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

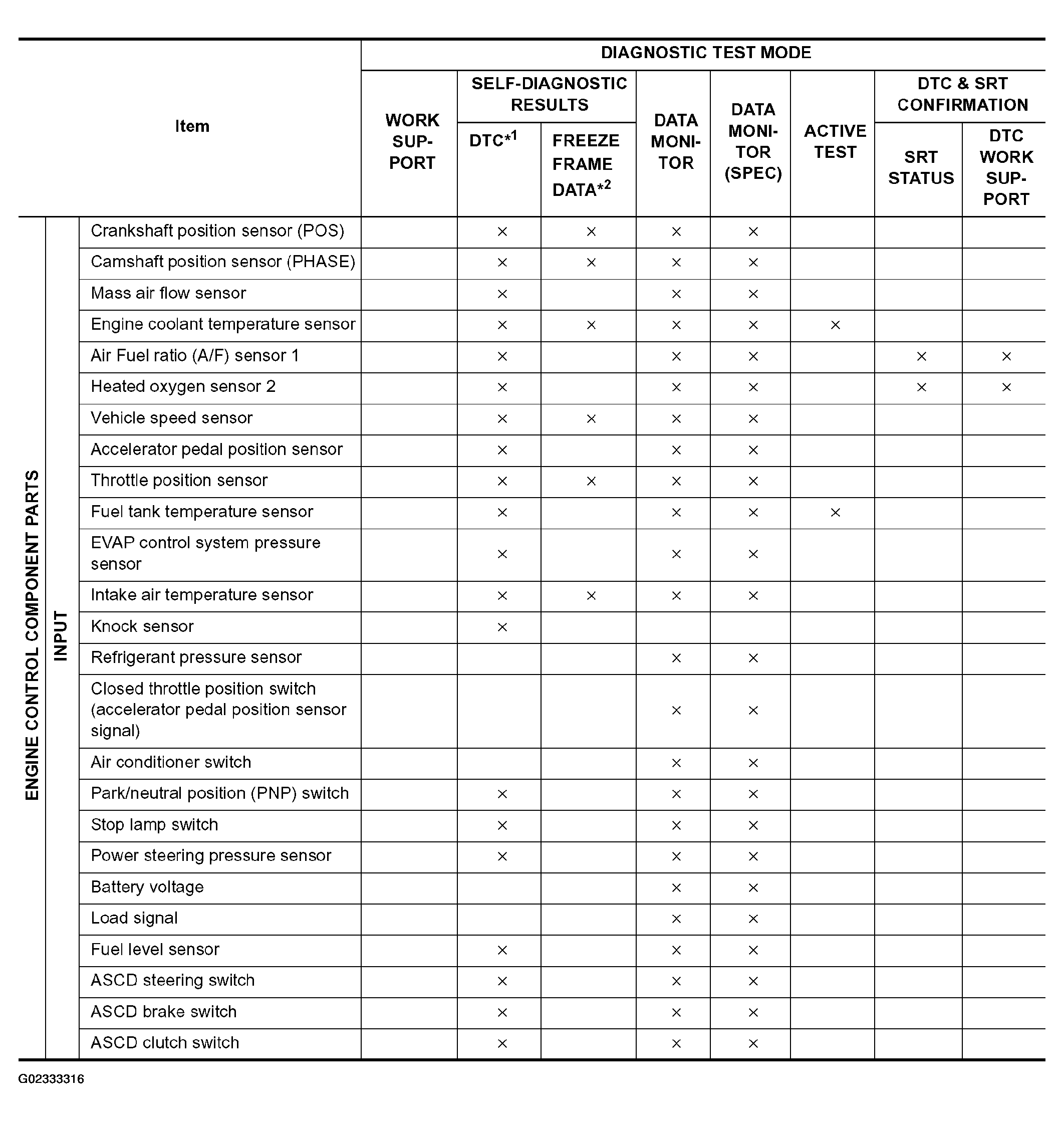

Fig 2: Engine Control Component Parts/Control Systems Application Chart - (2 Of 2)
