The following functions are executed by combining data received and command transmitted via the communication line from the BCM.

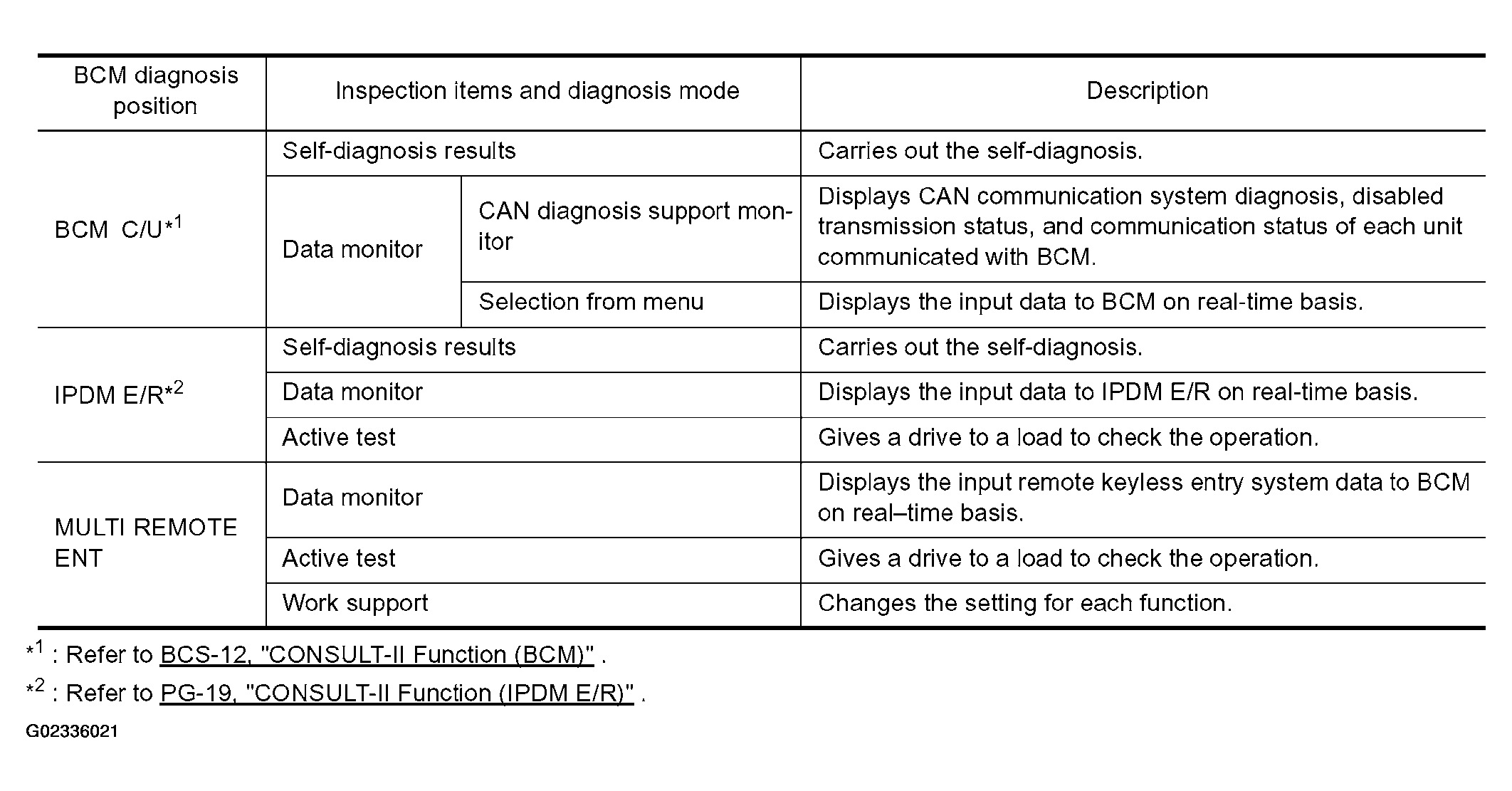

Fig 1: CONSULT-II Function (BCM) - Description Chart
