Removal and Installation of NAVI Control Unit: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove center box assy. Refer to "INSTRUMENT PANEL ASSEMBLY ".

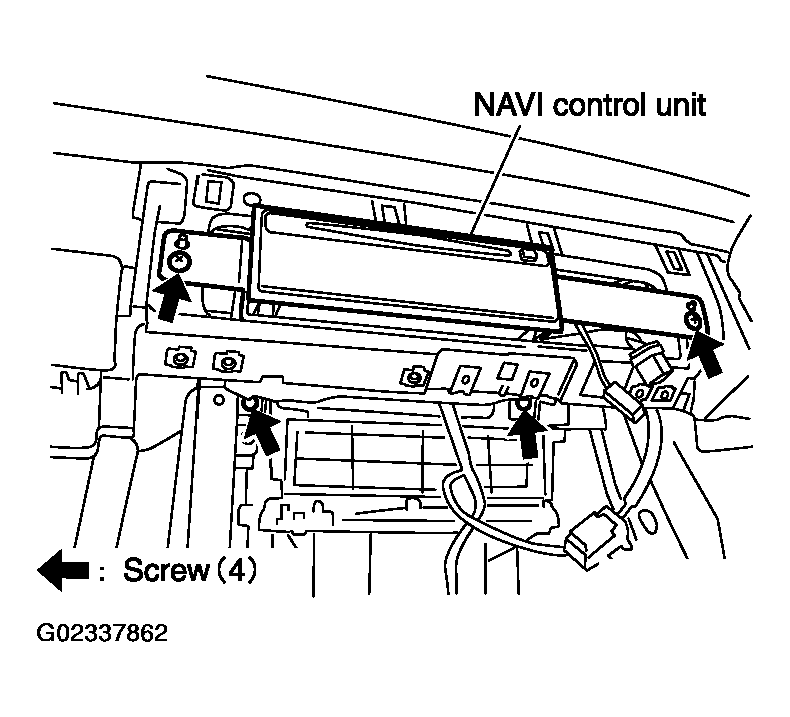

Remove screws (4), and remove NAVI control unit.

Fig 1: Locating NAVI Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

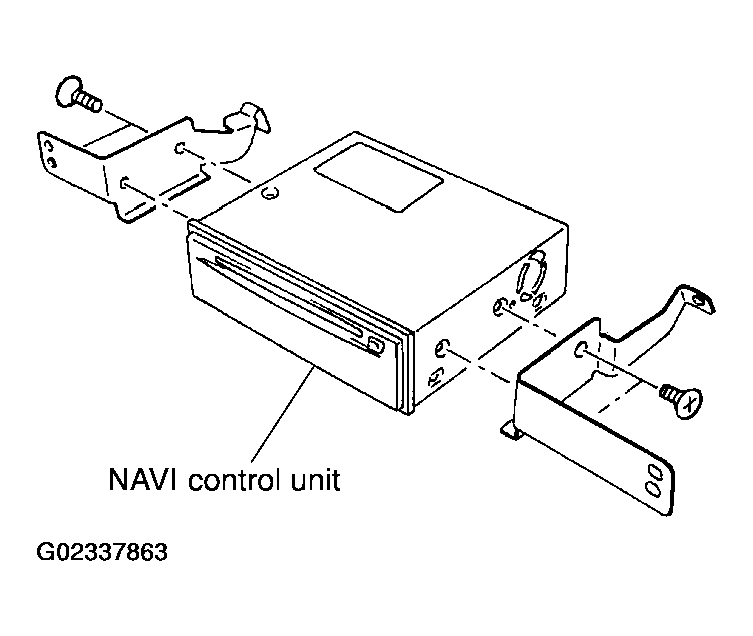

Remove screws (4), and remove bracket.

Fig 2: Removing Screws And Bracket Of NAVI Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
