Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Push and hold "MAP" and "DAY/NIGHT" switches simultaneously for 5 seconds or more.
- Push the "PREVIOUS" switch and the initial system screen will be shown.

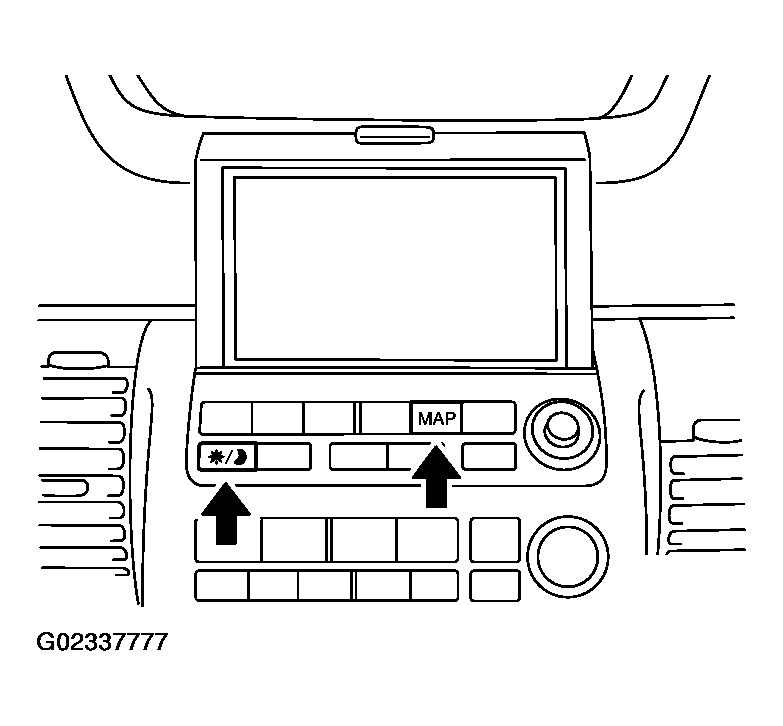

Fig 1: Locating Map And Day/Night Switches
Courtesy of NISSAN MOTOR CO., U.S.A.
The initial trouble diagnosis screen will be shown, and items "SELF- DIAGNOSIS" and "CONFIRMATION/ADJUSTMENT" will become selective.

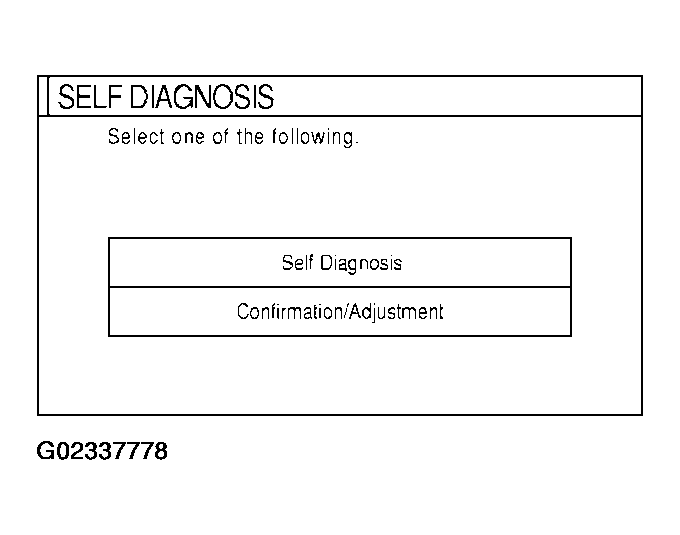

Fig 2: Self-Diagnosis And Confirmation/Adjustment Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform self-diagnosis by selecting the "SELF-DIAGNOSIS".
- Self-diagnosis subdivision screen will be shown and the operation enters the self-diagnosis mode.
- A bar graph shown below the self-diagnosis subdivision screen indicates progress of the diagnosis.

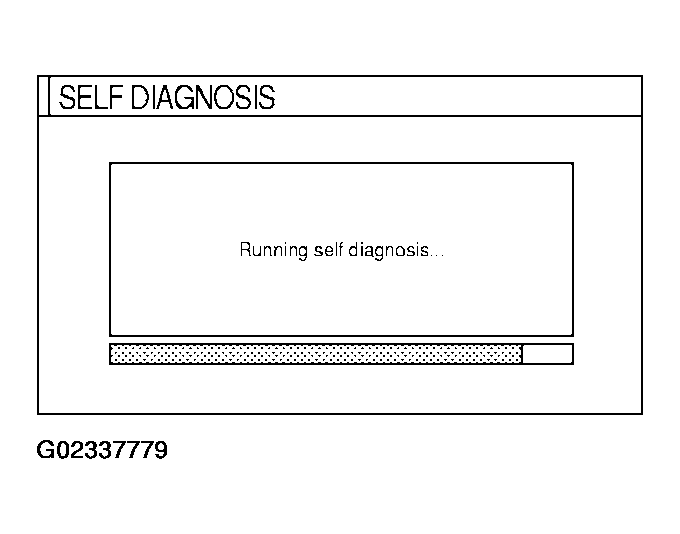

Fig 3: Self-Diagnosis Display
Courtesy of NISSAN MOTOR CO., U.S.A.
On the "Self-diagnosis" screen, each unit name will be colored according to the diagnosis result, as follows.
1. Green: No malfunctioning.
2. Yellow: Cannot be judged by self-diagnosis results.
3. Red: Unit is malfunctioning.
4. Gray: Diagnosis has not been done.
- If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined according to the following order of priority. Red > yellow > gray
- Display when it is normal
- Between Navigation Unit and GPS antenna is connected in green.
- Between Navigation Unit and Satellite Switch, Navigation Unit and Display, Navigation Unit and IMU are connected in gray.

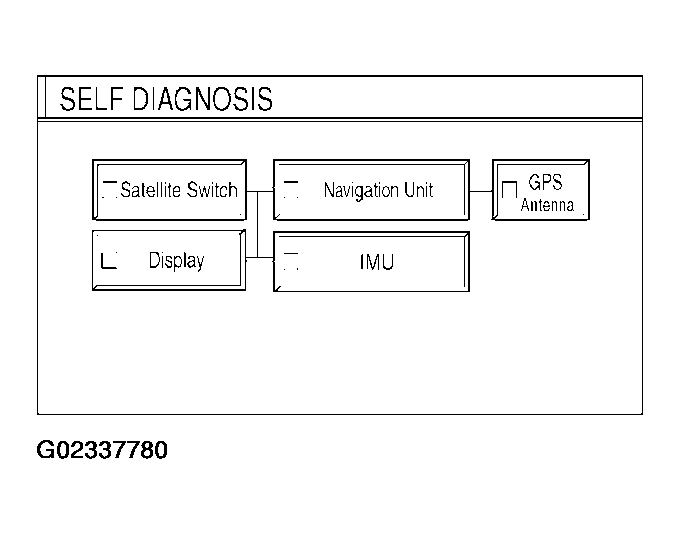

Fig 4: Unit Items On Self-Diagnosis Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select a switch on the "Self-diagnosis" screen and comments for the diagnosis results will be shown.

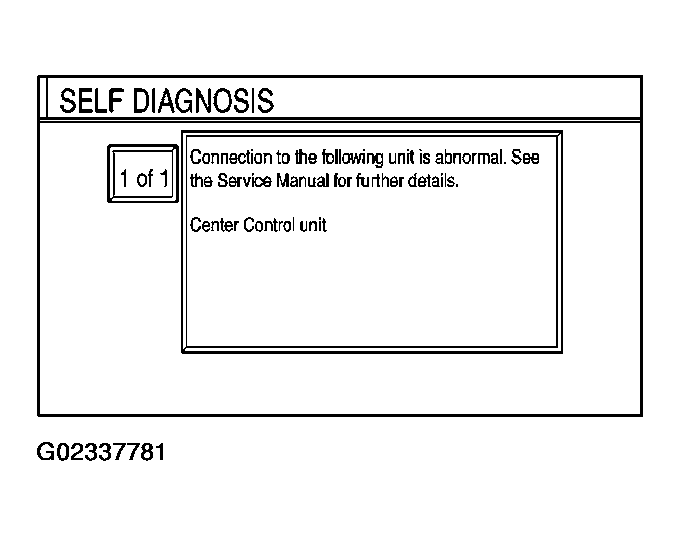

Fig 5: Comments On Diagnosis Results On Self-Diagnosis Display
Courtesy of NISSAN MOTOR CO., U.S.A.
