Display with Pushed "ROUTE" Switch

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Easy Mode

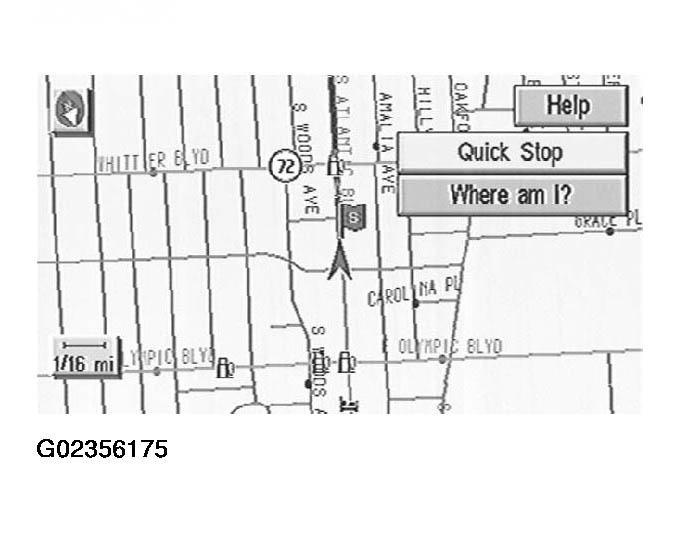

Fig 1: Pushed ROUTE Switch - Easy Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Expert Mode

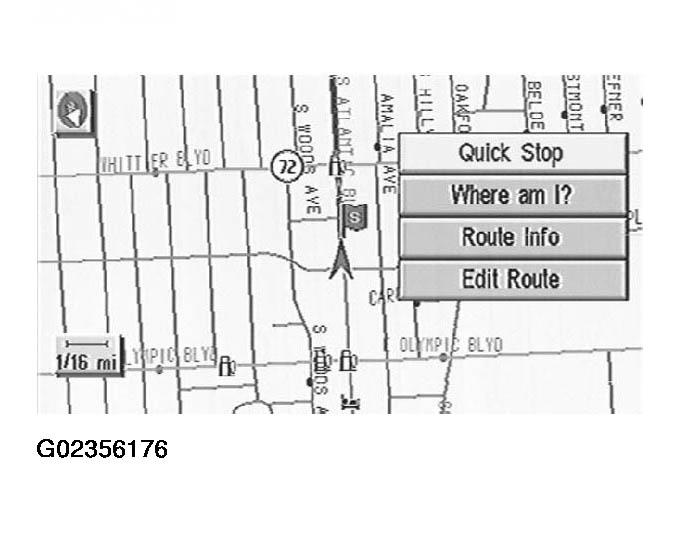

Fig 2: Pushed ROUTE Switch - Expert Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.

The function of each icon is as follows:

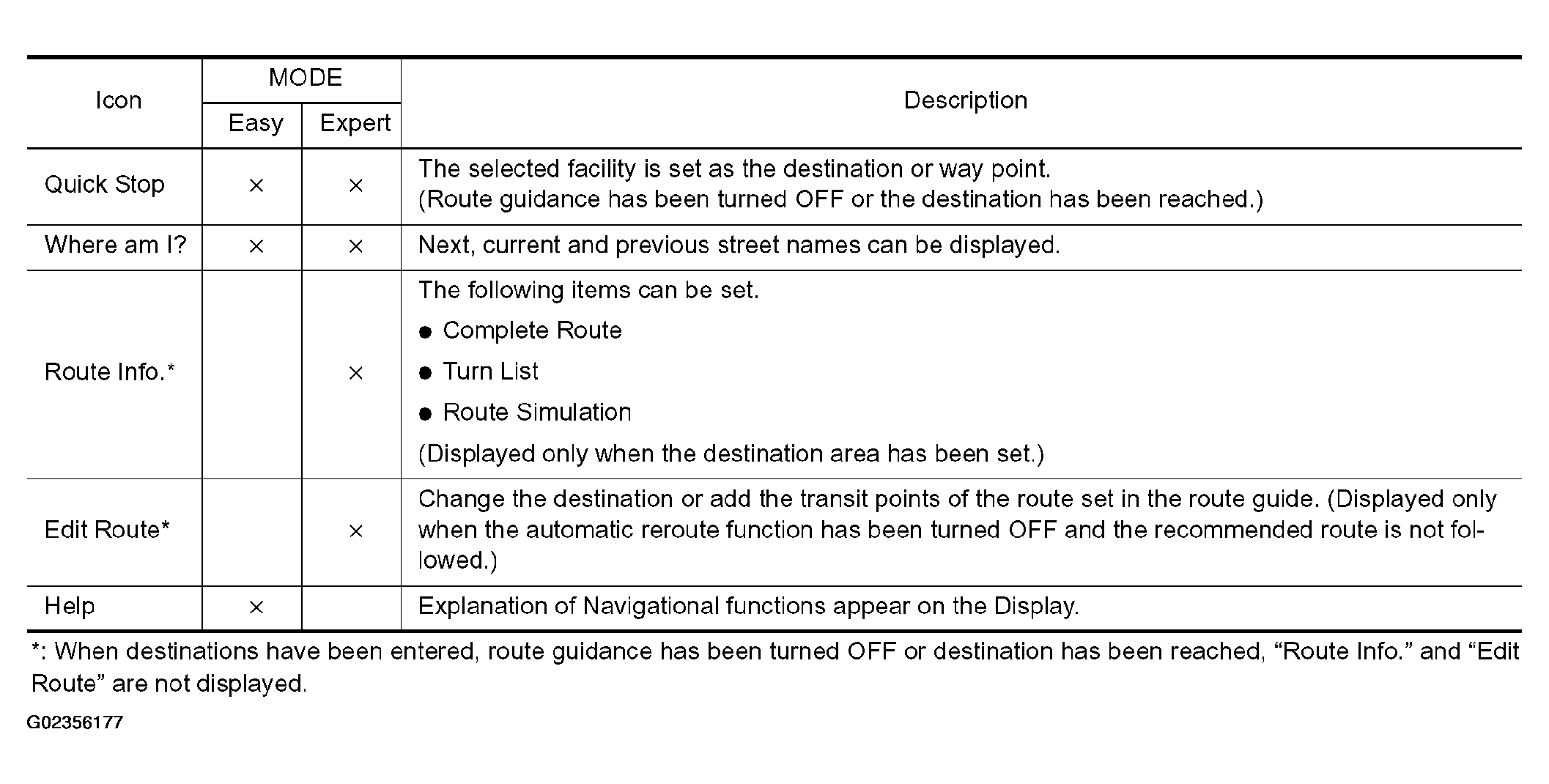

Fig 3: Pushed ROUTE Switch Display - Icons And Description Table

Courtesy of NISSAN MOTOR CO., U.S.A.

*: When destinations have been entered, route guidance has been turned OFF or destination has been reached, "Route Info." and "Edit Route" are not displayed.
