Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower instrument panel (drive side). Refer to INSTRUMENT LOWER DRIVER PANEL .
  2. Remove VDC/TCS/ABS control unit.

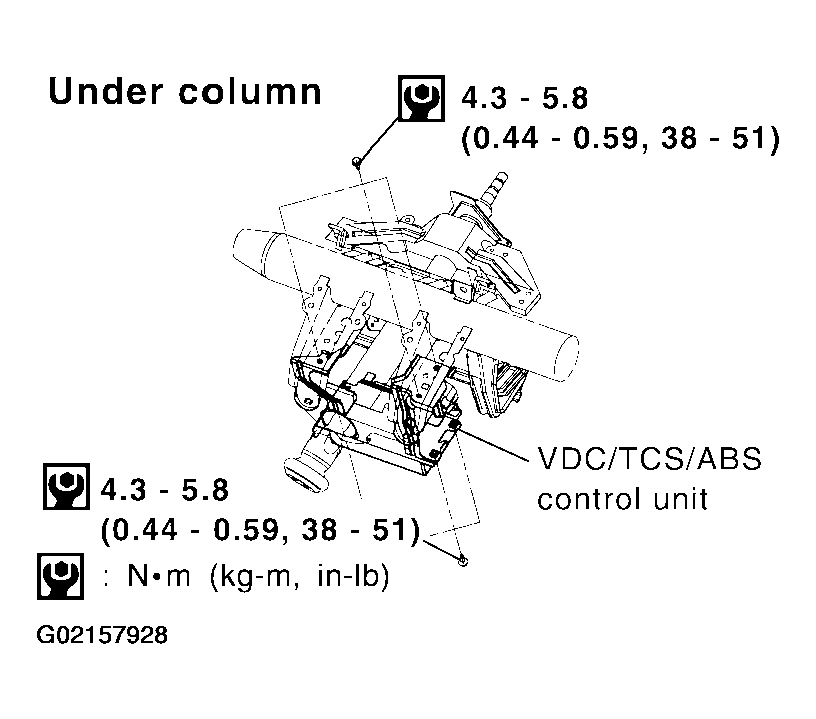

    Fig 1: Removing VDC/TCS/ABS Control Unit
    G02157928Courtesy of NISSAN MOTOR CO., U.S.A.
