Check Security Indicator Lamp

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

INDICATOR LAMP ACTIVE TEST
With CONSULT-II

Check "INDICATOR LAMP" in "ACTIVE TEST" mode with CONSULT-II.

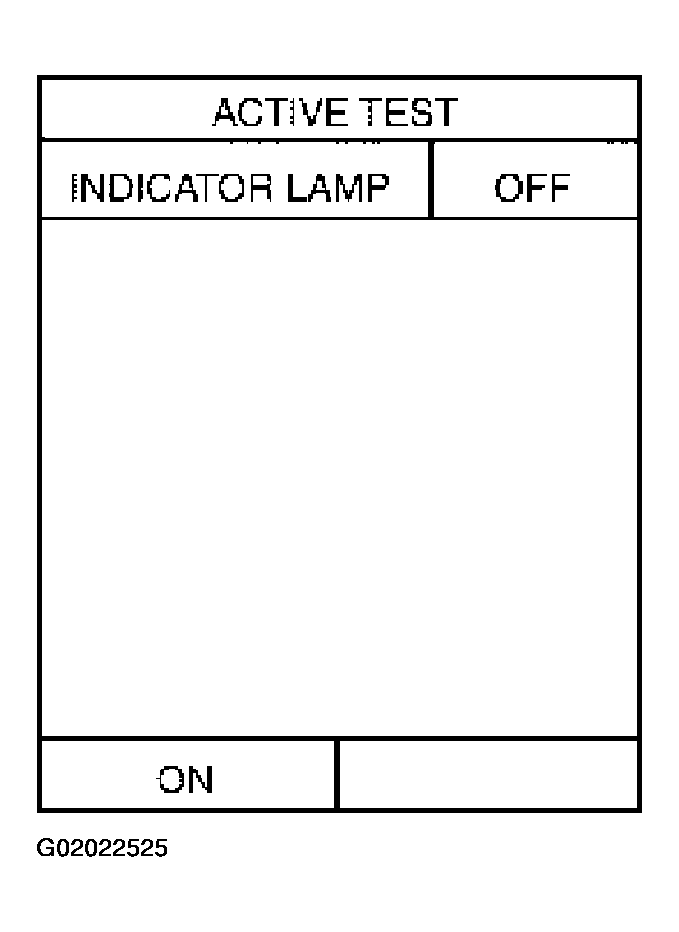

Fig 1: Display Active Test Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Perform operation shown on display.
2. Indicator lamp should illuminate.
NOTE: If CONSULT-II is not available, skip this procedure and go to the next procedure.

OK or NG

OK >> Security indicator lamp is OK.

NG >> GO TO 2.
CHECK INDICATOR LAMP
1. Turn ignition switch "OFF".
2. Check indicator lamp condition.
OK or NG

OK >> GO TO 3.

NG >> Replace indicator lamp.
CHECK POWER SUPPLY CIRCUIT FOR INDICATOR LAMP
1. Disconnect security indicator lamp connector.
2. Check voltage between indicator lamp connector M73 terminal 2 (Y/G) and ground.
  1. 2 (Y/G) - Ground :Battery voltage
OK or NG

OK >> Check harness for open or short between security indicator lamp and BCM.

NG >> Check the following.
- 10A fuse [No. 6, located in fuse block (J/B) No. 1]
- Harness for open or short between security indicator lamp and fuse.
