Work Flow

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

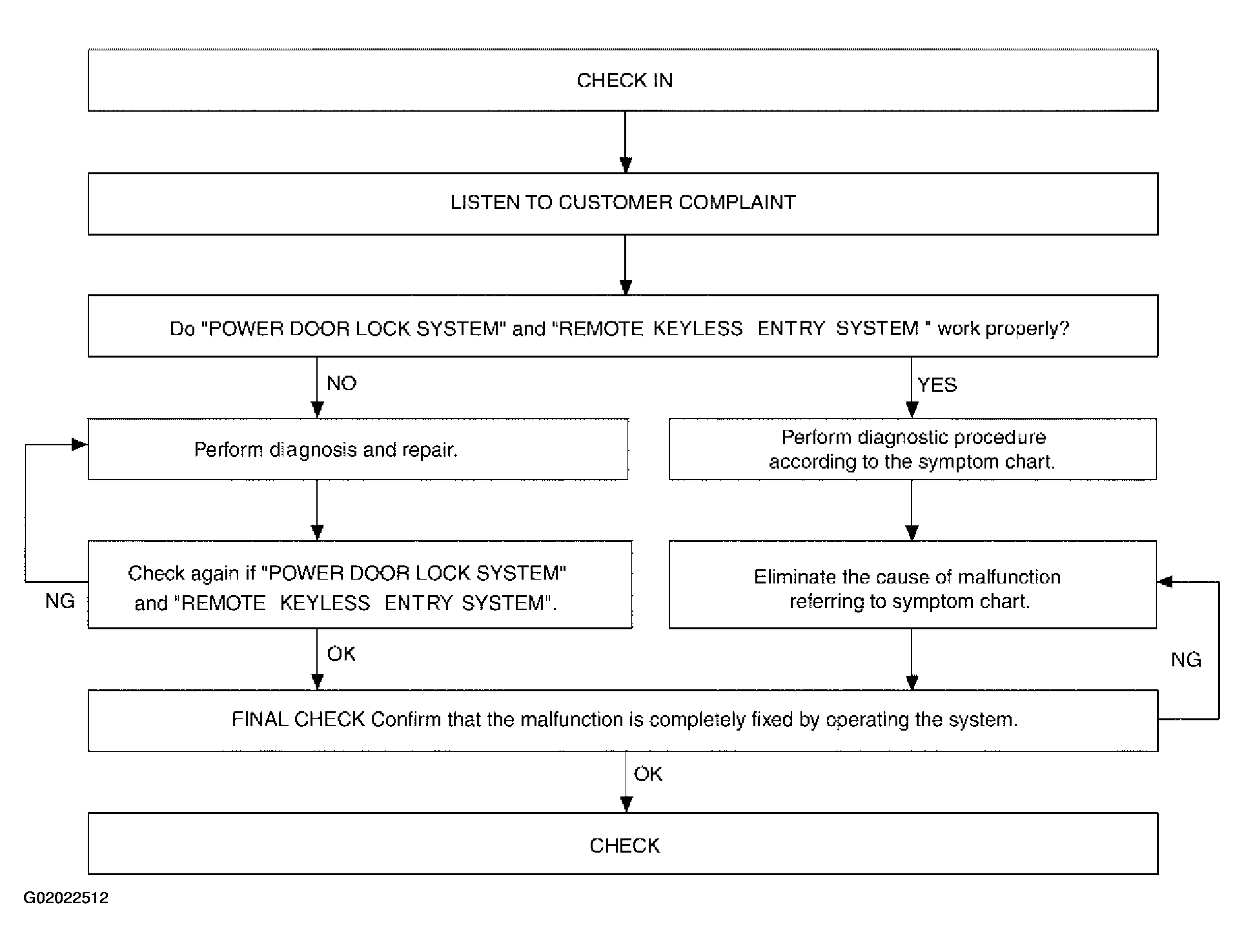

Fig 1: Identifying Work Flow Trouble Diagnoses (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

"POWER DOOR LOCK SYSTEM" Diagnosis refer to "POWER DOOR LOCK SYSTEM ".
"REMOTE KEYLESS ENTRY SYSTEM" Diagnosis refer to "REMOTE KEYLESS ENTRY SYSTEM ".
