Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Start engine.
Select DATA MONITOR mode for A/T with CONSULT-II.
Drive vehicle under the following conditions:
Selector lever in D , vehicle speed higher than 20 km/h (12 MPH).

Without CONSULT-II

Start engine.

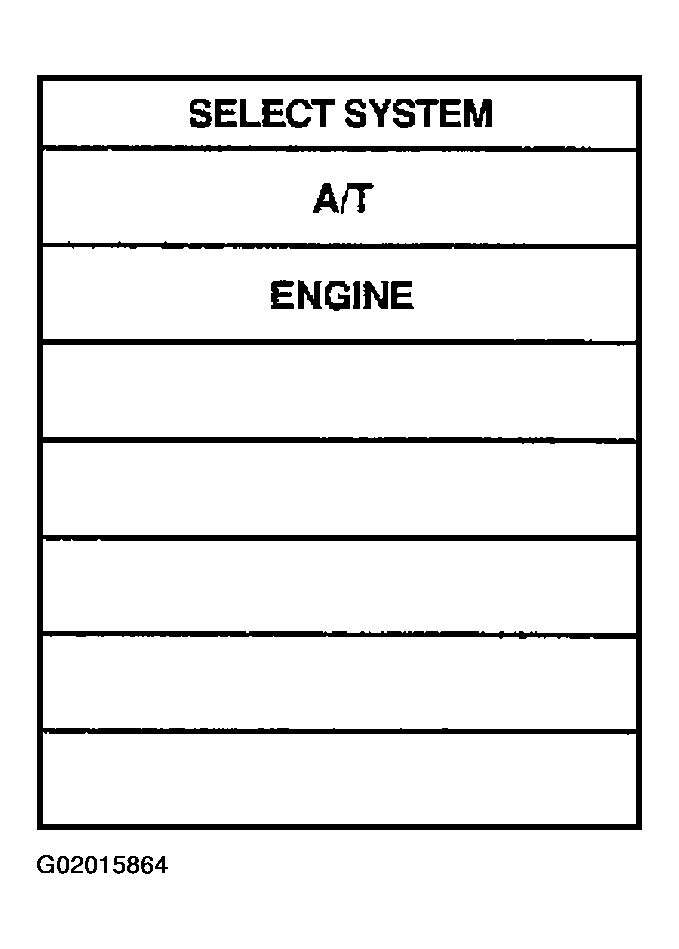

Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive vehicle under the following conditions:
Selector lever in D , vehicle speed higher than 20 km/h (12 MPH).

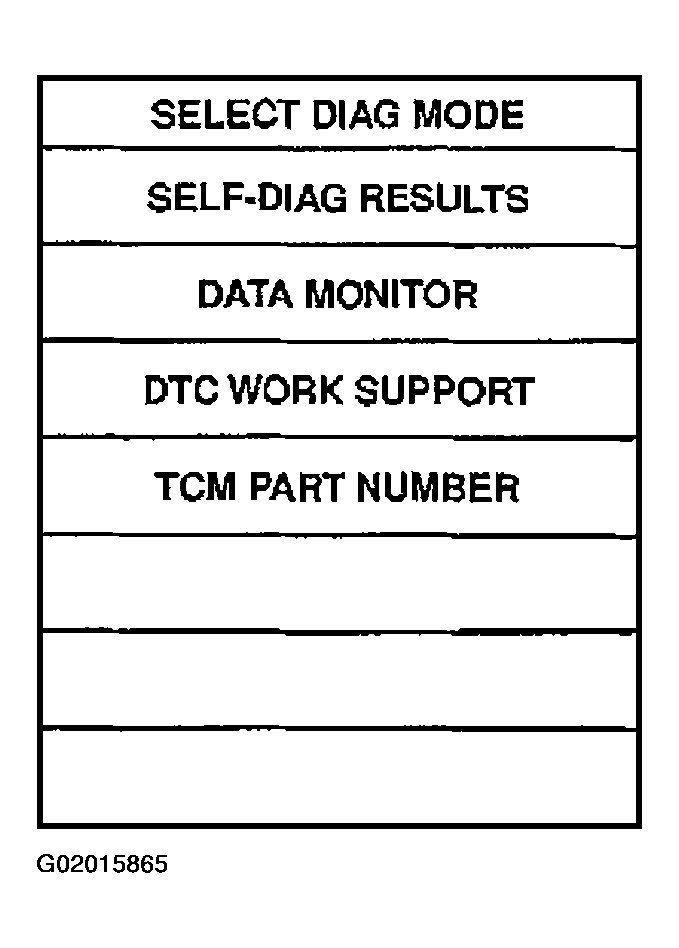

Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform self-diagnosis.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

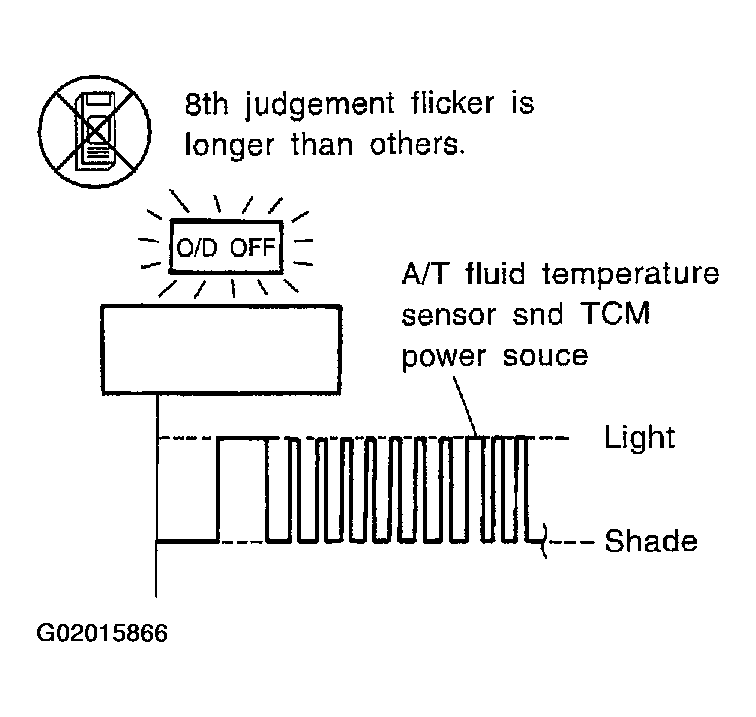

Fig 3: DTC Confirmation Procedure Without CONSULT -II
Courtesy of NISSAN MOTOR CO., U.S.A.
