Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch ON and select DATA MONITOR mode for ENGINE with CONSULT-II.

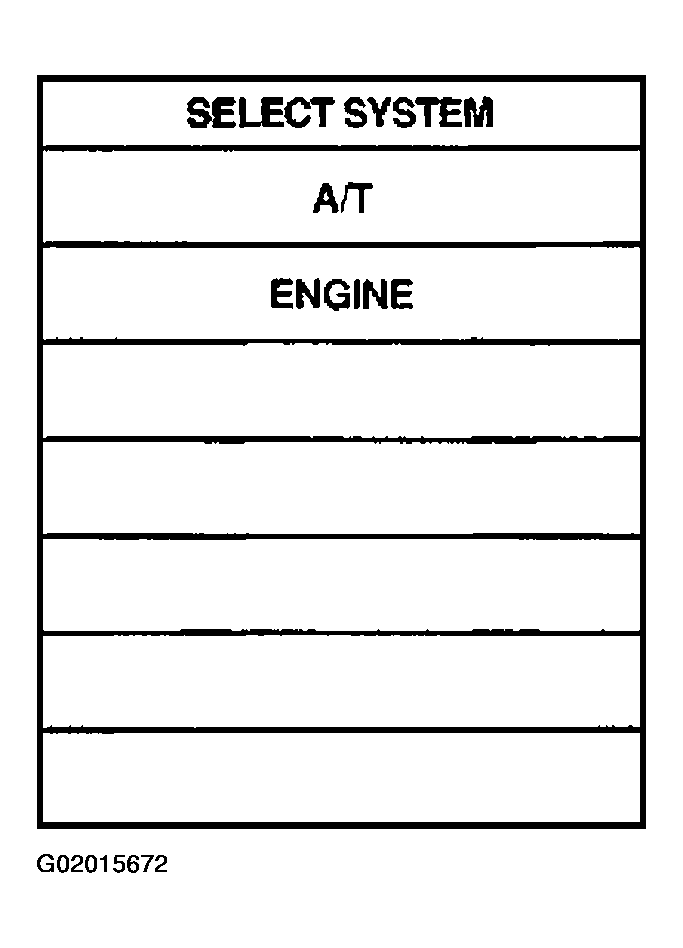

Fig 1: DTC Confirmation Procedure With CONSULT-II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)
CMPS.RPM (REF): 450 rpm or more

VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: More than 1.2V

Selector lever: D position (OD ON)

With GST

Follow the procedure With CONSULT-II.

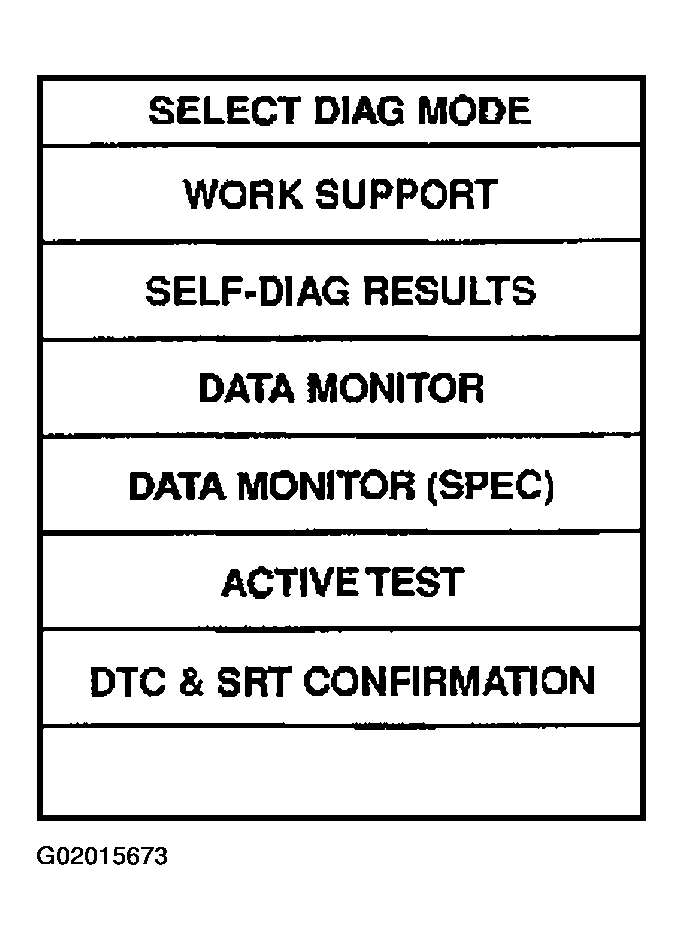

Fig 2: DTC Confirmation Procedure With CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
