Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Always drive vehicle at a safe speed.
  • Be careful not to rev engine into the red zone on the tachometer.
NOTE: If DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

  1. Turn ignition switch ON and select DATA MONITOR mode for A/T with CONSULT-II.

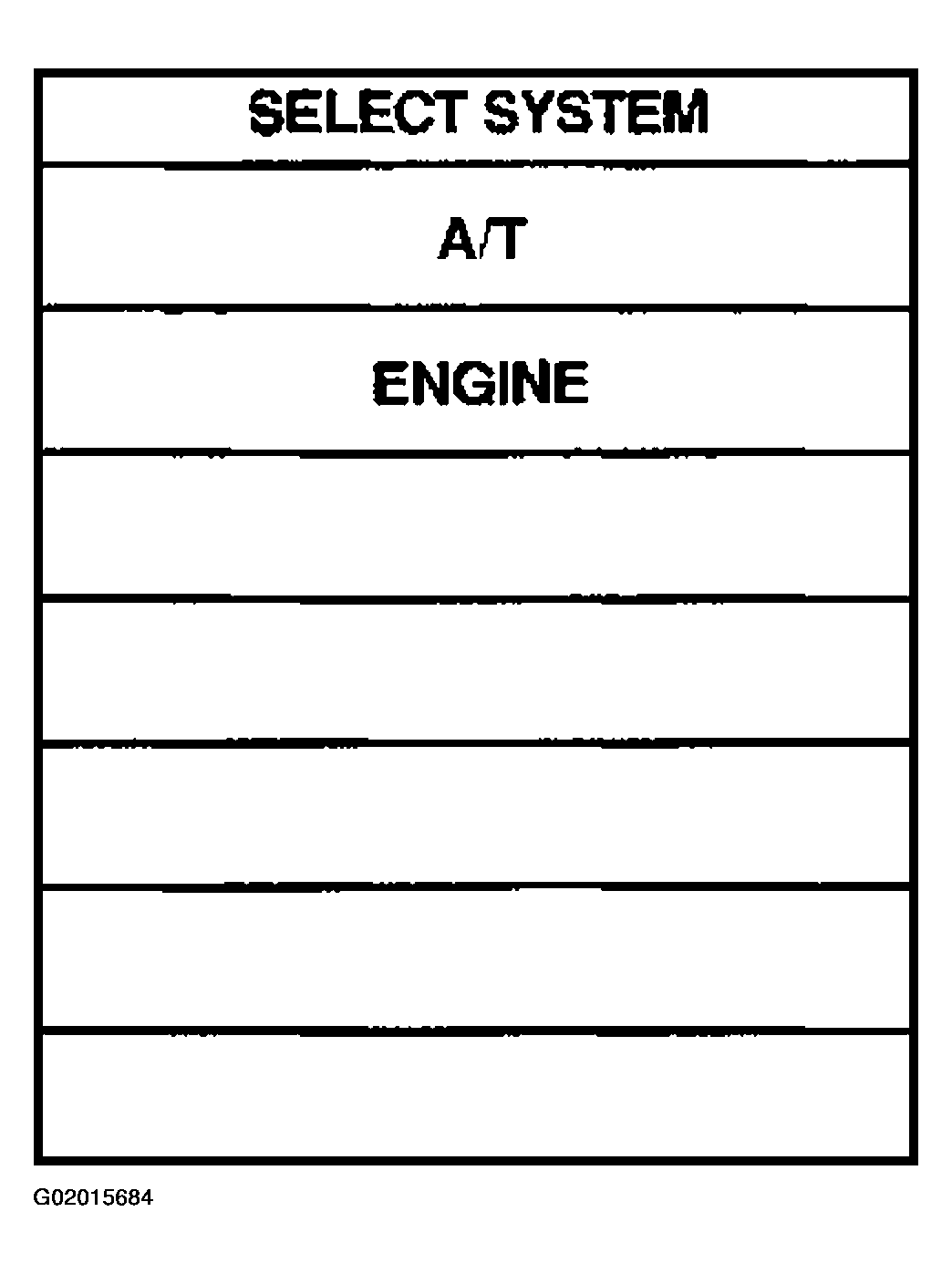

    Fig 1: DTC Confirmation Procedure With CONSULT-II (1 Of 4)
    G02015684Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Drive vehicle and check for an increase of VHCL/S SE.MTR value increase.

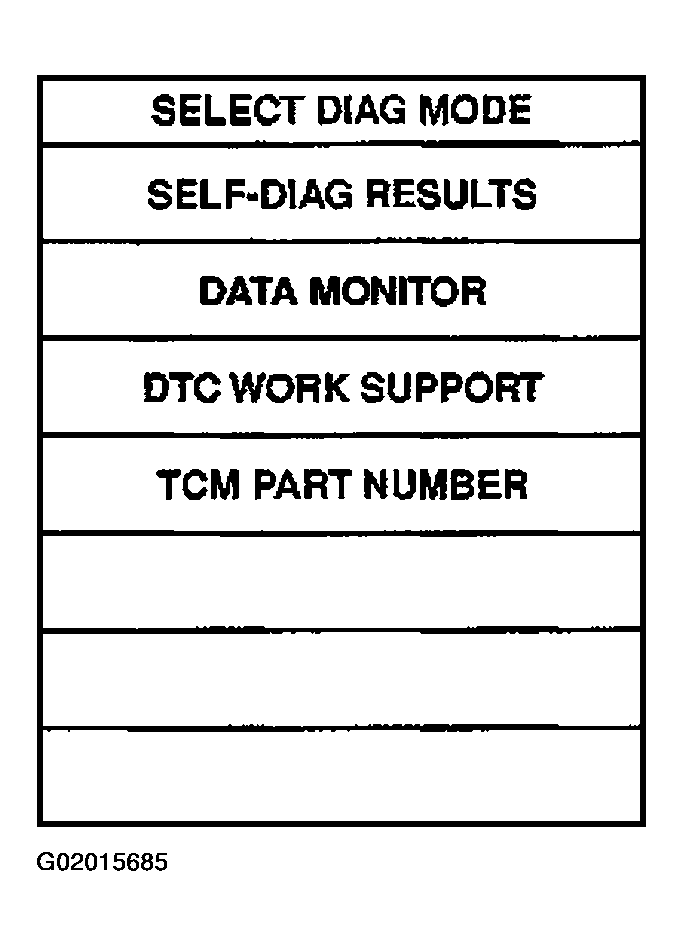

    Fig 2: DTC Confirmation Procedure With CONSULT-II (2 Of 4)
    G02015685Courtesy of NISSAN MOTOR CO., U.S.A.

    If the check result is NG, go to DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .

    If the check result is OK, go to following step.

  3. Select DATA MONITOR mode for ENGINE with CONSULT-II.

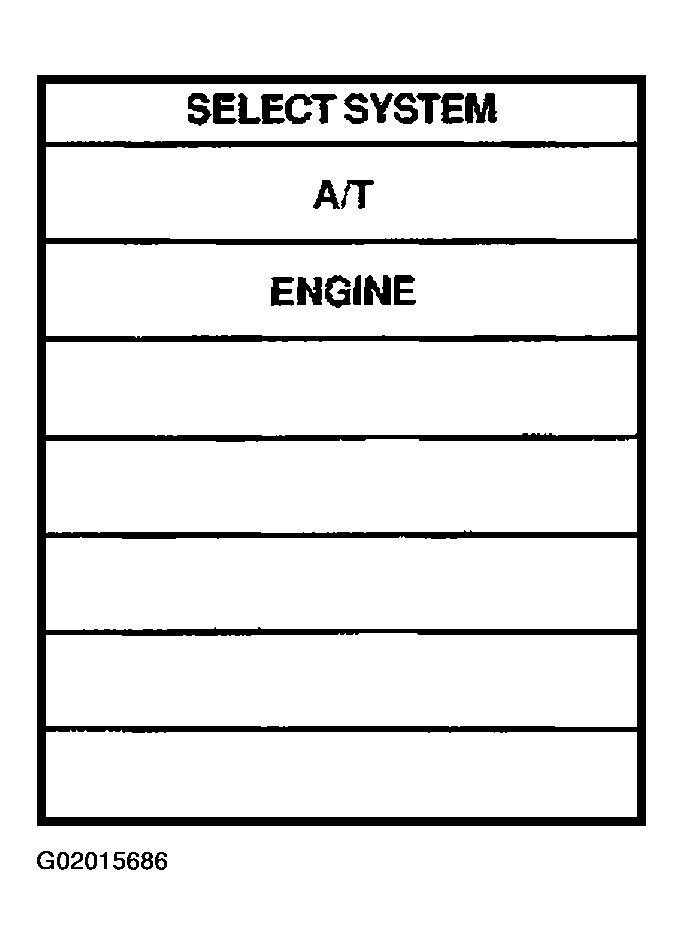

    Fig 3: DTC Confirmation Procedure With CONSULT-II (3 Of 4)
    G02015686Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Start engine and maintain the following conditions for at least 5 consecutive seconds.

    VHCL SPEED SE: 30 km/h (19 MPH) or more

    THRTL POS SEN: More than 1.2V

    Selector lever: D position (OD ON)

    Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test  .

    If the check result is NG, go to DIAGNOSTIC PROCEDURE .

    If the check result is OK, go to following step.

  5. Maintain the following conditions for at least 5 consecutive seconds.

    CMPS.RPM (REF): 3,500 rpm or more

    THRTL POS SEN: More than 1.2V

    Selector lever: D position (OD ON)

    Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test  .

With GST

Follow the procedure With CONSULT-II.

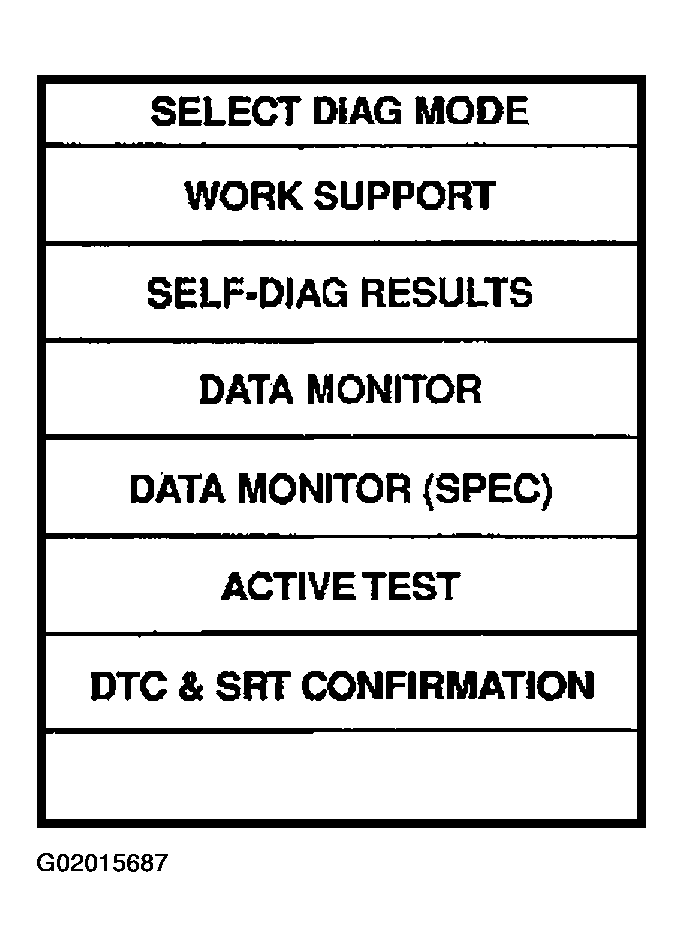

Fig 4: DTC Confirmation Procedure With CONSULT-II (4 Of 4)
G02015687Courtesy of NISSAN MOTOR CO., U.S.A.
