Testing Condition:
WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Always drive vehicle on a level road to improve the accuracy of test .
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II

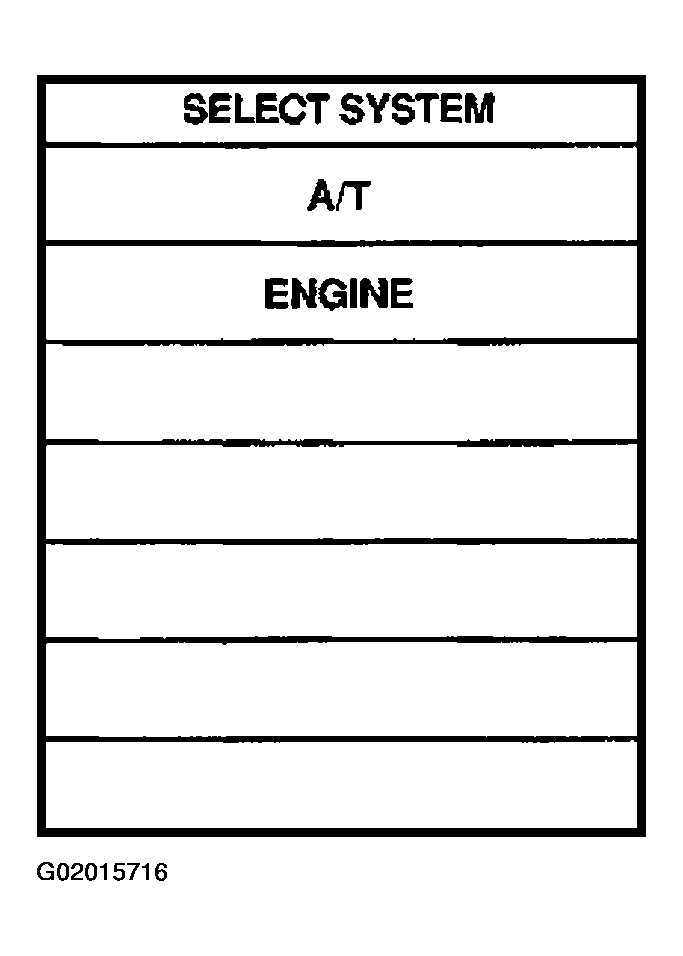

- Start engine and select DATA MONITOR mode for A/T with CONSULT-II. See Figure.

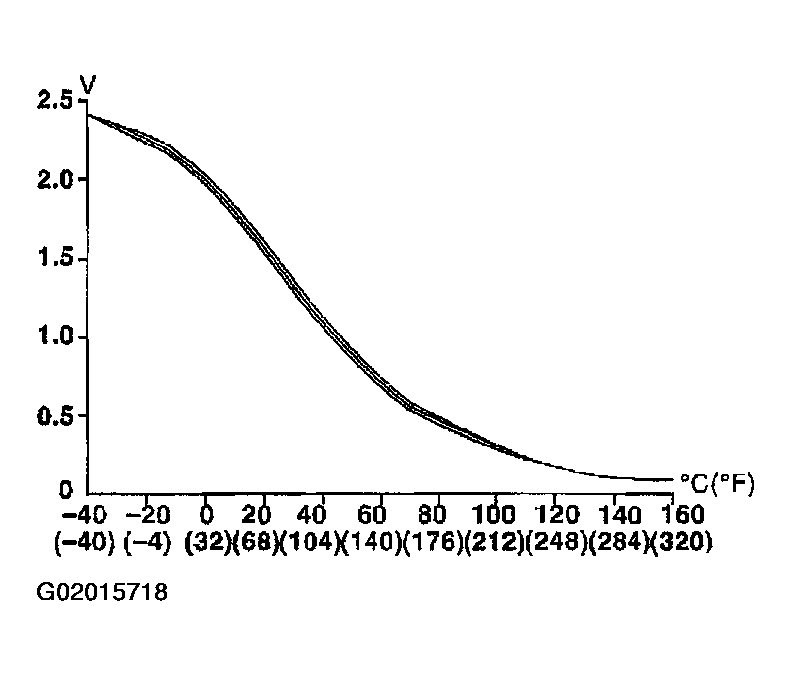

- Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid).
- Select 2ND GR FNCTN P0732 of DTC WORK SUPPORT mode for A/T with CONSULT-II and touch START.
- Accelerate vehicle to 50 to 55 km/h (31 to 34 MPH) under the following condition and release the accelerator pedal completely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
Selector lever: D position (OD ON)
- Check that GEAR shows 3 or 4 after releasing pedal .
- Depress accelerator pedal to WOT (more than 7.0/8 of THROTTLE POSI) quickly from a speed of 50 to 55 km/h (31 to 34 MPH) until TESTING changes to STOP VEHICLE or COMPLETED. (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to DIAGNOSTIC PROCEDURE .
If STOP VEHICLE appears on CONSULT-II screen, go to following step.
- Check that GEAR shows 2 when depressing accelerator pedal to WOT .
- If TESTING does not appear on CONSULT-II for a long time, select SELF-DIAGNOSIS for ENGINE. In case a 1st trip DTC other than P0732 is shown, refer to applicable TROUBLE DIAGNOSIS FOR DTC .
- Stop vehicle.

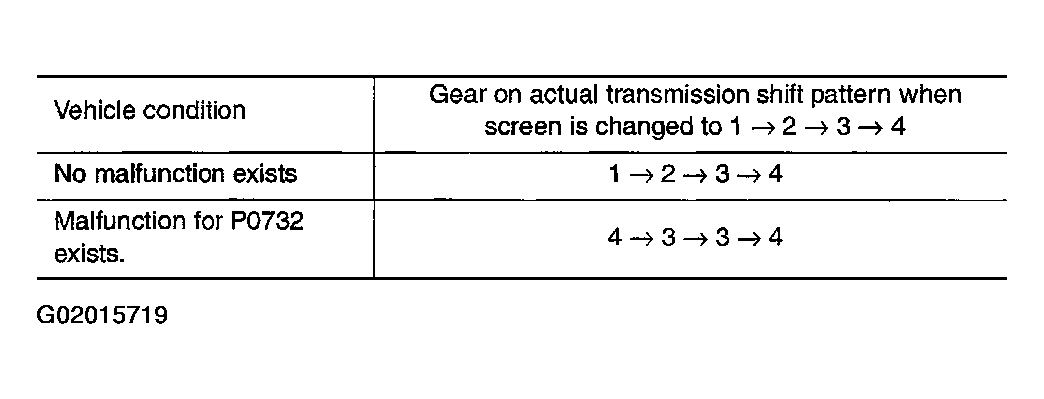

- Follow the instruction displayed. Check for normal shifting referring to Fig 3.
- Make sure that OK is displayed. (If NG is displayed, refer to DIAGNOSTIC PROCEDURE.)
Refer to DIAGNOSTIC PROCEDURE .
Refer to SHIFT SCHEDULE .
With GST
Follow the procedure With CONSULT-II.
