Diagnostic Trouble Code (DTC) Confirmation Procedure

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always drive vehicle at a safe speed.
If conducting this DTC CONFIRMATION PROCEDURE again, always turn ignition switch OFF and wait at least 5 seconds before continuing.

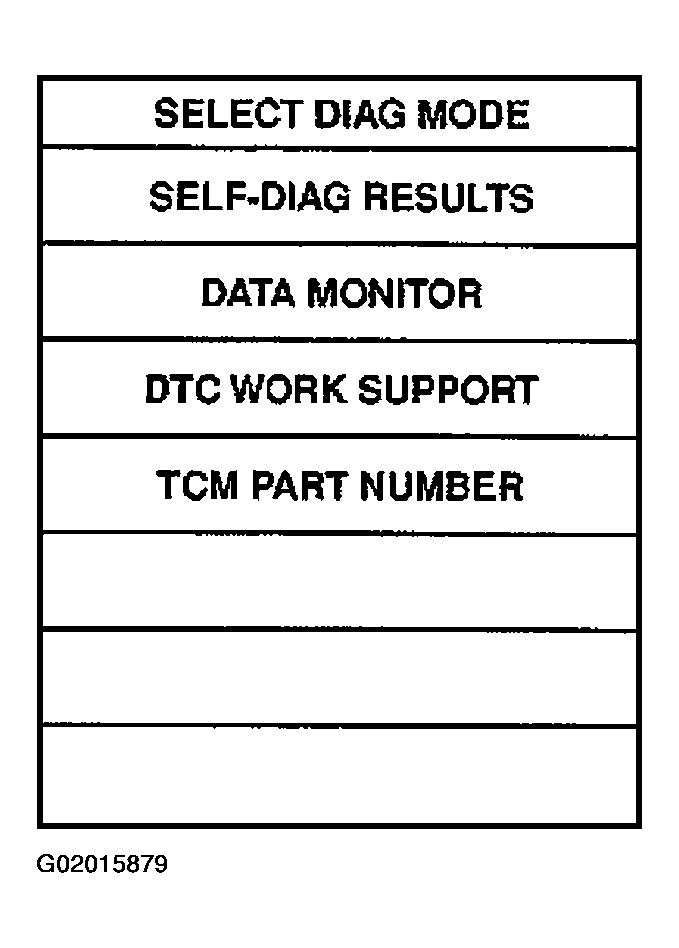

Fig 1: DTC Confirmation Procedure With CONSULT -II (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

Turn ignition switch ON and select DATA MONITOR mode for A/T with CONSULT-II.

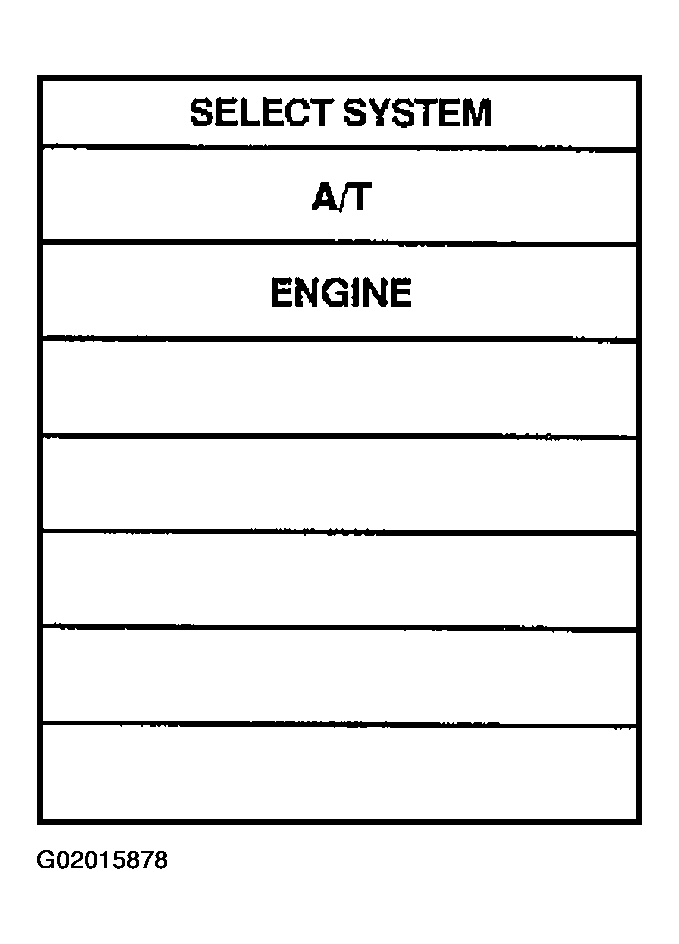

Fig 2: DTC Confirmation Procedure With CONSULT -II (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16 MPH).

Without CONSULT-II

Start engine.
Drive vehicle under the following conditions:
Selector lever in D and vehicle speed higher than 25 km/h (16 MPH).
Perform self-diagnosis.
Refer to procedure (No Tools).

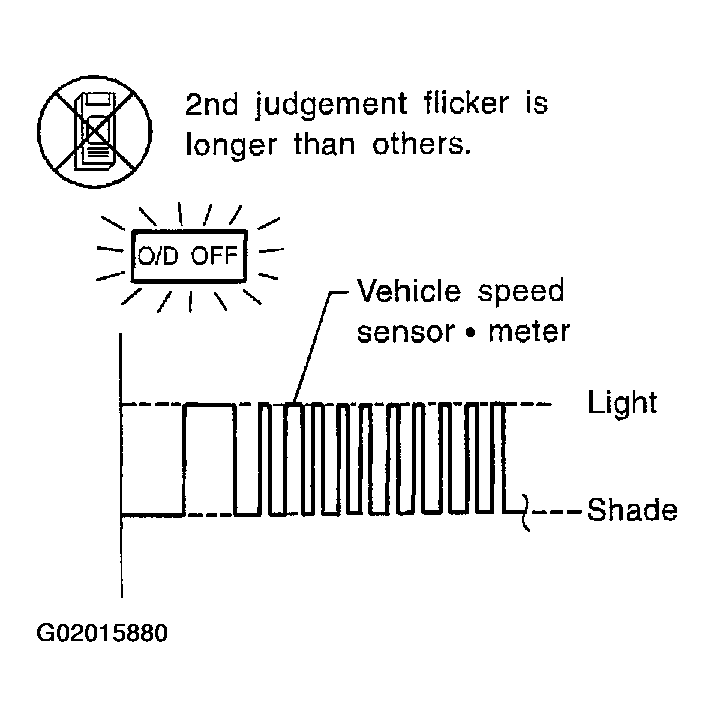

Fig 3: DTC Confirmation Procedure Without CONSULT -II
Courtesy of NISSAN MOTOR CO., U.S.A.
