Final Drive Components

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

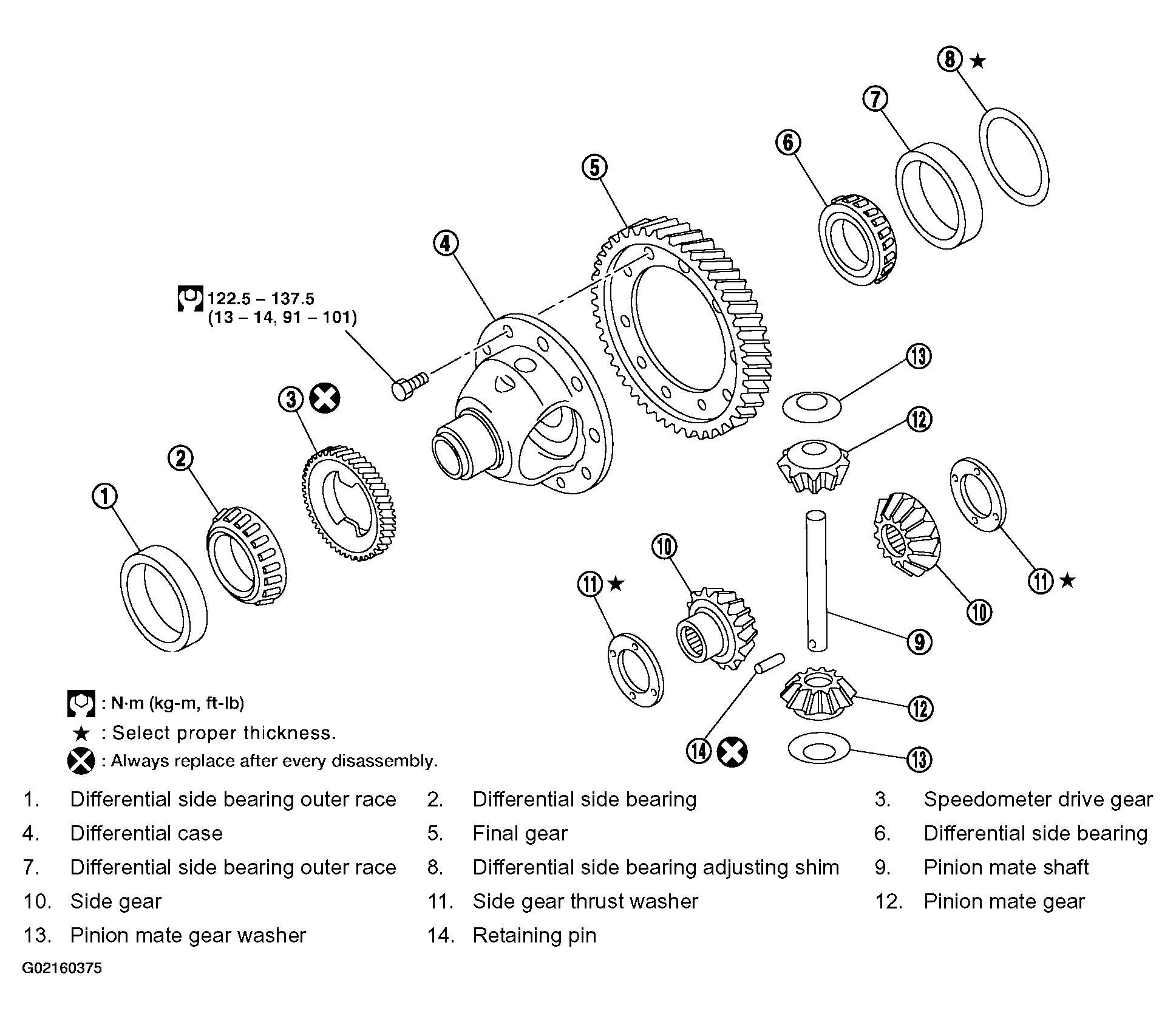

Fig 1: Exploded View Of Final Drive Components
G02160375Courtesy of NISSAN MOTOR CO., U.S.A.
