Control Valve Upper Body: Components

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

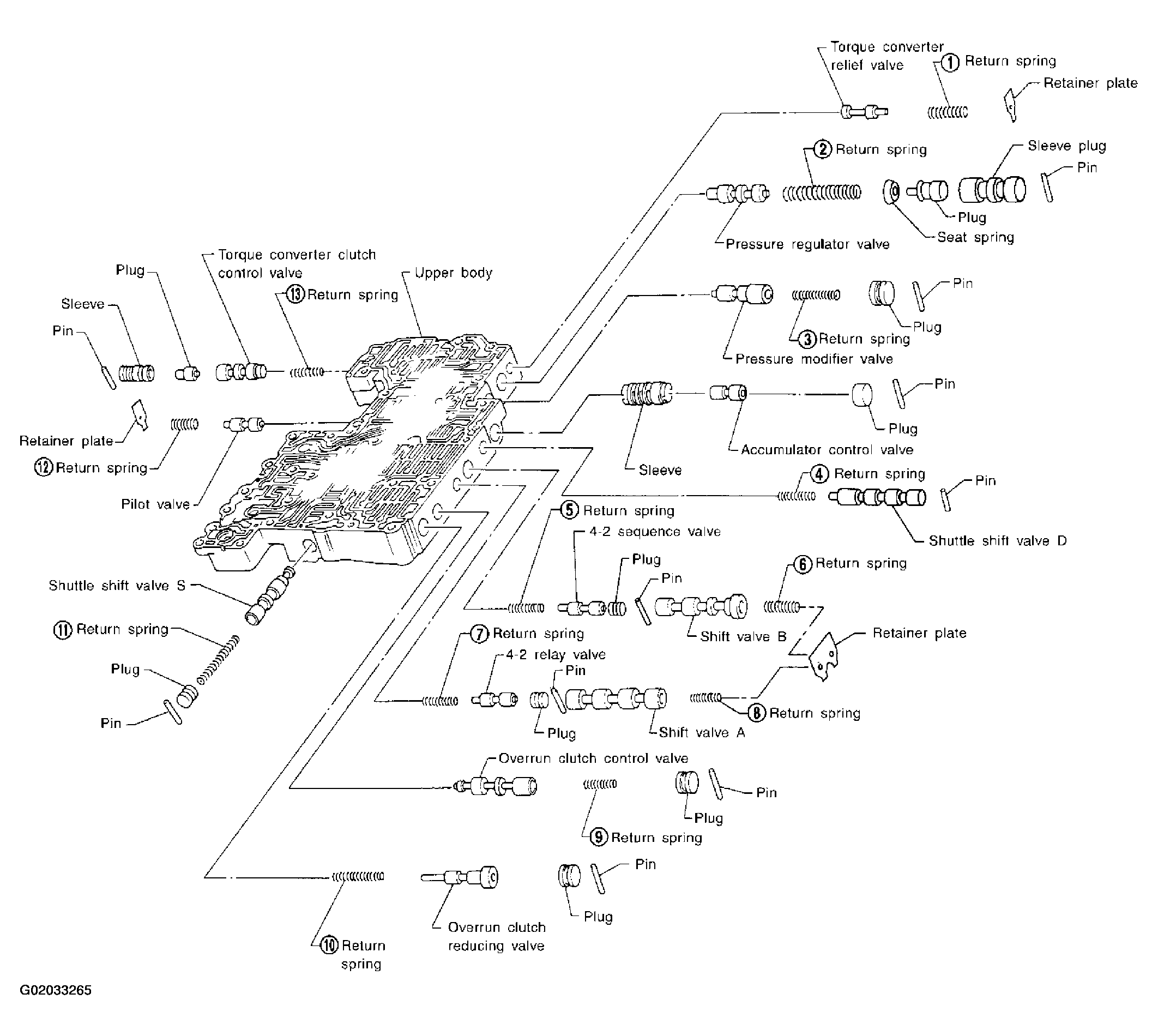

Fig 1: Exploded View Of Control Valve Upper Body

Courtesy of NISSAN MOTOR CO., U.S.A.

Apply ATF to all components before their installation.

Numbers preceding valve springs correspond with those shown in SDS on page RETURN SPRINGS .
