Shift Lock Solenoid

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Check operation by applying battery voltage to the CVT device harness connector.

CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

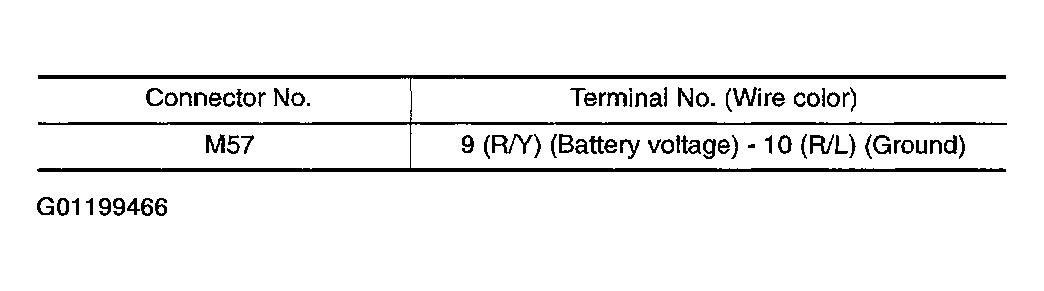

Fig 1: Shift Lock Solenoid Check Table

Courtesy of NISSAN MOTOR CO., U.S.A.

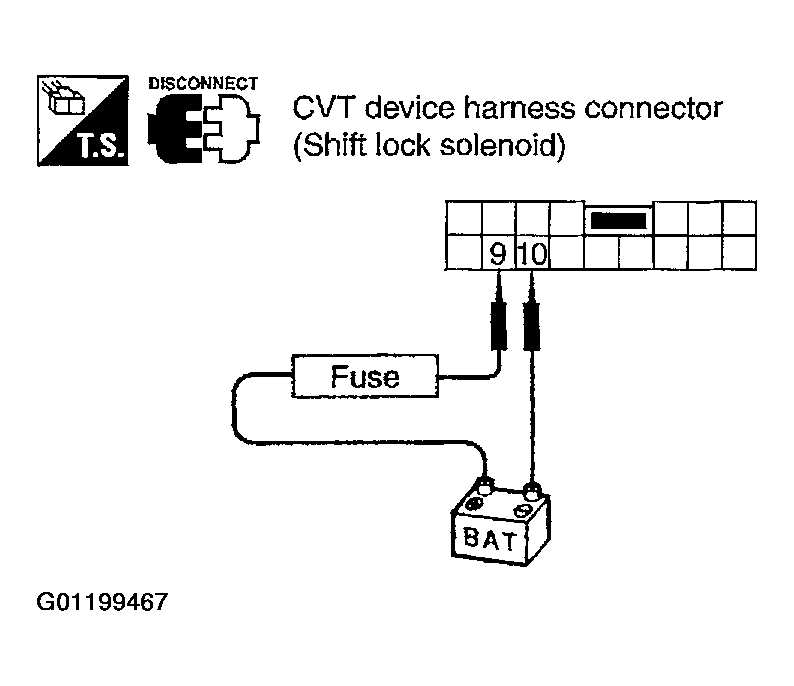

Fig 2: Checking Operation By Applying Voltage To CVT

Courtesy of NISSAN MOTOR CO., U.S.A.
