Wiring Diagram - CVT - PSSCVT-P
WARNING:
This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

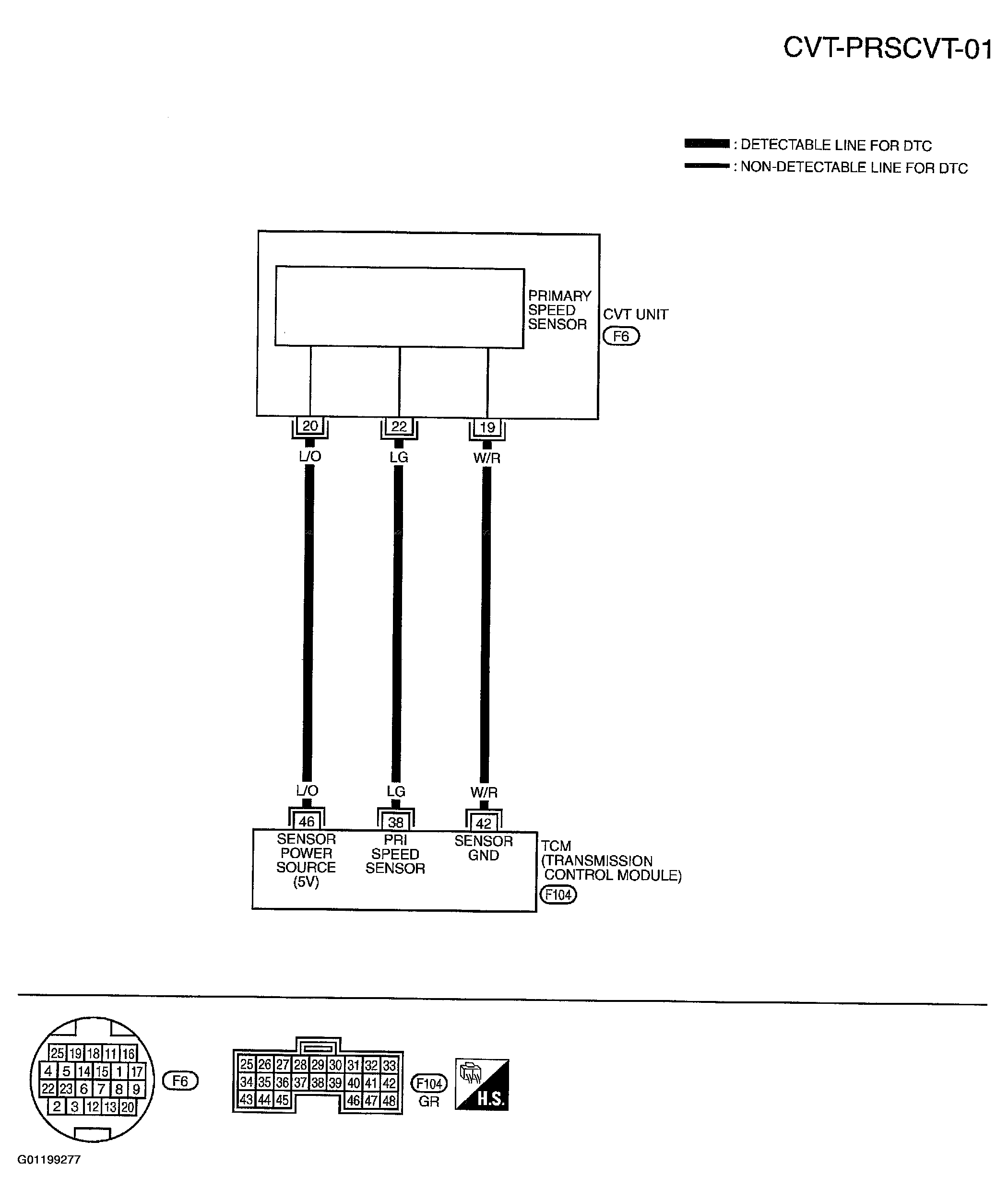

Fig 1: Displaying Wiring Diagram CVT-PSSCVT-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Remarks: Specification data are reference values.

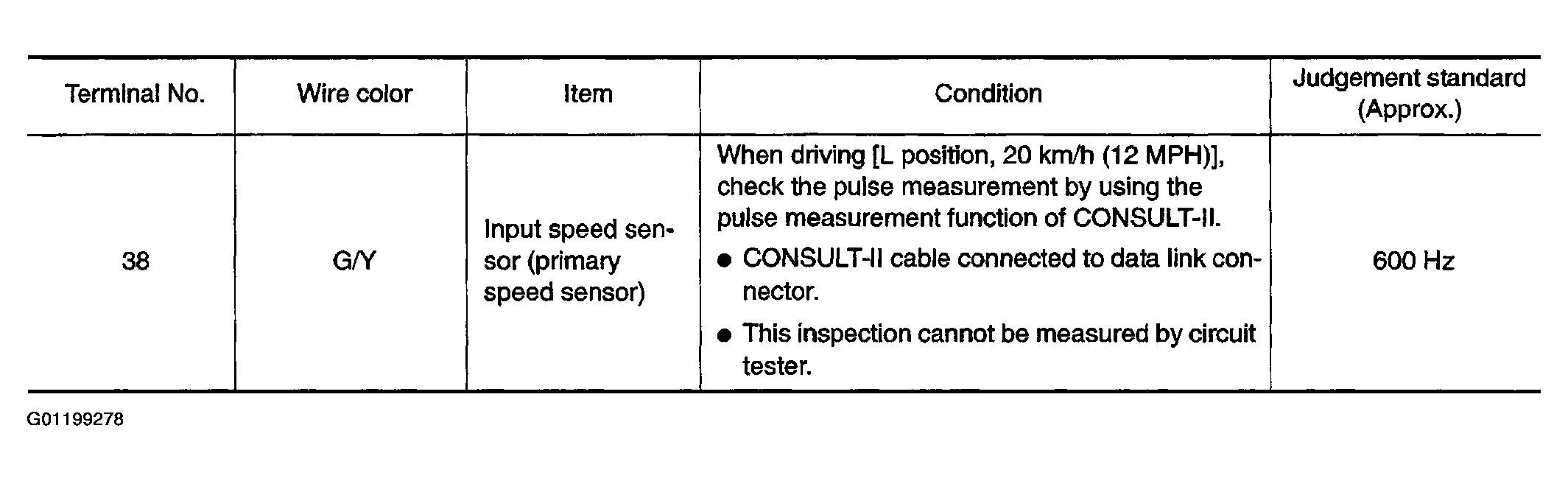

Fig 2: Data Reference Values Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
