DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always drive vehicle at a safe speed.
Be careful not to rev engine into the red zone on the tachometer.
Before starting DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE, confirm Hi or Mid or Low fixation by PRI SPEED and VEHICLE SPEED on DATA MONITOR MODE.
If hi-geared fixation, go to diagnostic procedure soon.

NOTE: If DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE has been previously performed, always turn ignition switch OFF and wait at least 5 seconds before performing the next test.

After the repair, touch ERASE on SELF-DIAG RESULTS and then perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

Turn ignition switch ON and select DATA MONITOR mode for TRANSMISSION with CONSULT-II.
Make sure that output voltage of CVT fluid temperature sensor is within the range below.
FLUID TEMP SEN: 1.0 - 2.0V

If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid)

Fig 1: CONSULT-II TRANSMISSION Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select DATA MONITOR mode for TRANSMISSION with CONSULT-II.
Start engine and maintain the following conditions for at least 30 consecutive seconds.
TEST START FROM 0 km/h (0 MPH)

CONSTANT ACCELERATION: Keep 30 sec or more

VEHICLE SPEED: 10 km/h (6 MPH) or more

ACC PEDAL OPEN: More than 1/8

Selector lever: D position

ENG SPEED: 450 rpm or more

If the check result is NG, GO TO DIAGNOSTIC PROCEDURE .

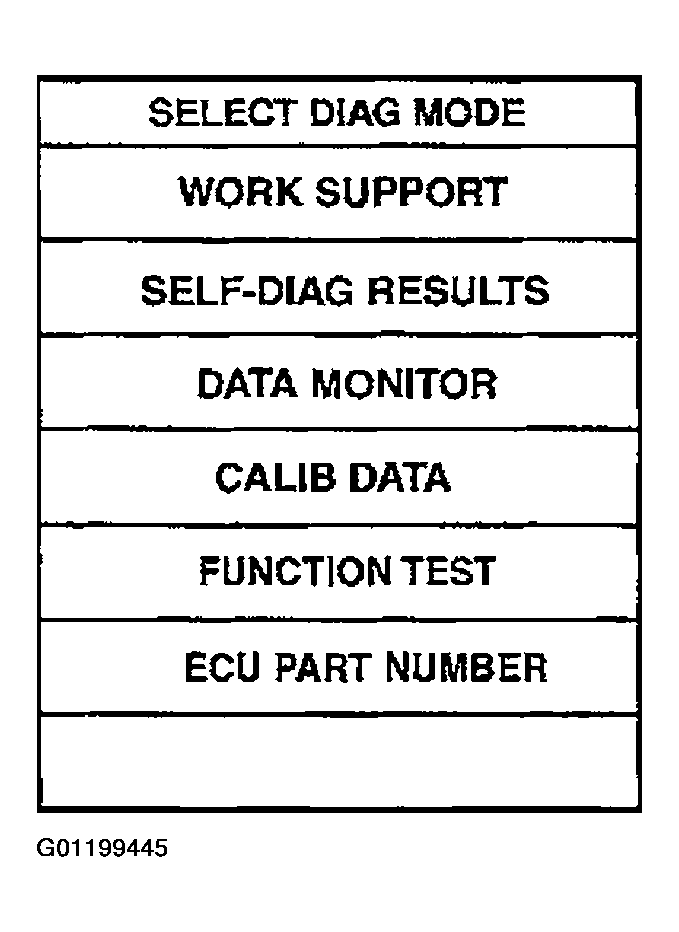

Fig 2: CONSULT-II SELECT DIAG MODE Display
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure With CONSULT-II.
