Removal And Installation Procedure For CVT Unit Connector: Installation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Align delta marking on CVT unit harness connector terminal body with square marking on bayonet ring, insert CVT unit harness connector, and then rotate bayonet ring clockwise.

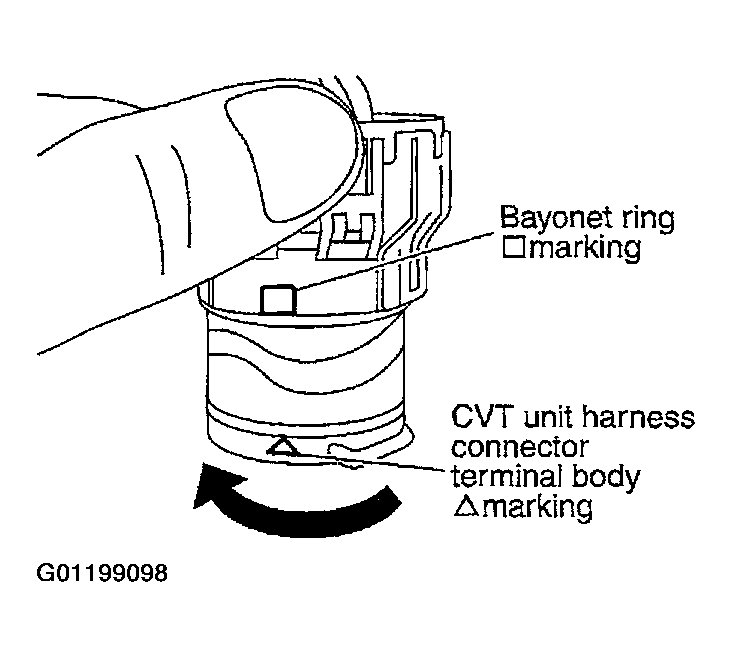

Fig 1: Aligning Markings
Courtesy of NISSAN MOTOR CO., U.S.A.
Rotate bayonet ring clockwise until delta marking on CVT unit harness connector terminal body is aligned with the slit on bayonet ring as shown in Fig 2 (correctly fitting condition), install CVT unit harness connector to CVT unit harness connector terminal body.

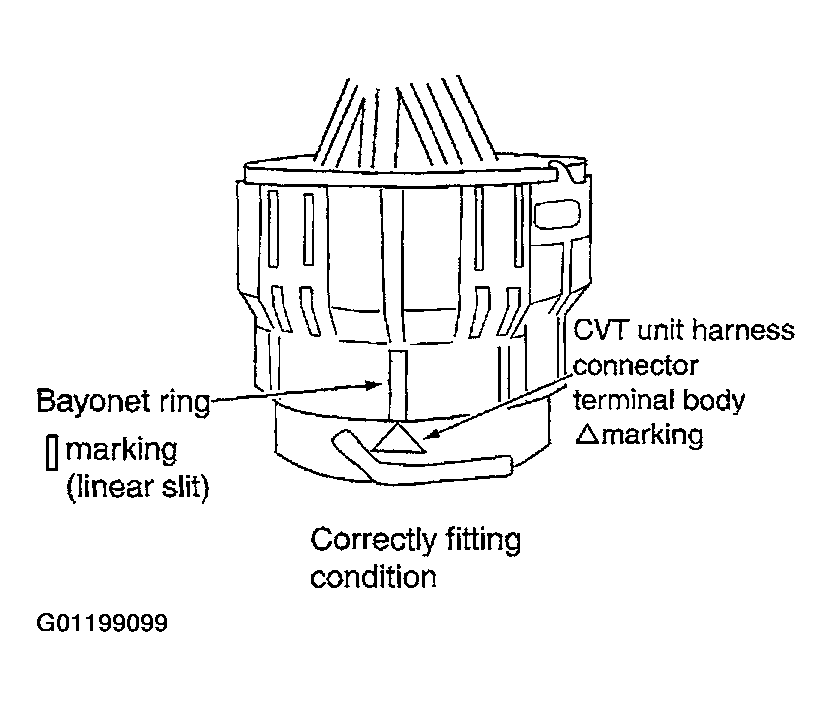

Fig 2: Aligning Delta Marking With Slit
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Securely align delta marking on CVT unit harness connector terminal body with bayonet ring slit. Then, be careful not to make a half fit condition as shown in Fig 3.

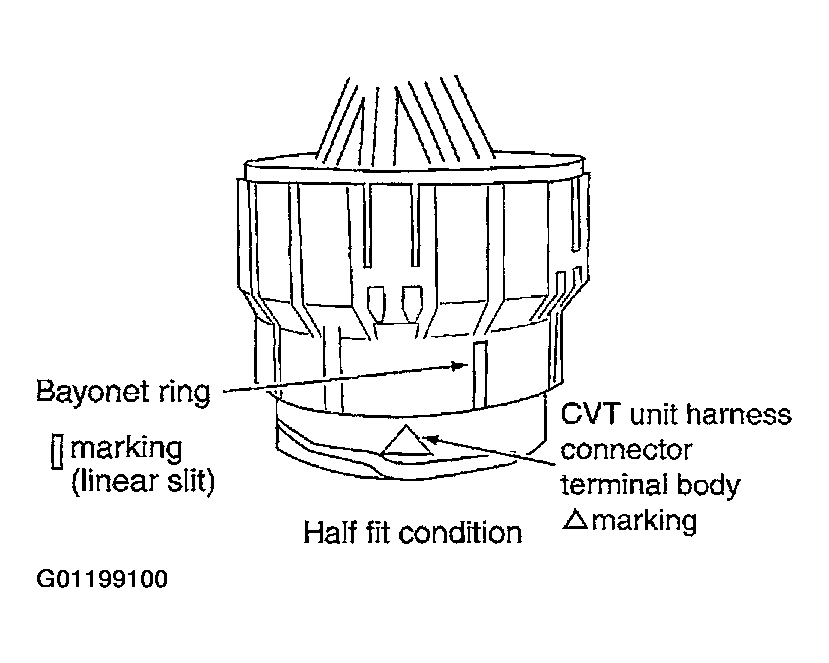

  Fig 3: Half Fit Condition With Body Slit
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Do not mistake the slit of bayonet ring for other dent portion.
