Removal And Installation: Installation

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Install the removed parts in the reverse order of the removal, while paying attention to the following work.

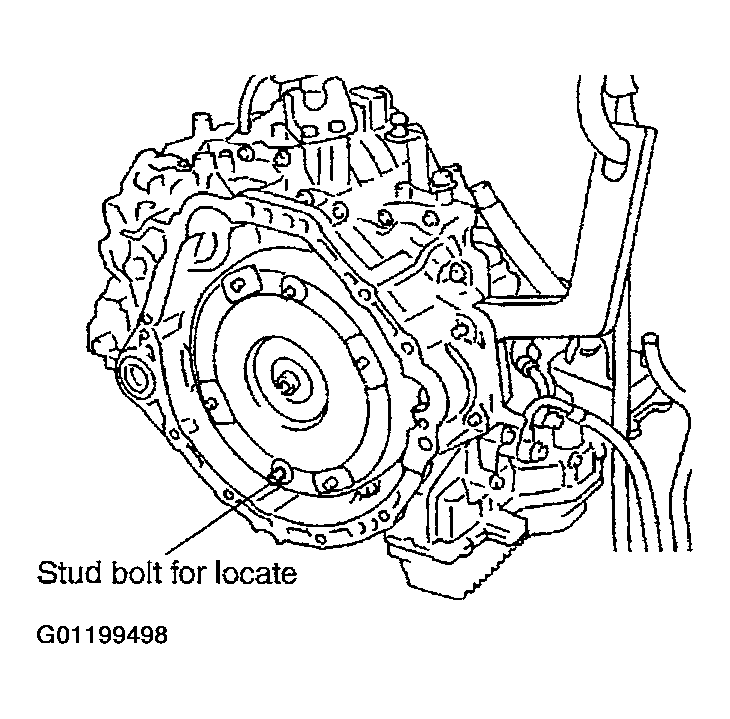

Screw and set the locate into the stud bolts for the torque converter locate.

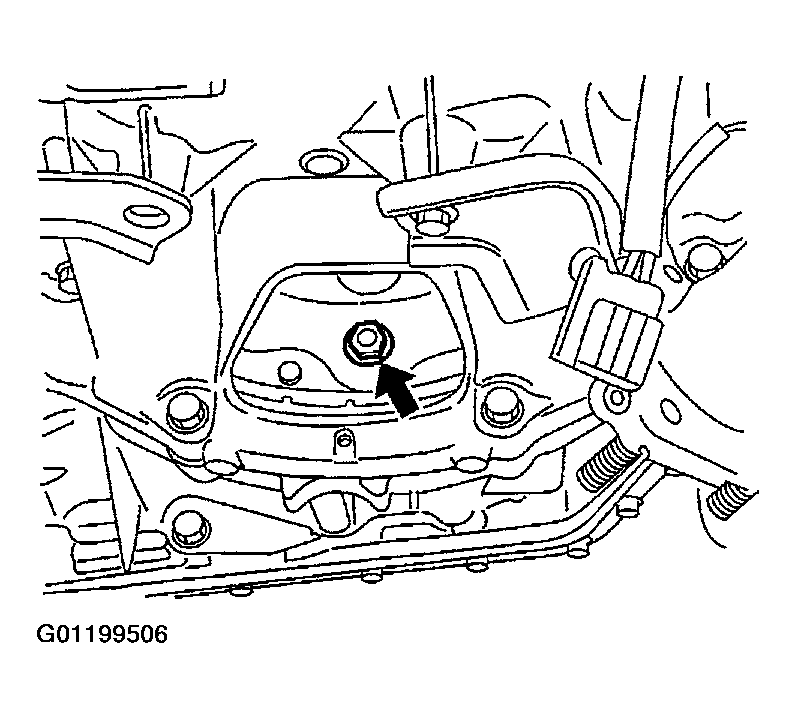

Fig 1: Setting Locate Into Stud Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

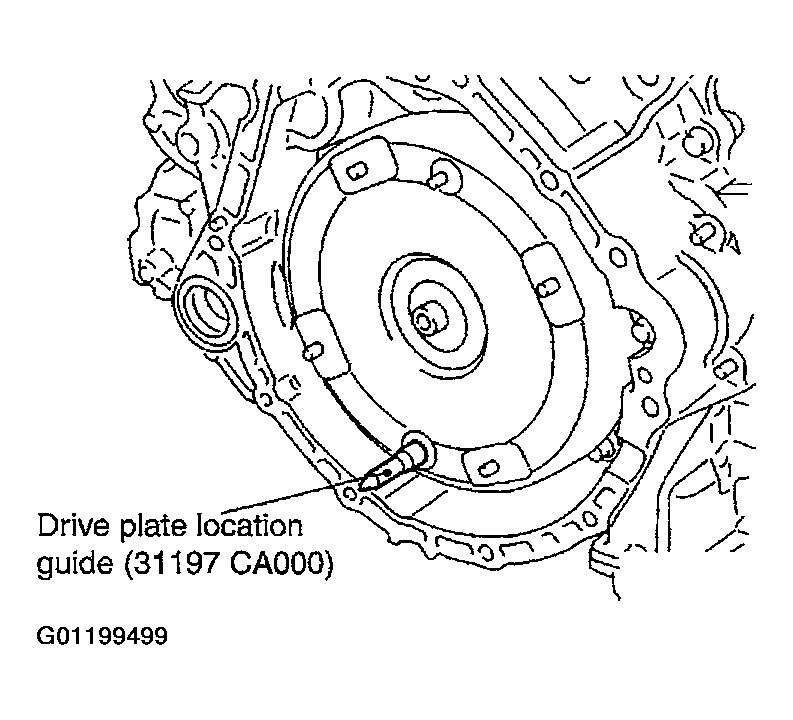

Rotate the torque converter for the locate to go down.

Fig 2: Rotating Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.

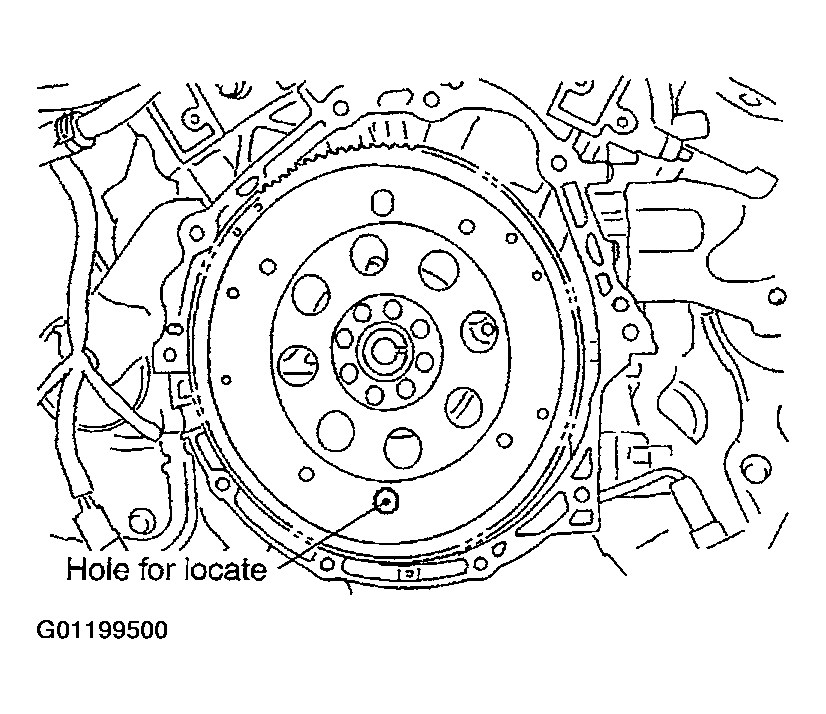

Rotate the drive plate for the hole of the drive plate locate to go down.

Fig 3: Rotating Drive Plate
Courtesy of NISSAN MOTOR CO., U.S.A.

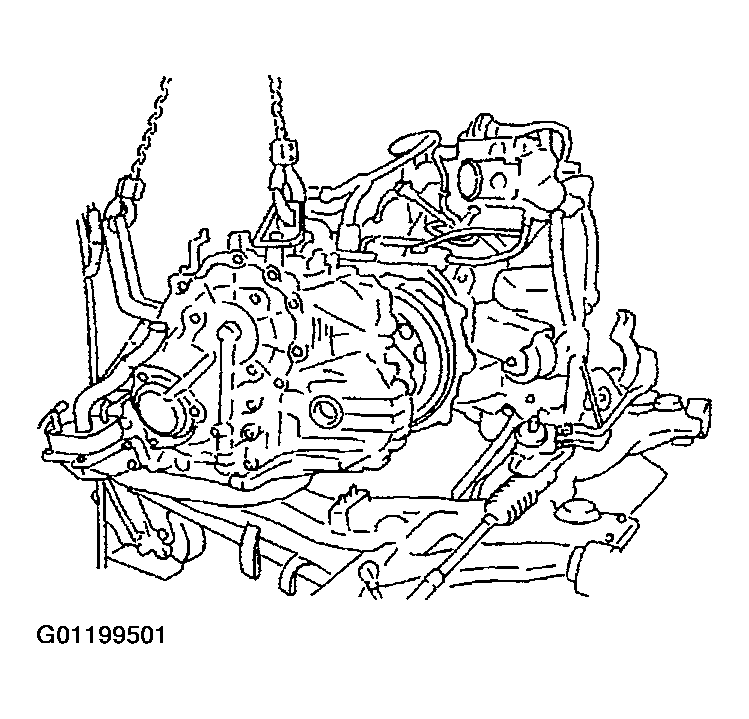

Installing transaxle assembly from engine assembly with a hoist.

Fig 4: Installing Transaxle Assembly To Engine Assembly With Hoist
Courtesy of NISSAN MOTOR CO., U.S.A.

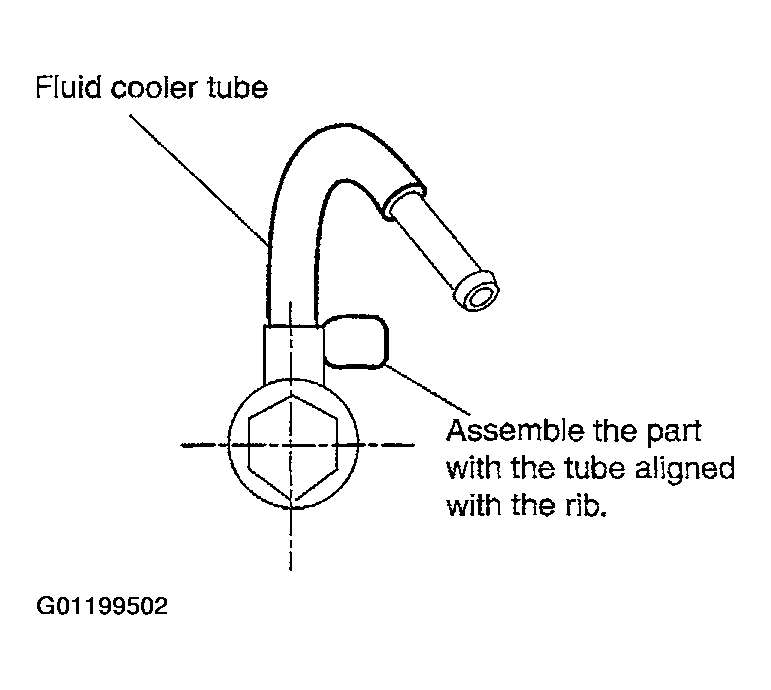

When installing fluid cooler tube to transaxle assembly, transaxle assembly the part with the tube aligned with the rib.

Fig 5: Installing Fluid Cooler Tube
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing transaxle to the engine, attach the fixing bolts in accordance with the following standard.

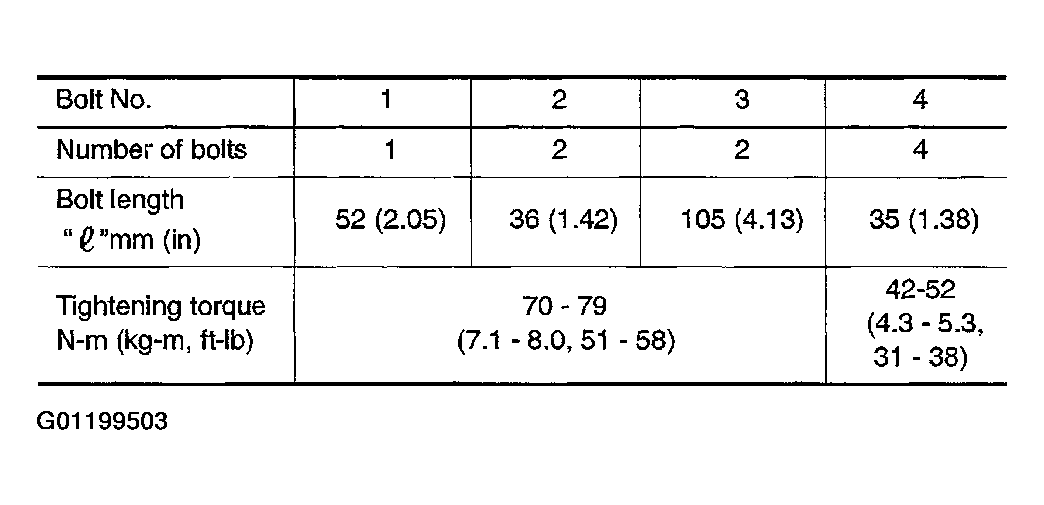

Fig 6: Bolts Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

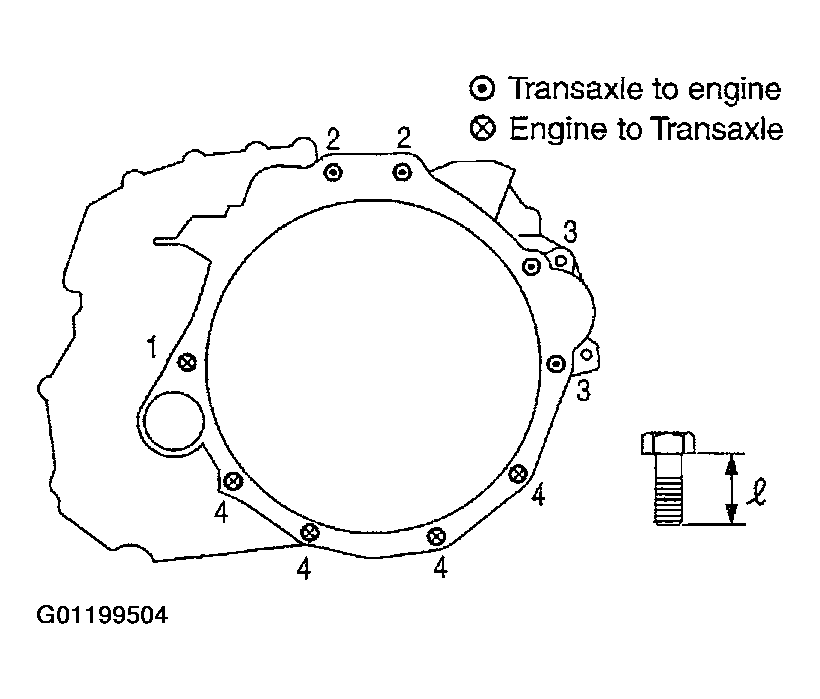

Fig 7: Attaching Bolts In Numerical Order
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing CVT fluid cooler valve assembly to the engine, attach the fixing bolts in accordance with the following standard.

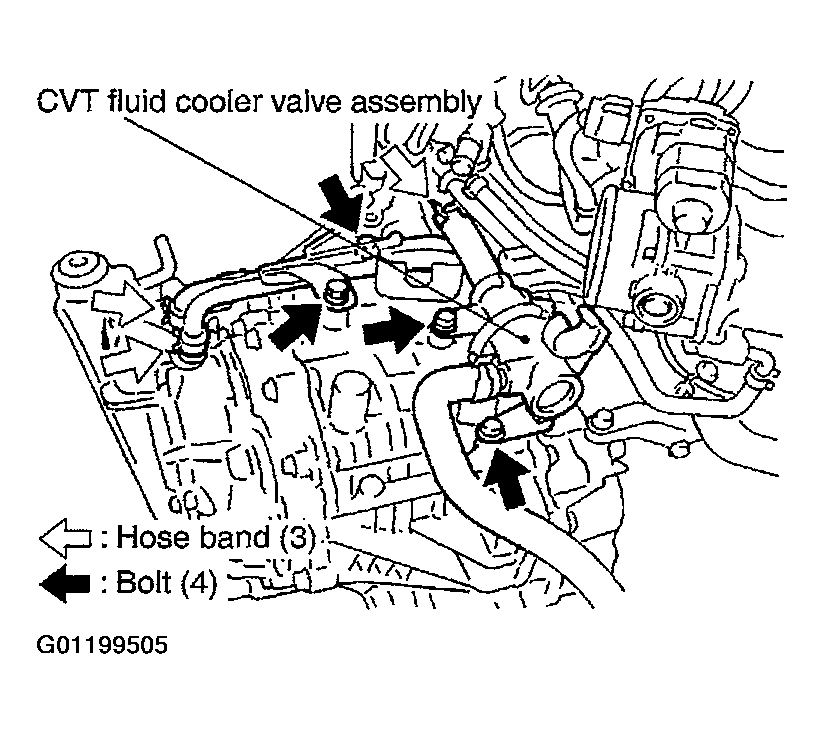

Fig 8: Installing CVT Fluid Cooler Valve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

: 28 - 32N-m (2.9 - 3.2kg-m, 21 - 23ft-lb)
Align the positions of tightening nuts for drive plate with those of the torque converter, and temporarily tighten the nuts. Then, tighten the nuts with the specified torque.

Fig 9: Tightening Nuts
Courtesy of NISSAN MOTOR CO., U.S.A.

: 44 - 58N-m (4.5 - 5.9kg-m, 33 - 42ft-lb)
CAUTION:
- When turning crankshaft, turn it clockwise as viewed from the front of the engine.
- When tightening the tightening bolts for the torque converter after fixing the crankshaft pulley bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts.
After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transaxle rotates freely without binding.
Install POS sensor. Refer to REMOVAL AND INSTALLATION Removal and Installation.
After completing installation, check for fluid leakage, fluid level, and the positions of CVT. Refer to CHECKING CVT FLUID , ADJUSTMENT OF CVT POSITION , CHECKING OF CVT POSITION .
When replacing the CVT assembly, erase EEP ROM in TCM. Refer to PRECAUTIONS FOR CVT ASSEMBLY REPLACEMENT .
