Removal of Electric Controlled Coupling Assembly

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the drive pinion flange wrench, Remove companion flange nut.

    Tool number: KV38108300 ( - )

  2. Using the puller, remove the companion flange.
  3. Remove coupling cover.
  4. Using flat tip screwdriver, remove Front oil seal from the coupling cover.

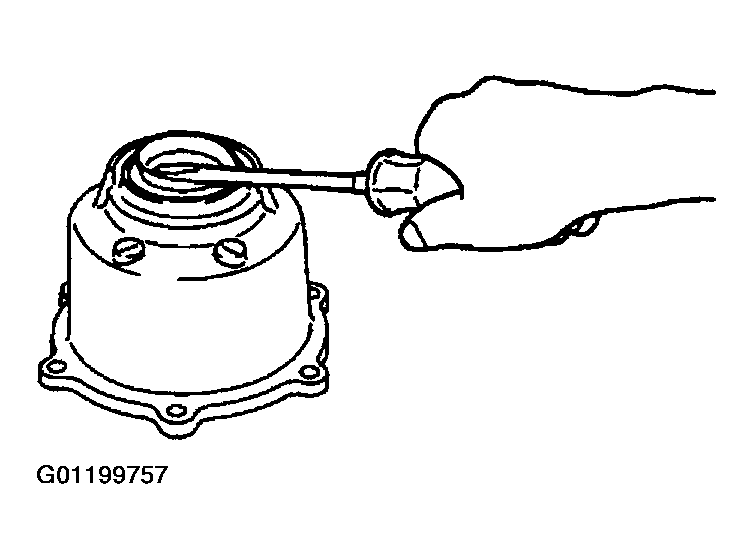

    Fig 1: Removing Front Oil Seal From Coupling Cover Using Flat Tip Screwdriver
    G01199757Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful not to damage the coupling cover.
  5. Remove electric controlled coupling assembly from the drive pinion.
  6. Using a puller, remove coupling front bearing from the electronically controlled coupling.

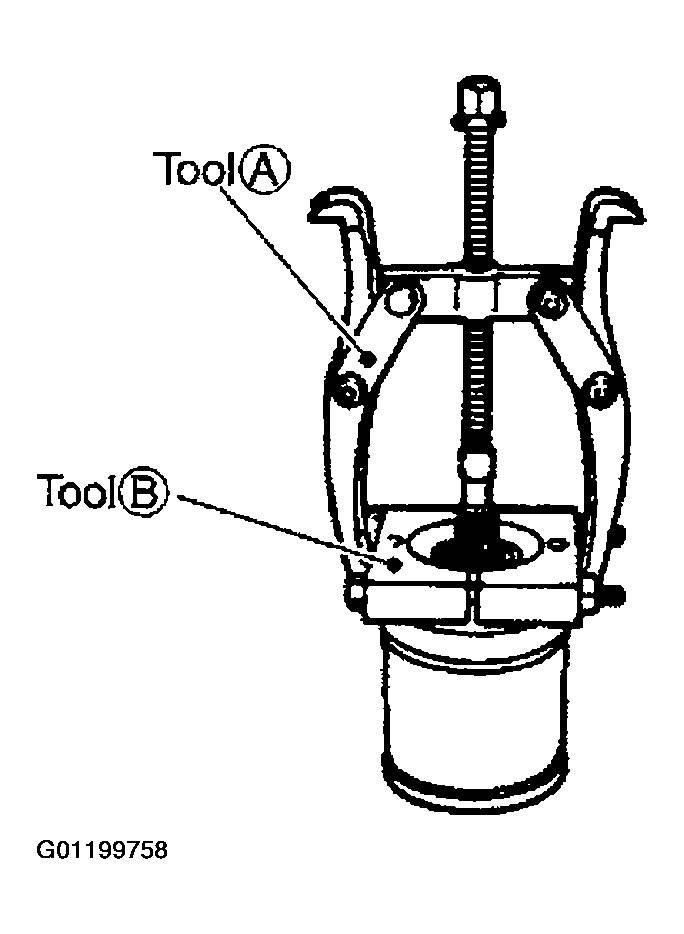

    Fig 2: Removing Coupling Front Bearing Using Puller
    G01199758Courtesy of NISSAN MOTOR CO., U.S.A.

    Tool number A: Commercial service tool

    B: Commercial service tool

    CAUTION: When the bearing is replaced with new one, reassemble the shim between bearing and the coupling.
