Can Communication System Inspection

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION
1. Start engine.
2. Select CAN DIAG SUPPORT MNTR in DATA MONITOR mode for METER A/C AMP with CONSULT-II.
3. Print out CONSULT-II screen.

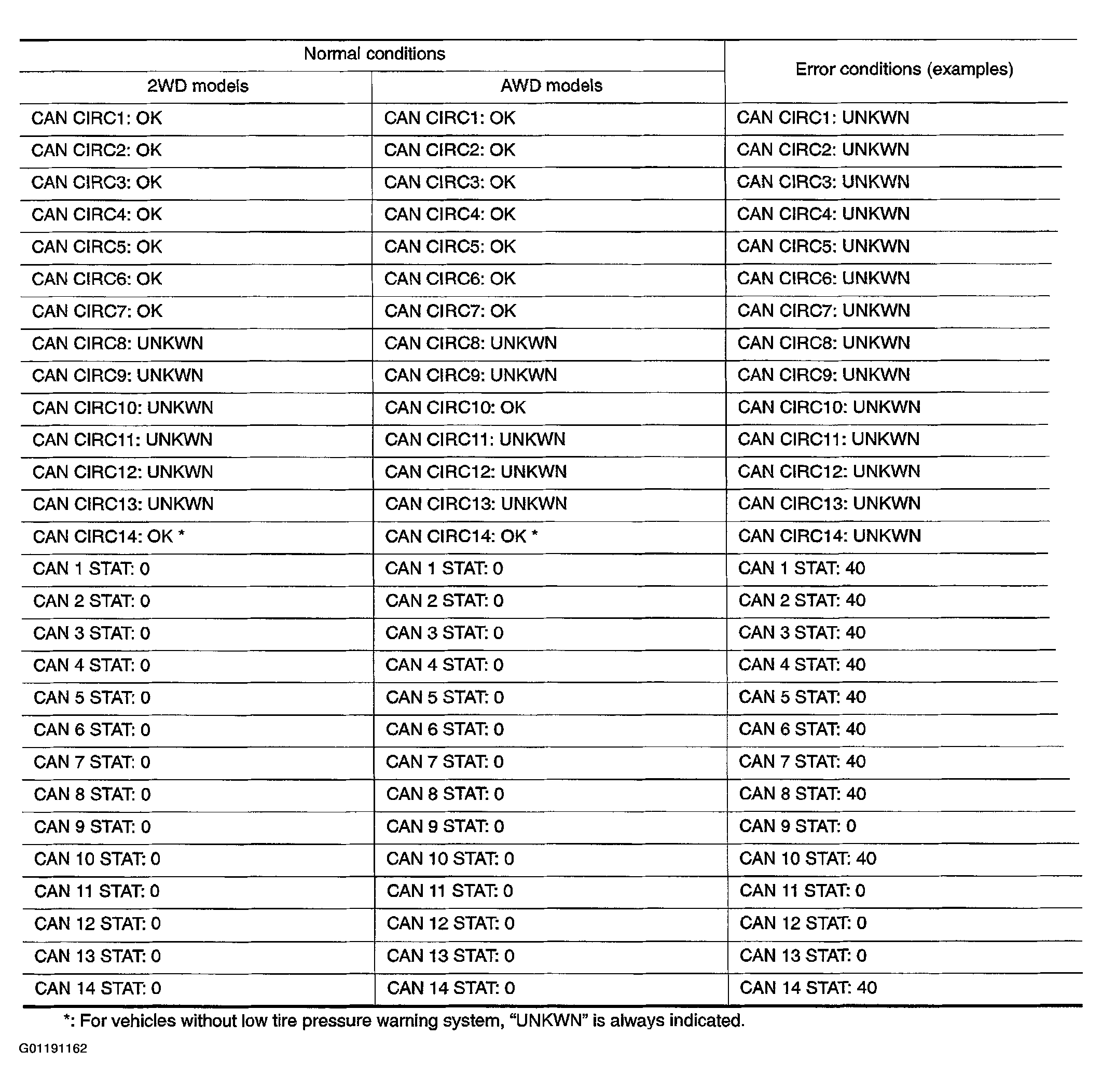

Fig 1: CAN Communication System Inspection - Checking CAN Communication
Courtesy of NISSAN MOTOR CO., U.S.A.
1. : GO TO CAN system. Refer to PRECAUTIONS WHEN USING CONSULT-II .
