Terminals And Reference Value For Combination Meter

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

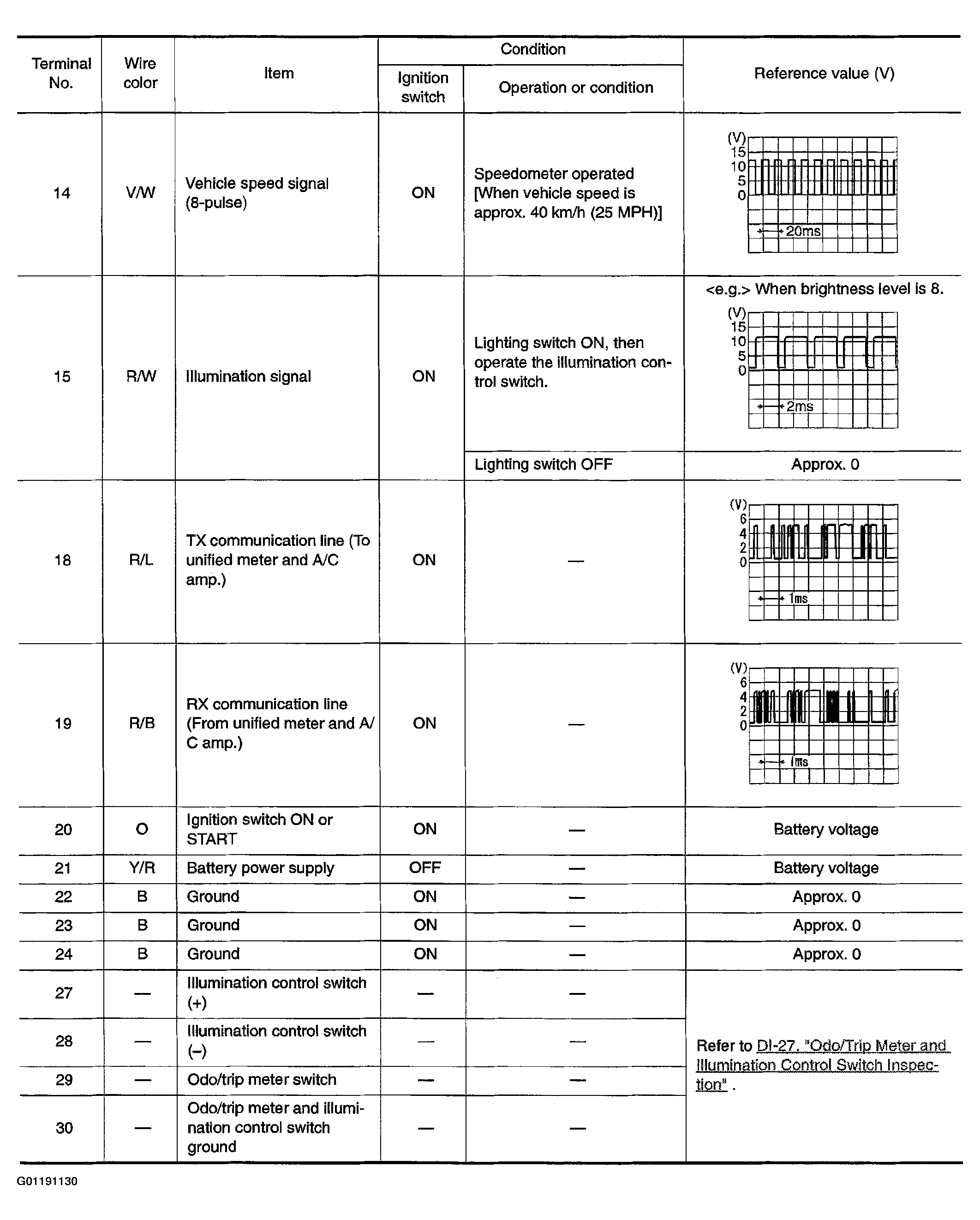

Fig 1: Terminals And Reference Value Chart For Combination Meter
G01191130Courtesy of NISSAN MOTOR CO., U.S.A.
