Band Servo Piston Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install D-rings to band servo piston retainer.
    • Apply ATF to D-rings.
    • Pay attention to position of each D-ring.
    Fig 1: Identifying Band Servo Piston D-Ring
    G01319773Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, OD servo return spring and spring retainer to band servo piston.
    Fig 2: Identifying Band Servo Piston Components
    G01319774Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.
    Fig 3: Installing E-Ring
    G01319775Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to the positions of the O-rings.
    Fig 4: Identifying O-Ring Of Small And Large Diameter
    G01319776Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.
    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer By Pushing It Inward
    G01319777Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to OD servo piston.
    • Apply ATF to D-ring.
    Fig 6: Installing D-Ring To OD Servo Piston
    G01319778Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install O-rings to OD servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to the positions of the O-rings.

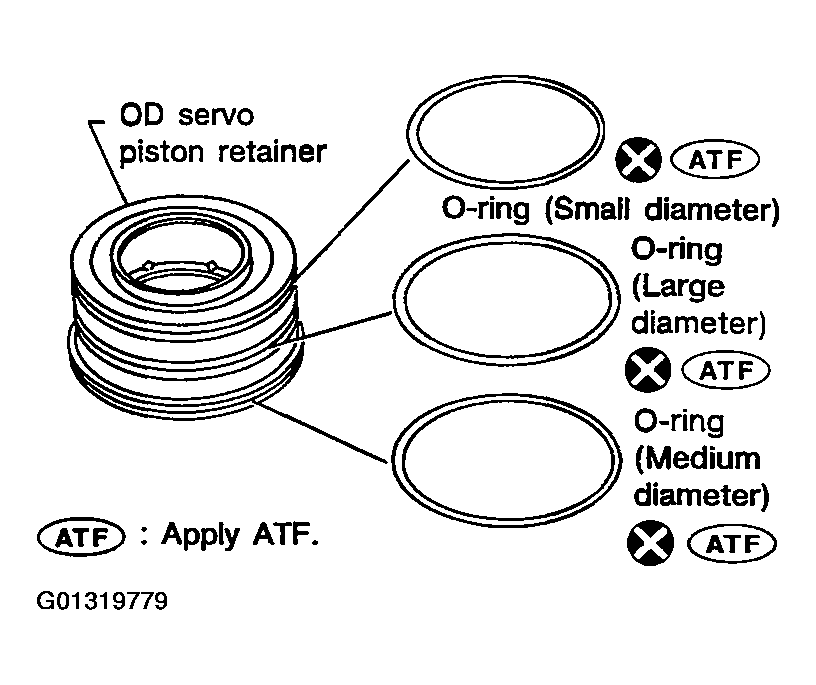

    Fig 7: Installing O-Rings To OD Servo Piston Retainer
    G01319779Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install OD servo piston to OD servo piston retainer.
    Fig 8: Installing OD Servo Piston To OD Servo Piston Retainer
    G01319780Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

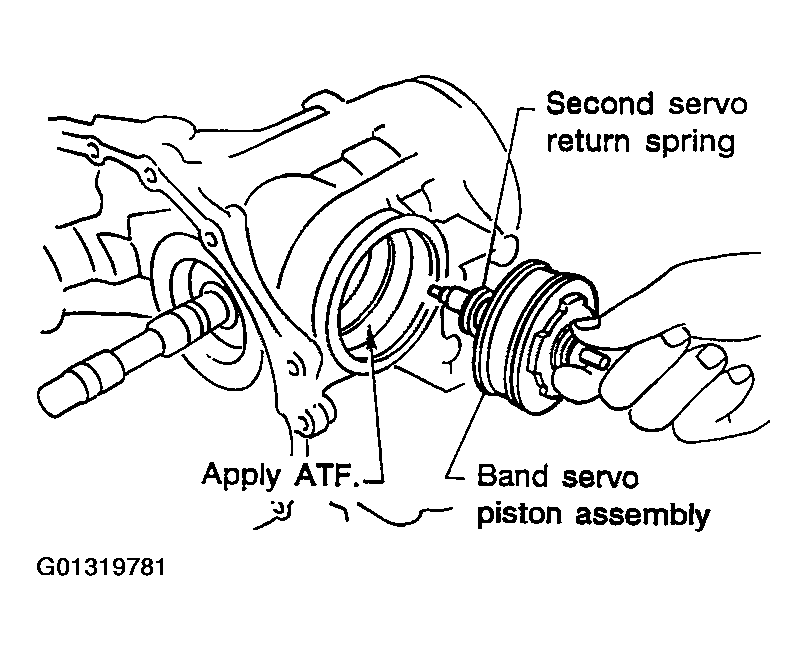

    Fig 9: Installing Band Servo Piston Assembly And 2nd Servo Return Spring To Transmission Case
    G01319781Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install OD servo piston assembly to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

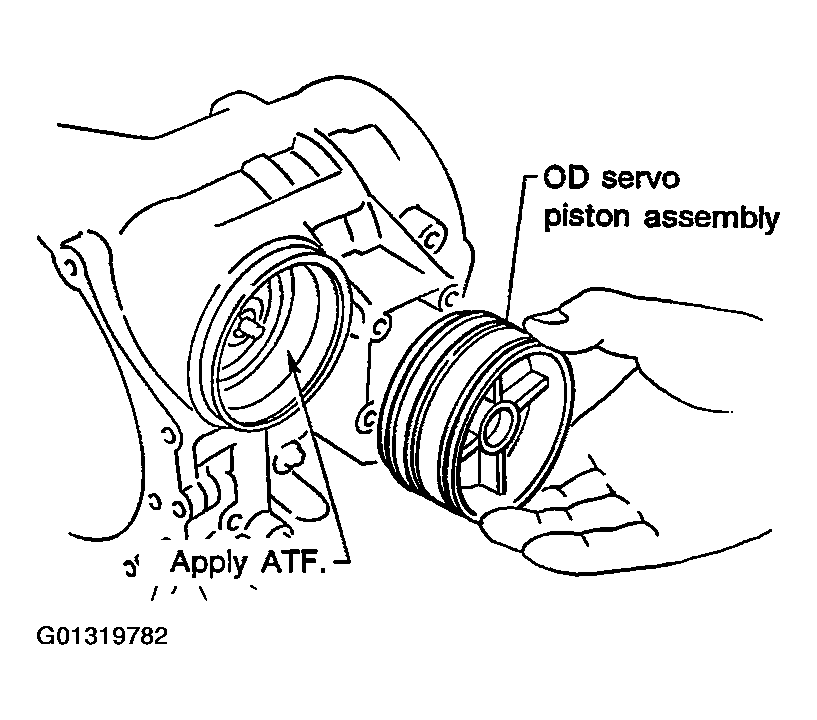

    Fig 10: Installing OD Servo Piston Assembly To Transmission Case
    G01319782Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install band servo piston snap ring to transmission case.

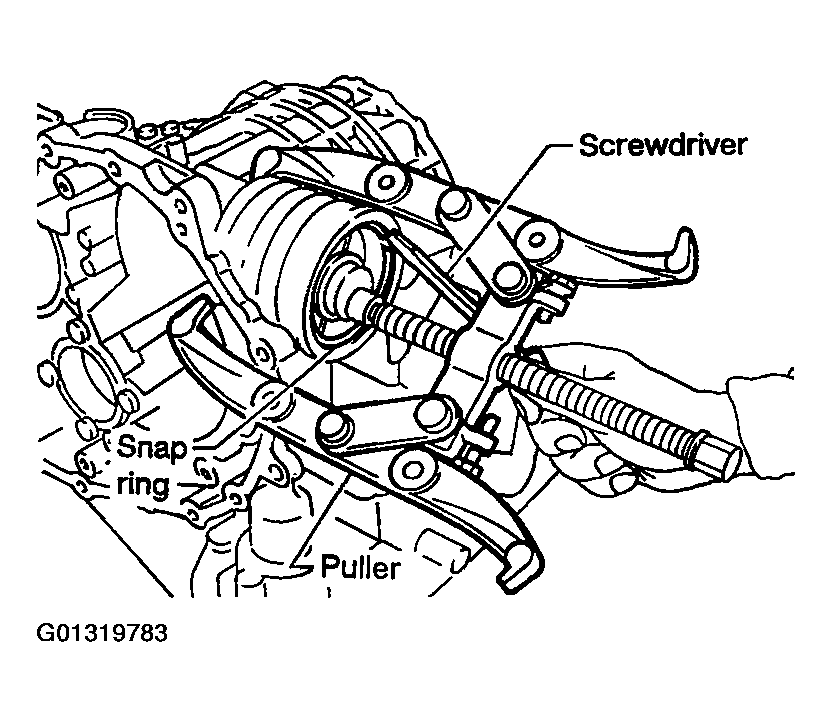

    Fig 11: Installing Band Servo Piston Snap Ring To Transmission Case
    G01319783Courtesy of NISSAN MOTOR CO., U.S.A.
