Hydraulic Control System

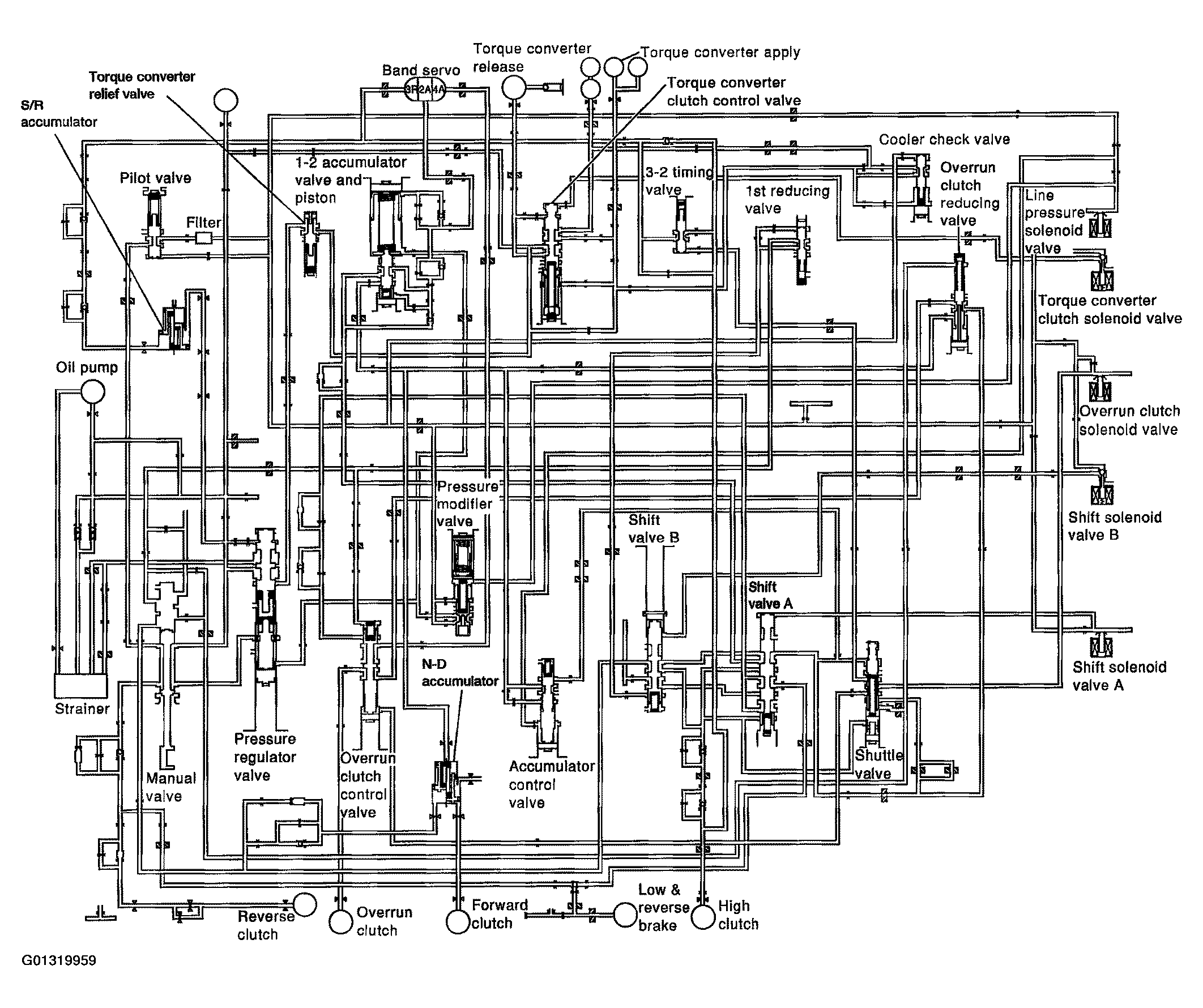

Fig 1: Automatic Transaxle System Hydraulic Control Circuit Diagram
G01319959Courtesy of NISSAN MOTOR CO., U.S.A.
