Removal and Installation of IPDM E/R: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove engine side cover RH.
  3. Remove 2 bolts and position coolant reservoir aside.
  4. Remove IPDM E/R upper cover.

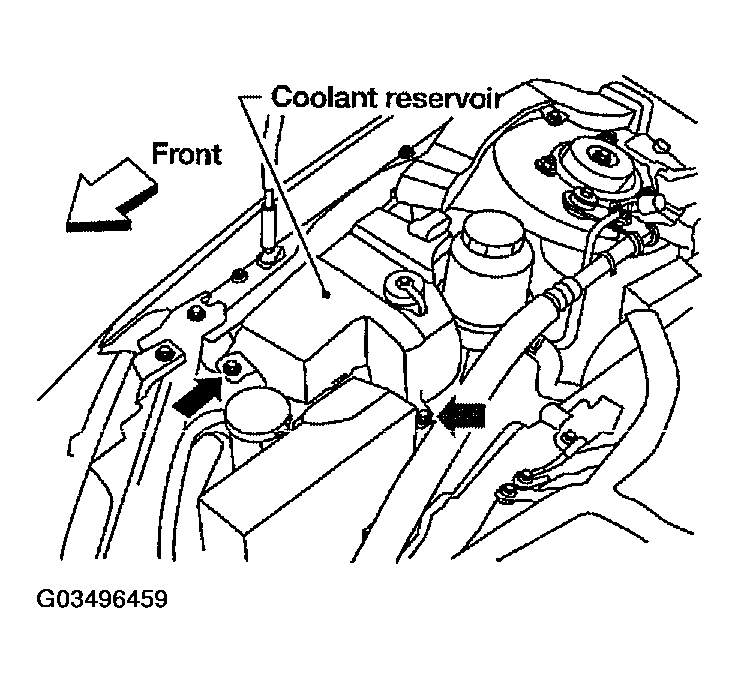

    Fig 1: Removing Bolts & Position Coolant Reservoir Aside
    G03496459Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove IPDM E/R harness cover.

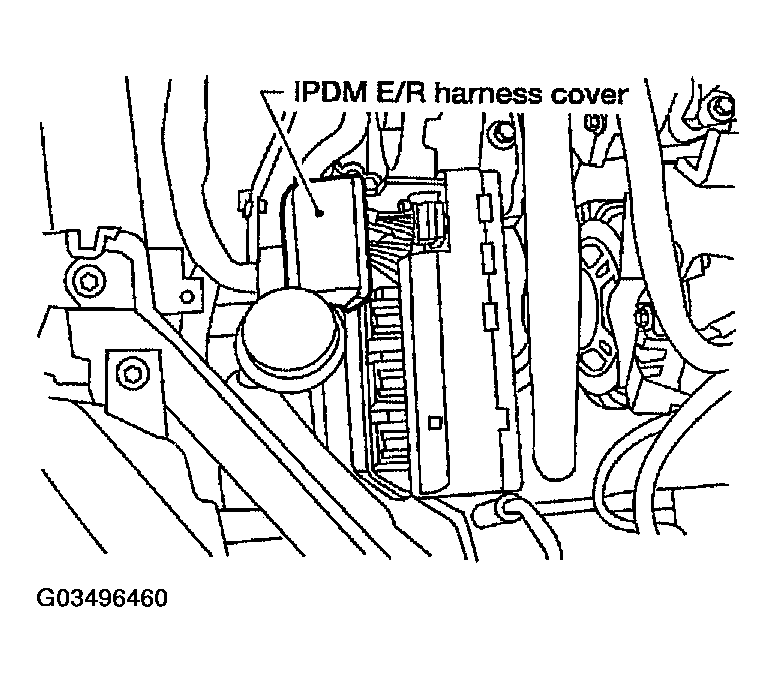

    Fig 2: Removing IPDM E/R Harness Cover
    G03496460Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Release 2 clips and pull IPDM E/R up from case.
  7. Disconnect IPDM E/R connectors and remove the IPDM E/R.

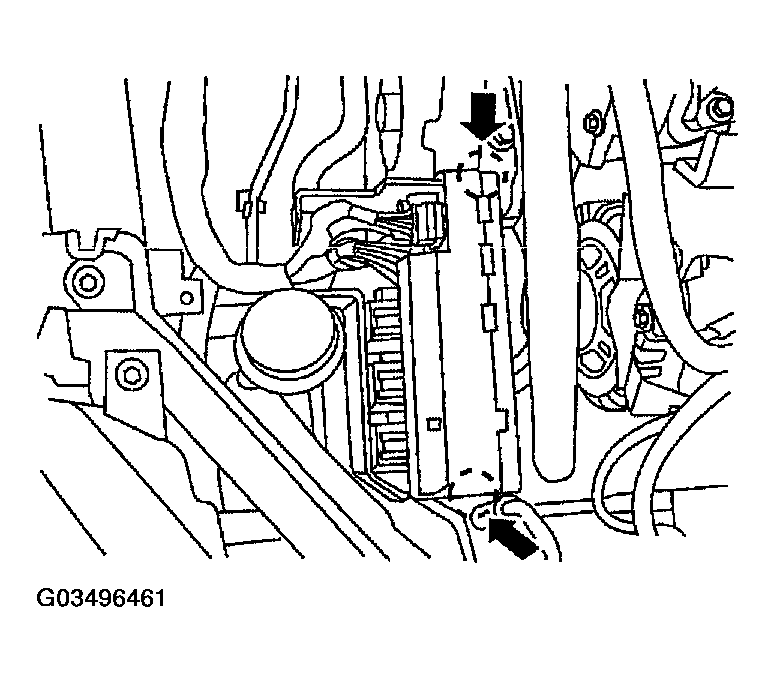

    Fig 3: Disconnecting IPDM E/R Connectors & IPDM E/R
    G03496461Courtesy of NISSAN MOTOR CO., U.S.A.
