Component Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
  2. Remove transfer shut off relay 1 and transfer shut off relay 2. Refer to , "LOCATION OF ELECTRICAL PARTS ".
  3. Apply 12V direct current between transfer shut off relay terminals 1 and 2.
  4. Check continuity between relay terminals 3 and 5.
    TERMINALS CONTINUITY REFERENCE

    Condition Continuity
    12V direct current supply between terminals 1 and 2 Yes
    OFF No

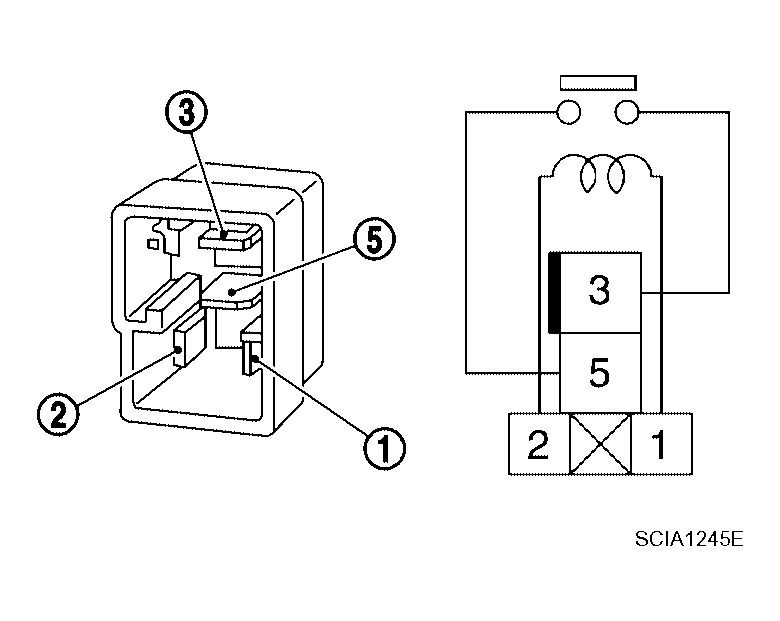

    Fig 1: Checking Continuity Between Terminals 3 And 5
    G04174811Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If NG, replace the transfer shut off relay 1 or 2. Refer to , "LOCATION OF ELECTRICAL PARTS ".
