How to Display SRT Status

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

WITH CONSULT-II

Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.

For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set, "INCMP" is displayed.

A sample of CONSULT-II display for SRT code is shown in the figure.

"INCMP" means the self-diagnosis is incomplete and SRT is not set.

"CMPLT" means the self-diagnosis is complete and SRT is set.

WITH GST

Selecting Service $01 with GST (Generic Scan Tool)

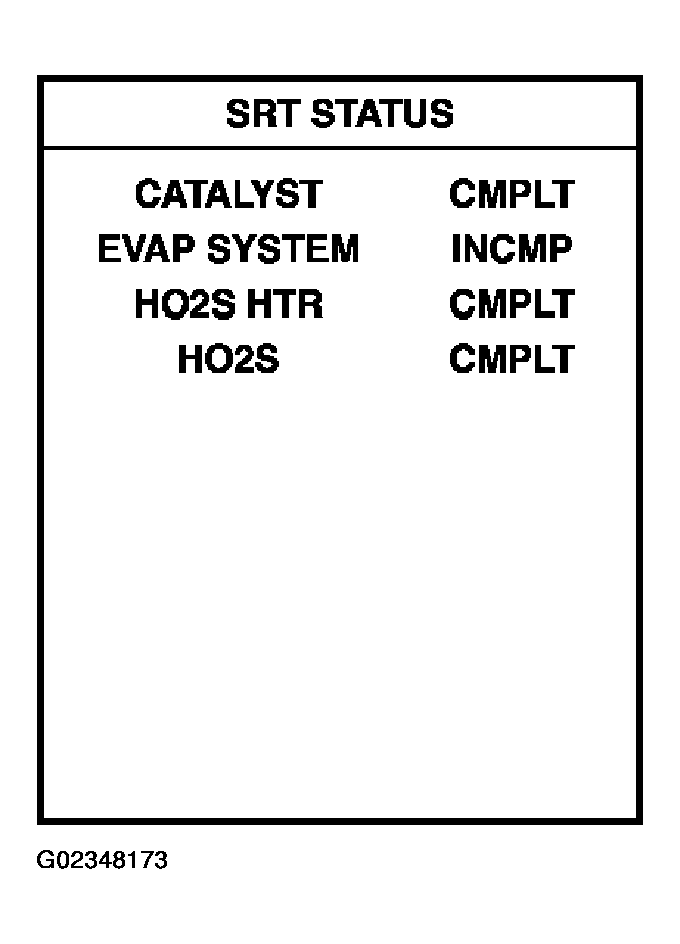

Fig 1: "SRT STATUS" Display On Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

NO TOOLS

A SRT code itself can not be displayed while only SRT status can be.

Turn ignition switch ON and wait 20 seconds.
SRT status is indicated as shown below.
- When all SRT codes are set, MIL lights up continuously.
- When any SRT codes are not set, MIL will flash periodically for 10 seconds.

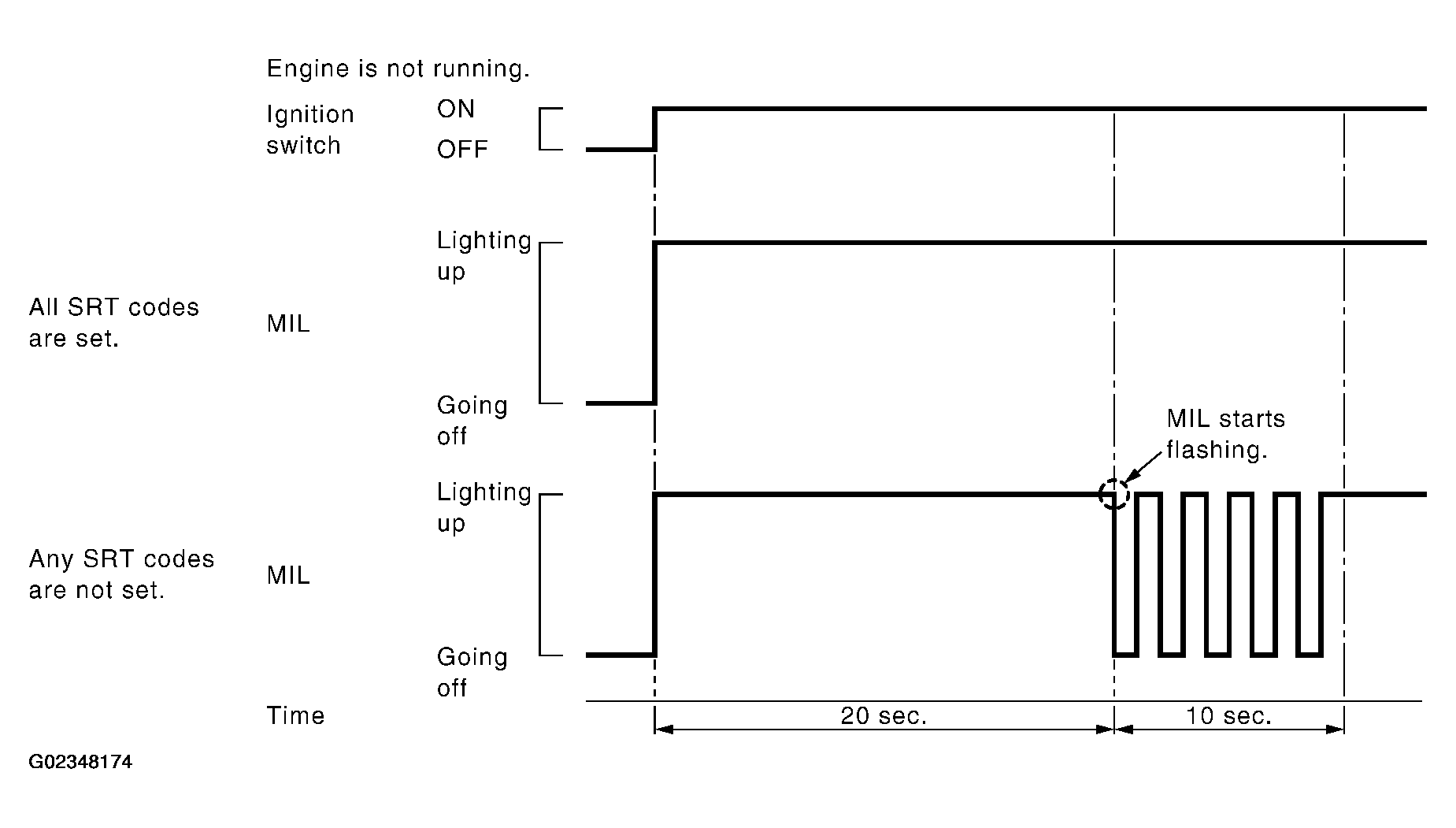

  Fig 2: SRT Codes Graph (Set/Not Set)
  Courtesy of NISSAN MOTOR CO., U.S.A.
