Inspection 4: Pressure Sensor And Circuit Between Pressure Sensor And VDC/TCS/Abs Control Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Procedure

CHECK SELF-DIAGNOSTIC RESULTS (1)

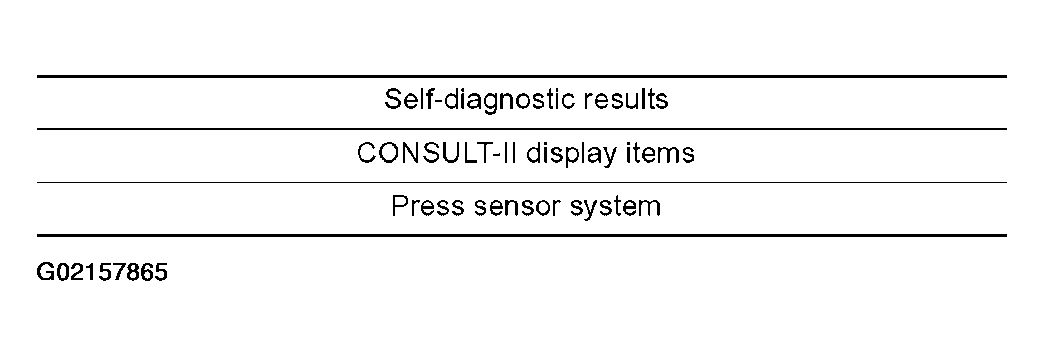

Fig 1: Pressure Sensor And Circuit Between Pressure Sensor And VDC/TCS/ABS Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

Does "PRESSURE SENSOR" appear on self-diagnosis display?
1. YES : GO TO 2.
2. NO : INSPECTION END

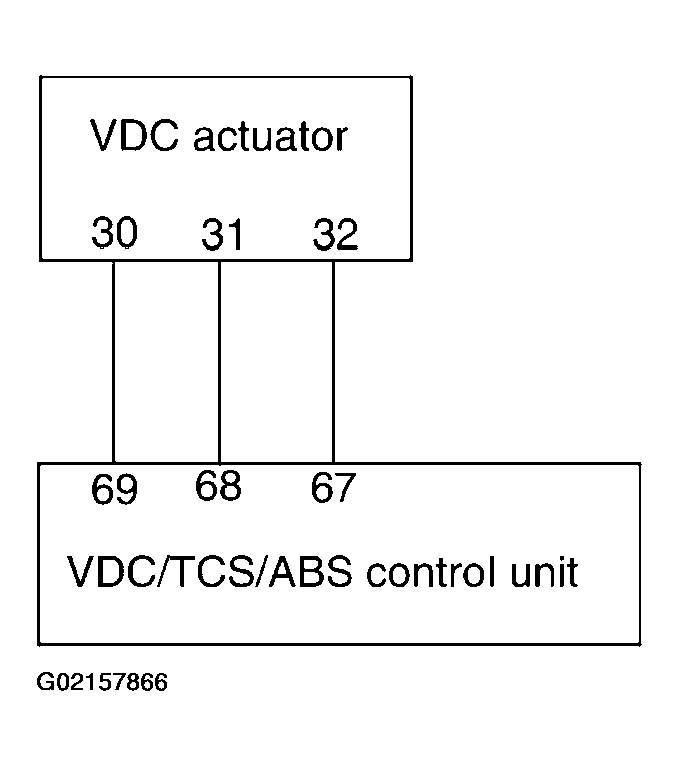

Fig 2: VDC/TCS/ABS Control Unit Terminal Connection
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SELF-DIAGNOSTIC RESULTS (2)
1. Turn ignition switch OFF and disconnect VDC actuator (pressure sensor) connector and VDC/TCS/ABS control unit connector. Then reconnect them securely.
2. Perform VDC/TCS/ABS control unit self-diagnosis again.
OK or NG
1. OK : Poor connection of connectors. Repair or replace suspect connector. Perform self-diagnosis again.
2. NO : GO TO 3.
CHECKING PRESSURE SENSOR CIRCUIT
1. Turn ignition switch OFF and disconnect VDC actuator (pressure sensor) connector and VDC/TCS/ABS control unit connector.
2. Check continuity between VDC/TCS/ABS control unit harness connector E118 and VDC actuator (pressure sensor) harness connector E50.

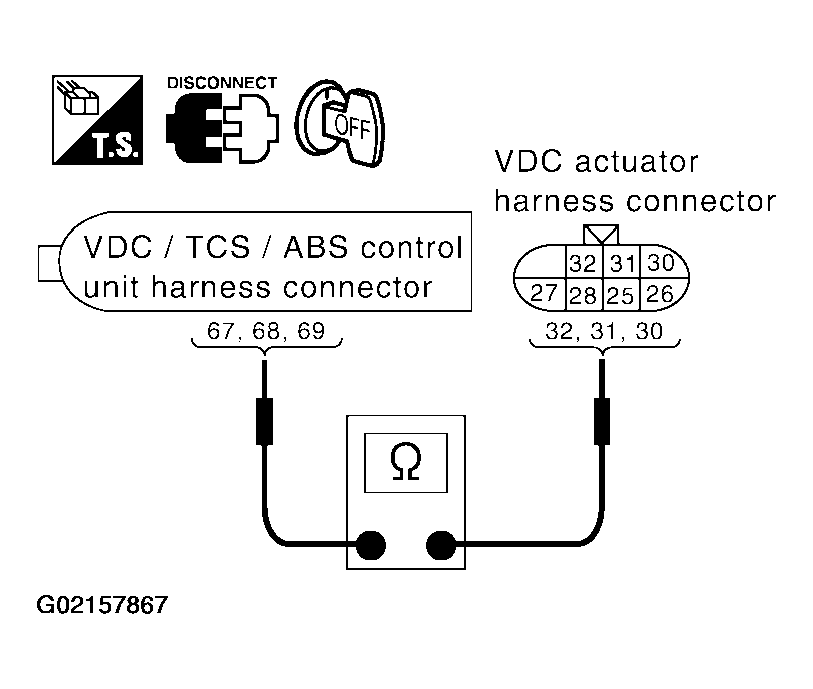

  Fig 3: Checking Continuity Between VDC/TCS/ABS Control Unit Harness Connector E118 And VDC Actuator (Pressure Sensor) Harness Connector E50
  Courtesy of NISSAN MOTOR CO., U.S.A.

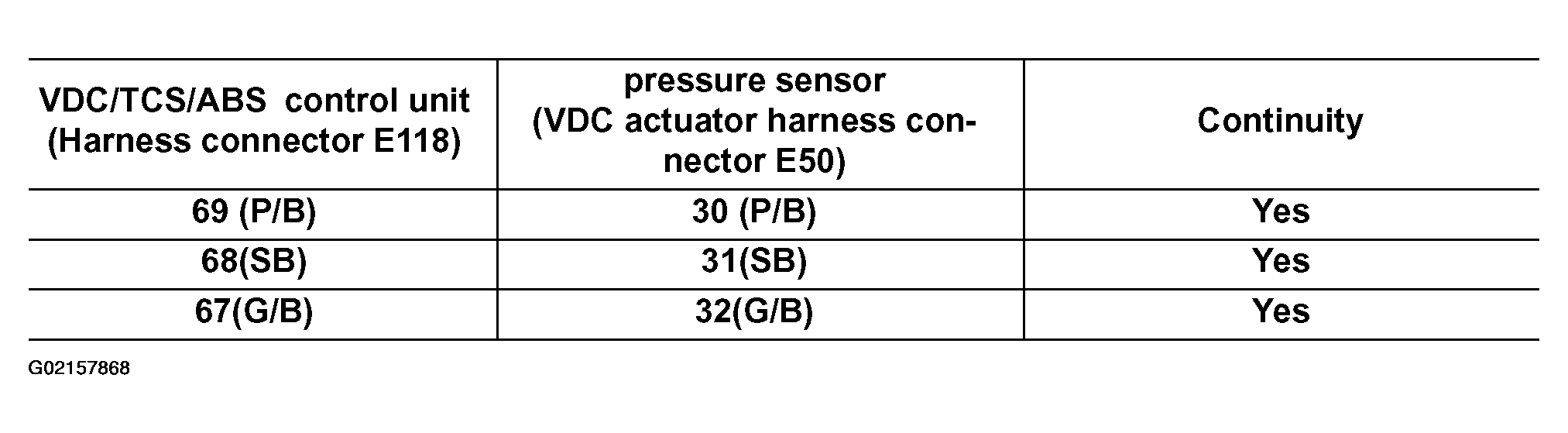

  Fig 4: Checking Pressure Sensor Circuit Condition Check Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 4.
2. NG : Open or short in harness. Repair or replace the suspect harness.
CHECKING PRESSURE SENSOR
1. Connect VDC actuator (pressure sensor).
2. Check pressure sensor value on "DATA MONITOR"

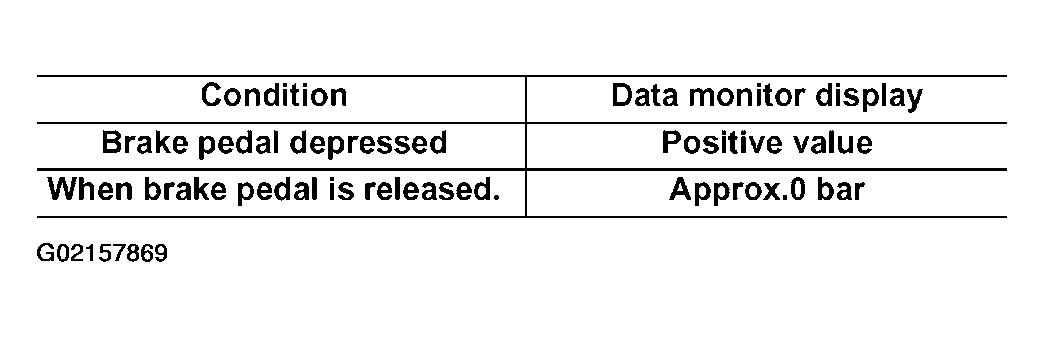

  Fig 5: Pressure Sensor Condition Check Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : INSPECTION END
2. NG : Pressure sensor malfunction. Replace VDC actuator (inside pressure sensor).
