Inspection 6: Yaw Rate/Side G-Sensor And Circuit Between Yaw Rate/Side G-Sensor And VDC/TCS/Abs Control Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Sudden turns (such as spin turns, acceleration turns), drifting, etc. When VDC function is OFF (VDC OFF SW ON) may cause yaw rate/side G-sensor system to indicate a malfunction. However, this is not a malfunction, if normal operation can be resumed after restarting engine. Then erase memory of self-diagnosis.

Inspection Procedure

CHECK SELF-DIAGNOSTIC RESULTS (1)
Check the self-diagnostic results.

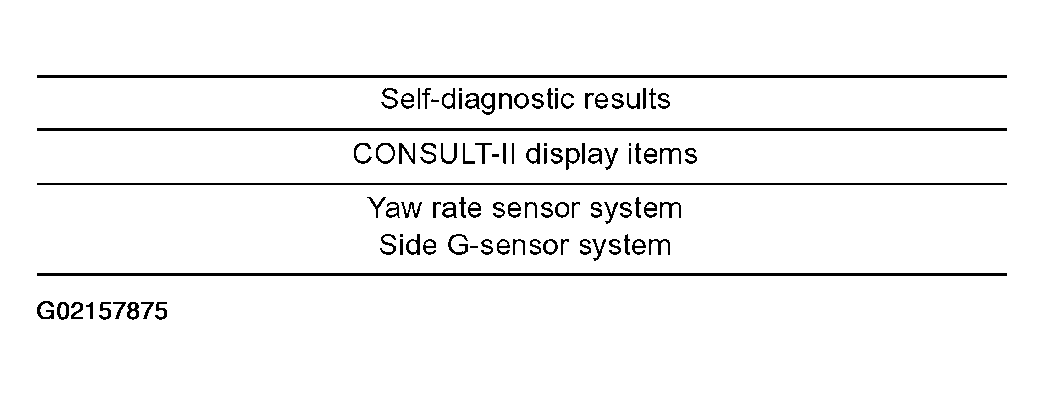

Fig 1: Self-Diagnostic Results Lists
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: If vehicle is on turn-table at entrance to parking garage, or on other moving surface, VDC OFF indicator lamp may illuminate and CONSULT-II self-diagnosis may indicate yaw rate sensor system malfunction. However, in this case there is no malfunction in yaw rate sensor system. Take vehicle off of turn-table or other moving surface, and start engine. Results will return to normal.

Do "YAW RATE SENSOR SYSTEM" and "SIDE G-SENSOR SYSTEM" appear on self-diagnosis display?
1. YES : GO TO 2.
2. NO : INSPECTION END

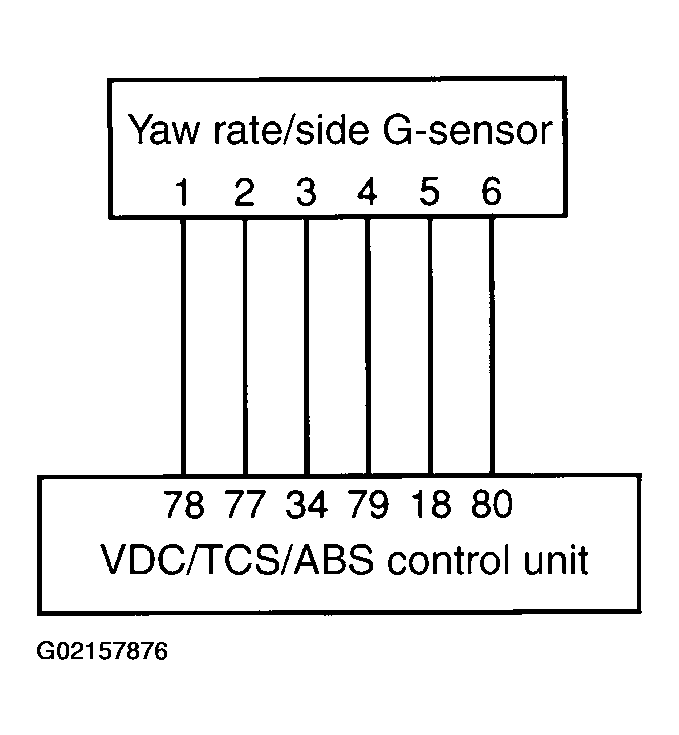

Fig 2: Checking Break Control System And Yaw Rate/Side G-Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SELF-DIAGNOSTIC RESULTS (2)
1. Turn ignition switch OFF and disconnect yaw rate/side G-sensor connector and VDC/TCS/ABS control unit connector.
2. Check continuity between VDC/TCS/ABS control unit harness connector E118 and yaw rate/side G-sensor harness connector M51.

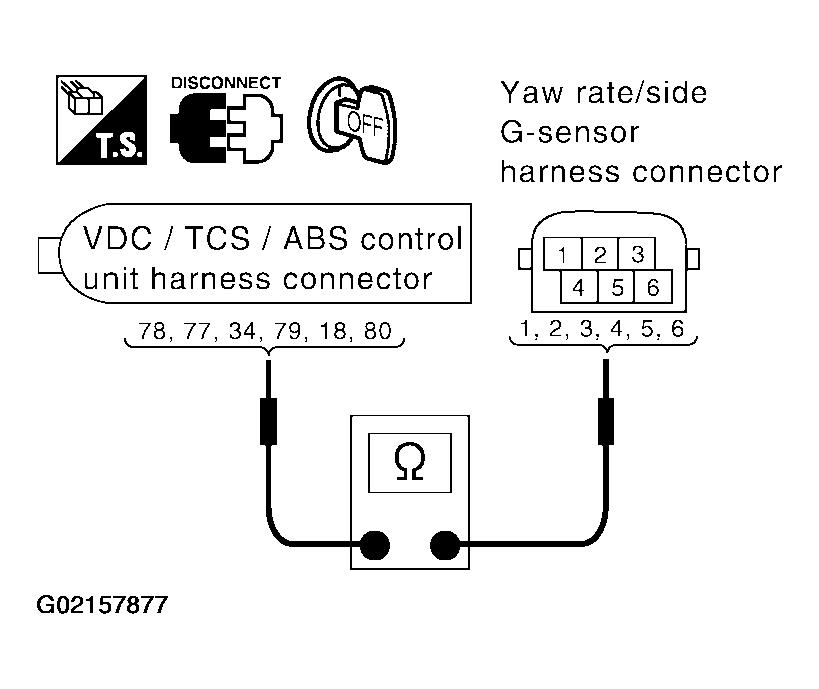

  Fig 3: Checking Continuity Between VDC/TCS/ABS Control Unit Harness Connector E118 And Yaw Rate/Side G-Sensor Harness Connector M51
  Courtesy of NISSAN MOTOR CO., U.S.A.

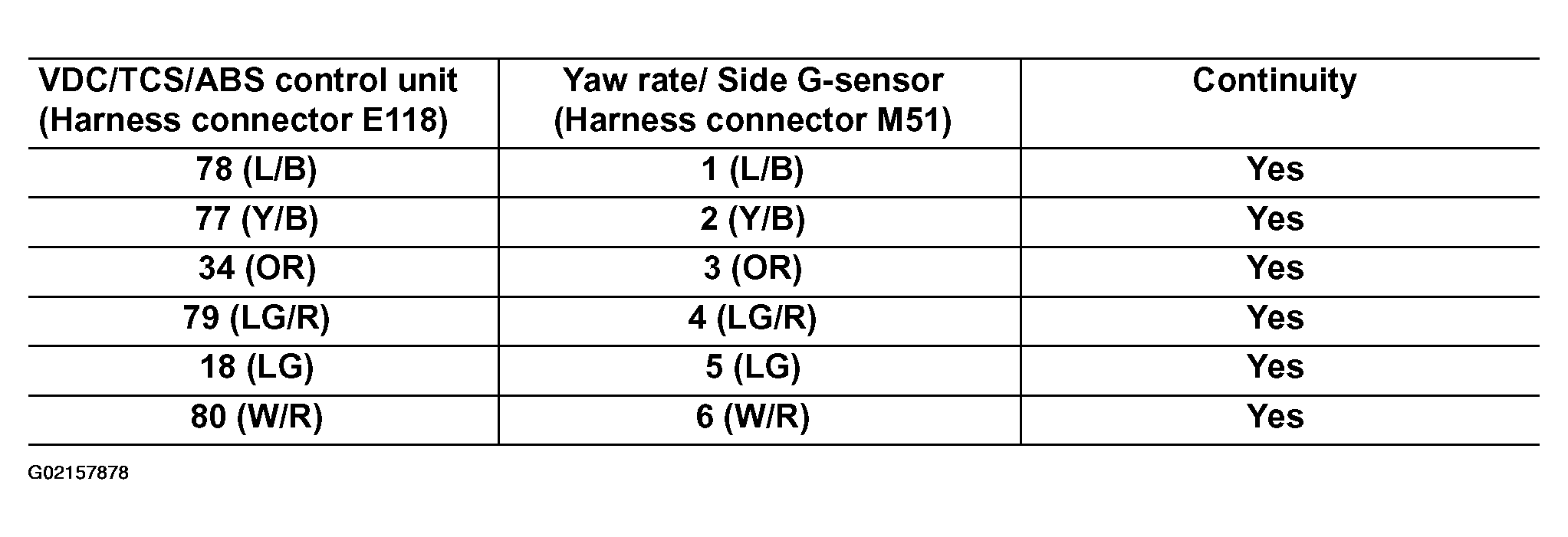

  Fig 4: Terminal Continuity Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 3.
2. NG : Open or short in harness. Repair or replace the suspect harness.
CHECK YAW RATE/SIDE G-SENSOR CIRCUIT
1. Connect VDC/TCS/ABS control unit connector and yaw rate/side G-sensor connector.
2. Check "DATA MONITOR" for yaw rate/side G-sensor. Make sure results are normal.

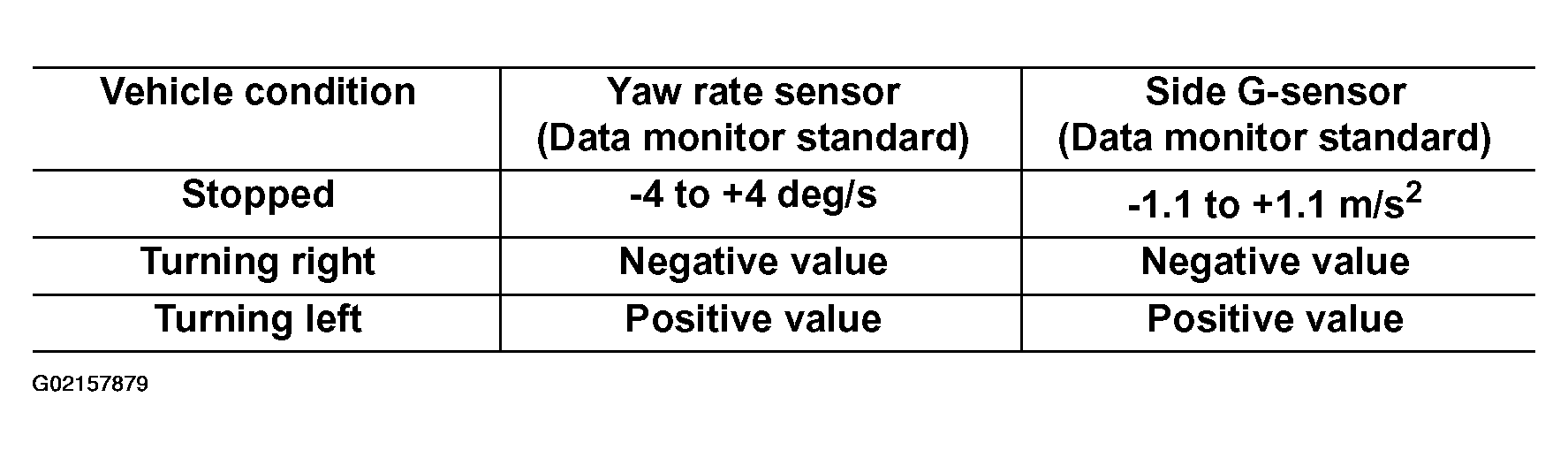

  Fig 5: VDC/TCS/ABS Control Unit Connector And Yaw Rate/Side G-Sensor Connector Condition Check Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Perform VDC/TCS/ABS control unit self-diagnosis again.
2. NG : Malfunction of yaw rate/side G-sensor. Replace yaw rate/side G-sensor and perform VDC/TCS/ABS control unit self-diagnosis again.
