Front Axle Parts

Check front axle and front suspension parts for excessive play, cracks, wear or other damage.

• Shake each front wheel to check for excessive play.

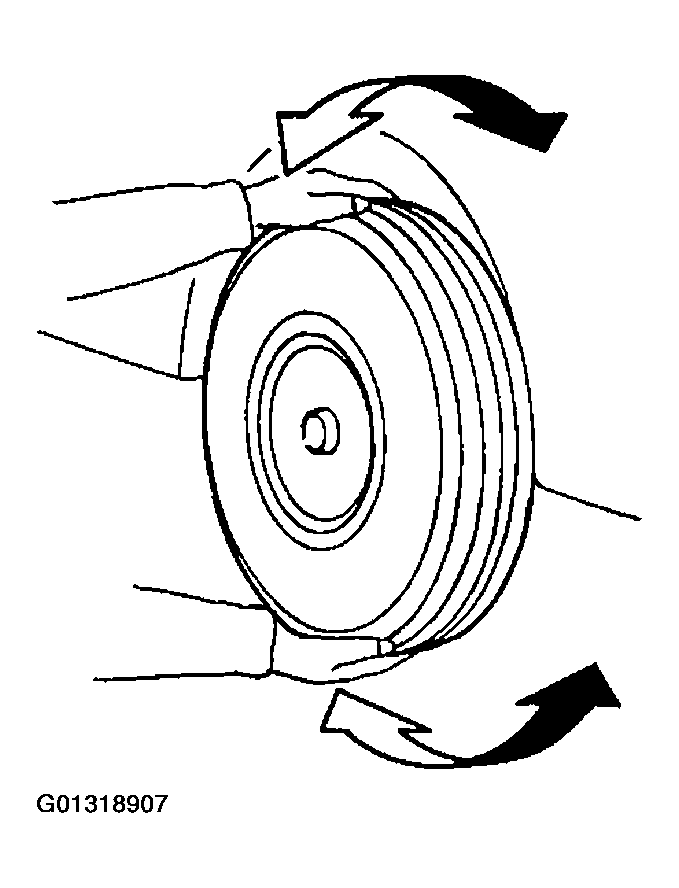

Fig 1: Shaking Each Front Wheel To Check For Excessive Play
Courtesy of NISSAN MOTOR CO., U.S.A.
• Make sure that the cotter pin is properly installed.
• Retighten all axle and suspension nuts and bolts to the specified torque.

  Tightening torque: Refer to "COMPONENTS"  .
