Sentra (1.8L)

NOTE: On Sentra 1.8L, check and adjust valve clearance with engine hot.

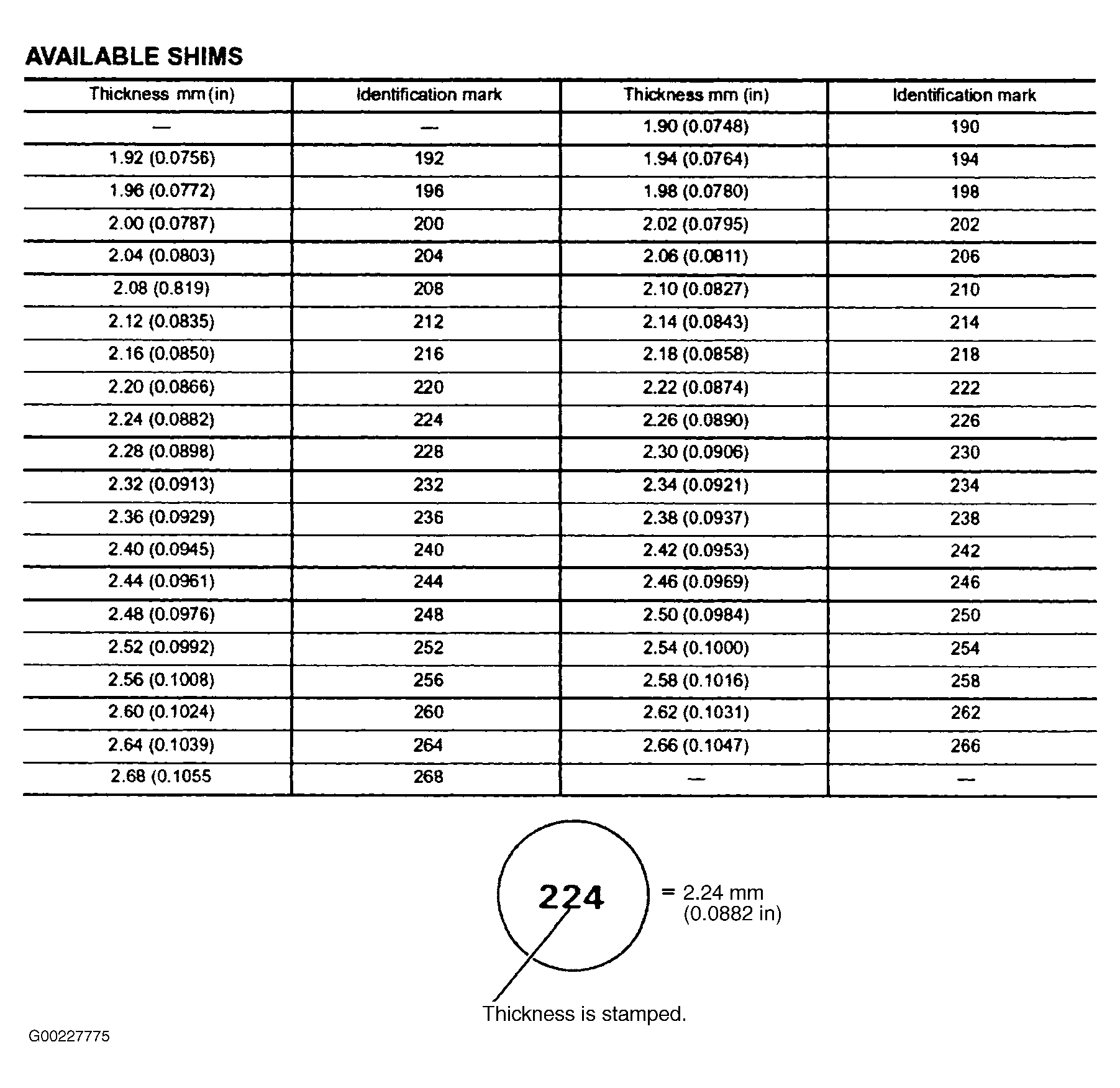

NOTE: For available shims, see Figure.

For valve clearance inspection, see Fig 1. For adjustment, see Fig 2 and Fig 3 .

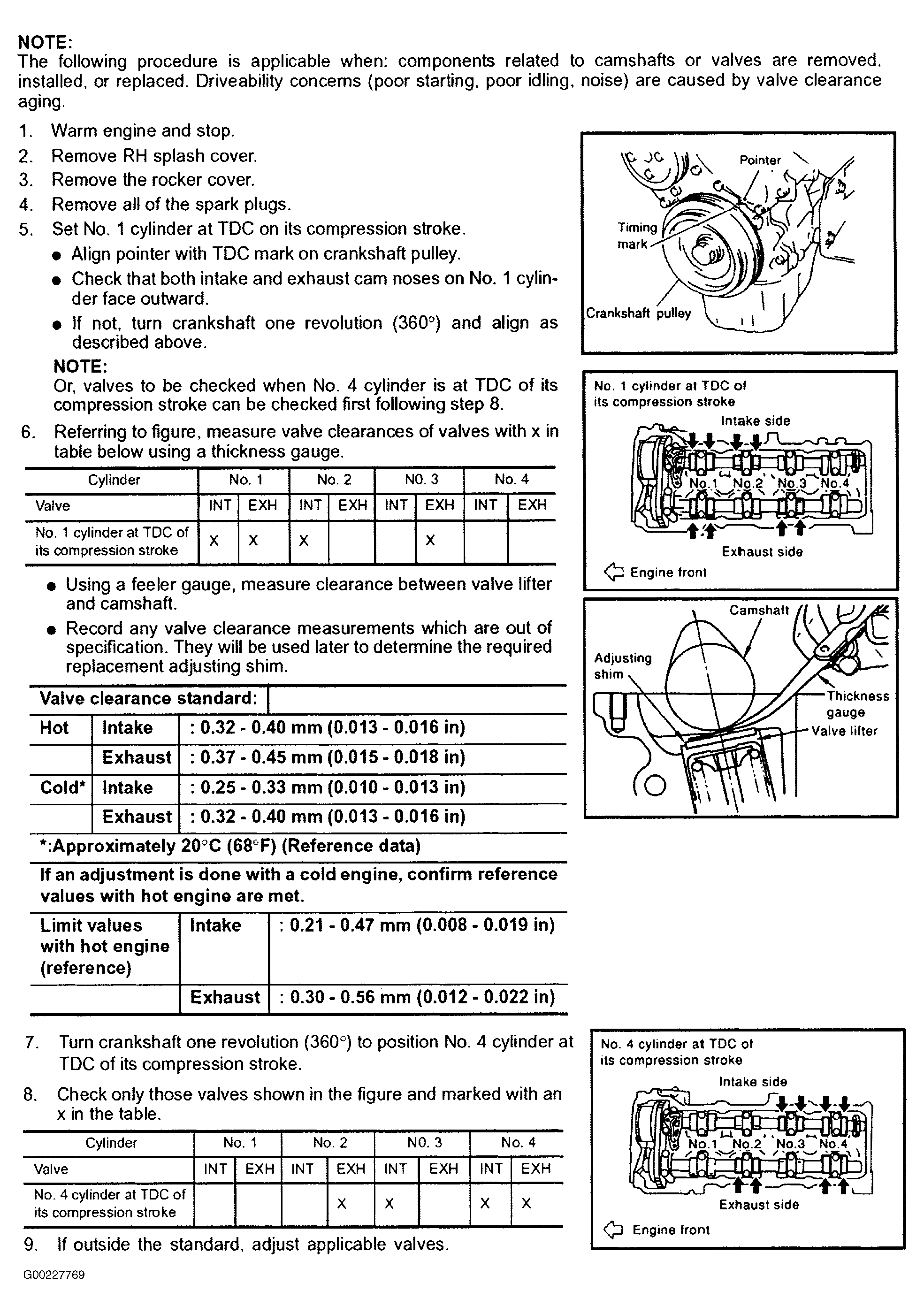

Fig 1: Inspecting Valve Clearance (Sentra 1.8L)

Courtesy of NISSAN MOTOR CO., U.S.A.

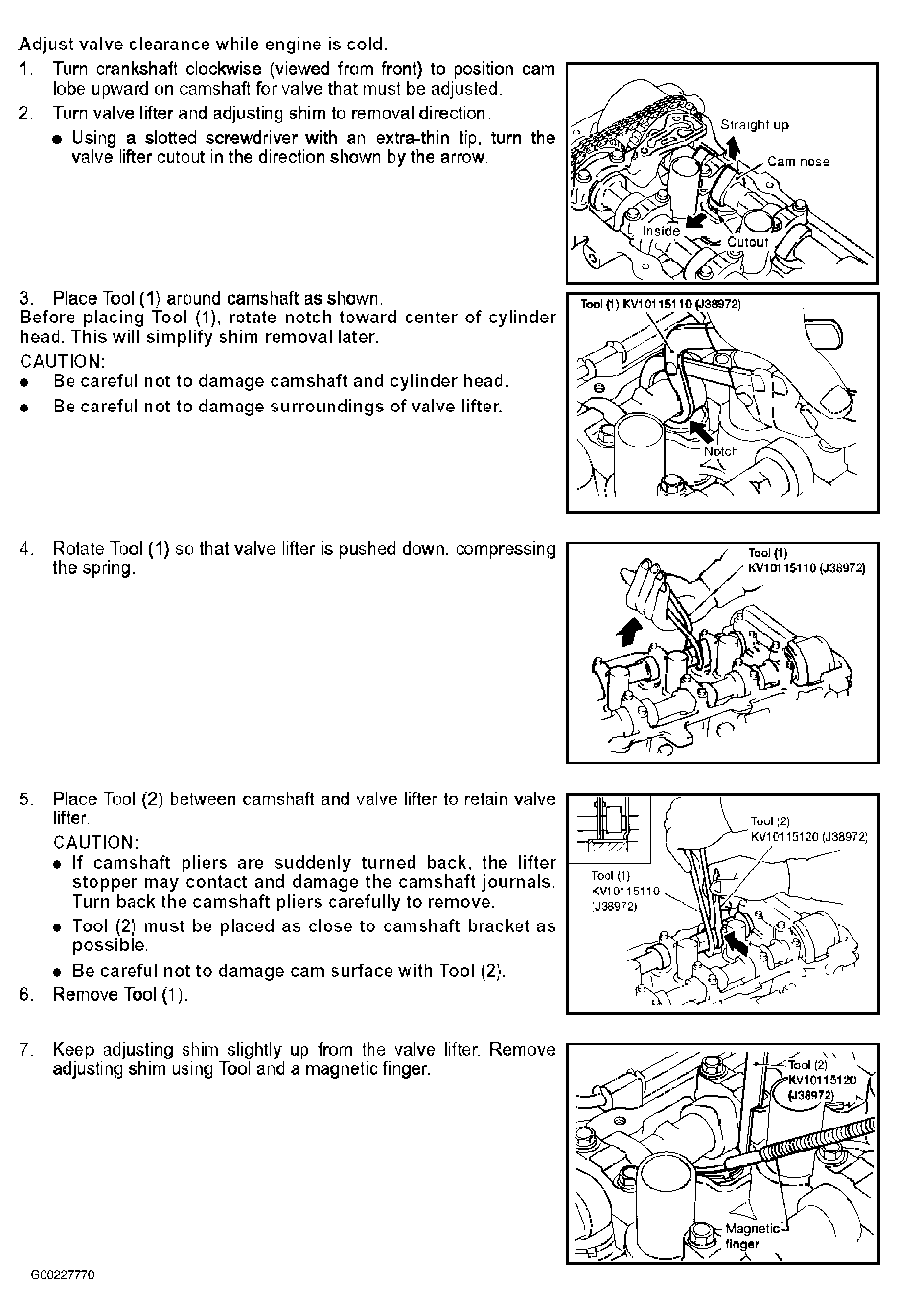

Fig 2: Adjusting Valves (Sentra 1.8L - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Adjusting Valves (Sentra 1.8L - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
