Rear Window Defogger Switch

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

With air control (rear window defogger switch) connector M32 disconnected, check continuity between terminals 3 and 5 when rear window defogger switch is pushed and released.

TERMINAL CONTINUITY

Terminals		Condition	Continuity
(+)	(-)	Switch pushed	Yes
3	5	Switch released	No

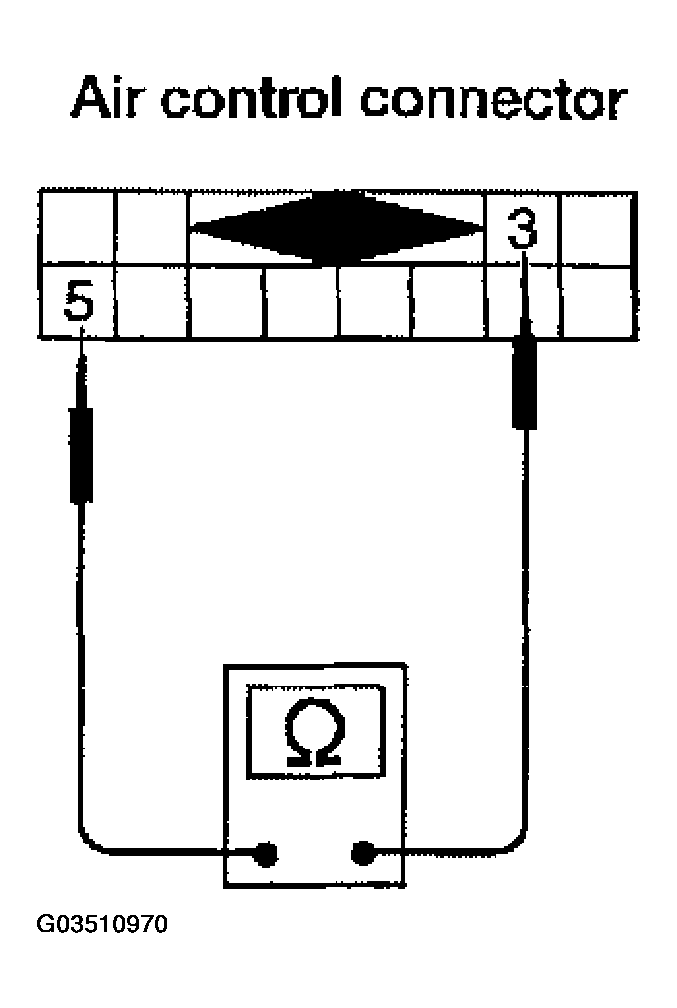

Fig 1: Checking Continuity Between Terminals 3 And 5

Courtesy of NISSAN MOTOR CO., U.S.A.
