Side Turn Signal Lamp: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FENDER LINER LH (See  REPLACEMENT  )
  2. REMOVE SIDE TURN SIGNAL LAMP LENS LH
    1. Remove a nut and disconnect the connector of side turn signal light.
    2. Remove the side turn signal light lens LH.

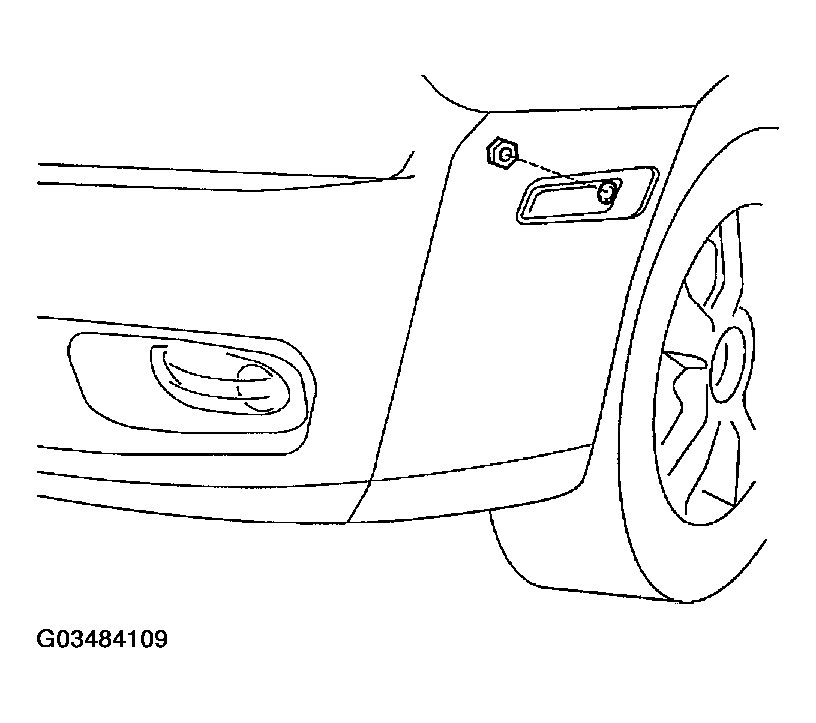

      Fig 1: Removing Nut And Disconnecting Connector Of Side Turn Signal Light
      G03484109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
