Changing Engine Oil

WARNING: This page is about a different car, the 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be careful not to get burn yourself, as engine oil may be hot.
Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.

Remove front engine undercover with power tool.
Warm up the engine, and check for engine oil leakage from engine components. Refer to "ENGINE OIL LEAKAGE ".
Stop the engine and wait for 10 minutes.
Loosen oil filler cap and then remove drain plug.
Drain engine oil.
Install drain plug with new washer. Refer to "OIL PAN AND OIL STRAINER ".
CAUTION: Be sure to clean drain plug and install with new washer.
1. Oil pan drain plug:
  1. : 34.3 N.m (3.5 kg-m, 25 ft-lb)
Refill with new engine oil.
Engine oil specification and viscosity:

Refer to "RECOMMENDED FLUIDS AND LUBRICANTS ".

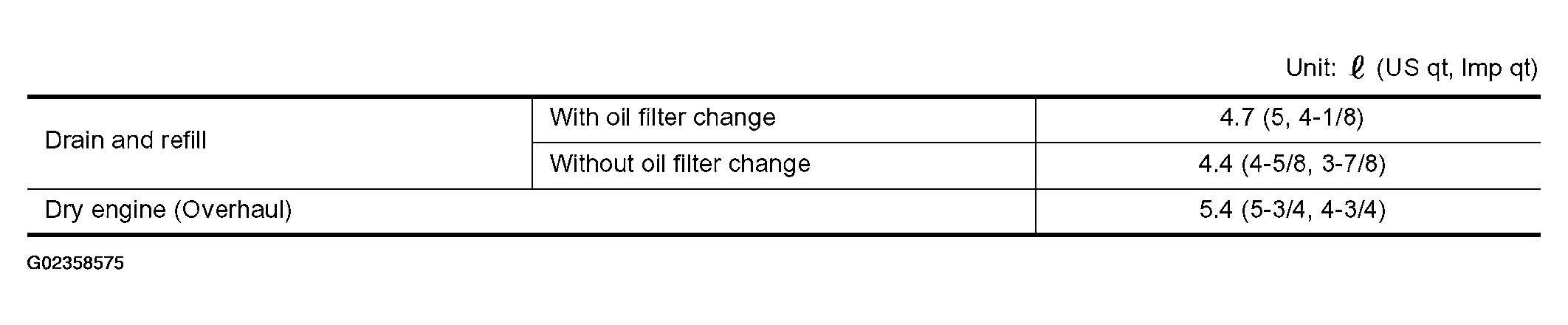

Engine oil capacity (Approximate):

Unit: l (US qt, Imp qt)

Fig 1: Engine Oil Capacity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When filling engine oil, do not pull out oil level gauge.
- The refill capacity depends on the engine oil temperature and drain time. Use these specifications for reference only.
- Always use oil level gauge to determine the proper amount of engine oil in engine.
Warm up the engine and check area around drain plug and oil filter for engine oil leakage.
Stop the engine and wait for 10 minutes.
Check the engine oil level. Refer to "ENGINE OIL LEVEL ".
