Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

When installing the transfer to the transmission, install the mounting bolts following the standard below.

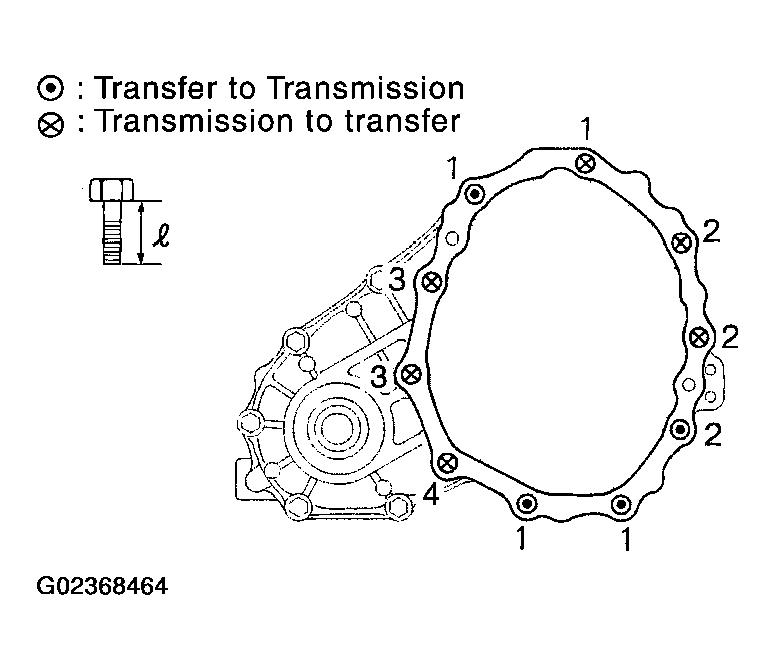

Fig 1: Identifying Bolt Installation Process
Courtesy of NISSAN MOTOR CO., U.S.A.

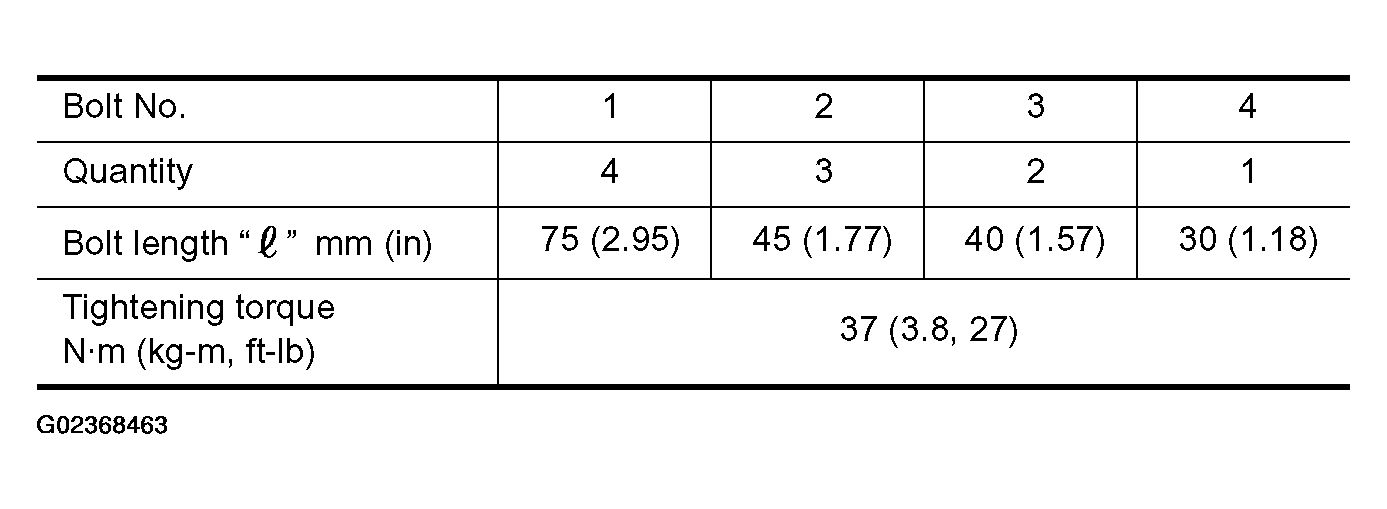

Fig 2: Bolt Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
After the installation, check the fluid level and for fluid leakage. Refer to "INSPECTION ".
